Velopedia Bicycle Archive

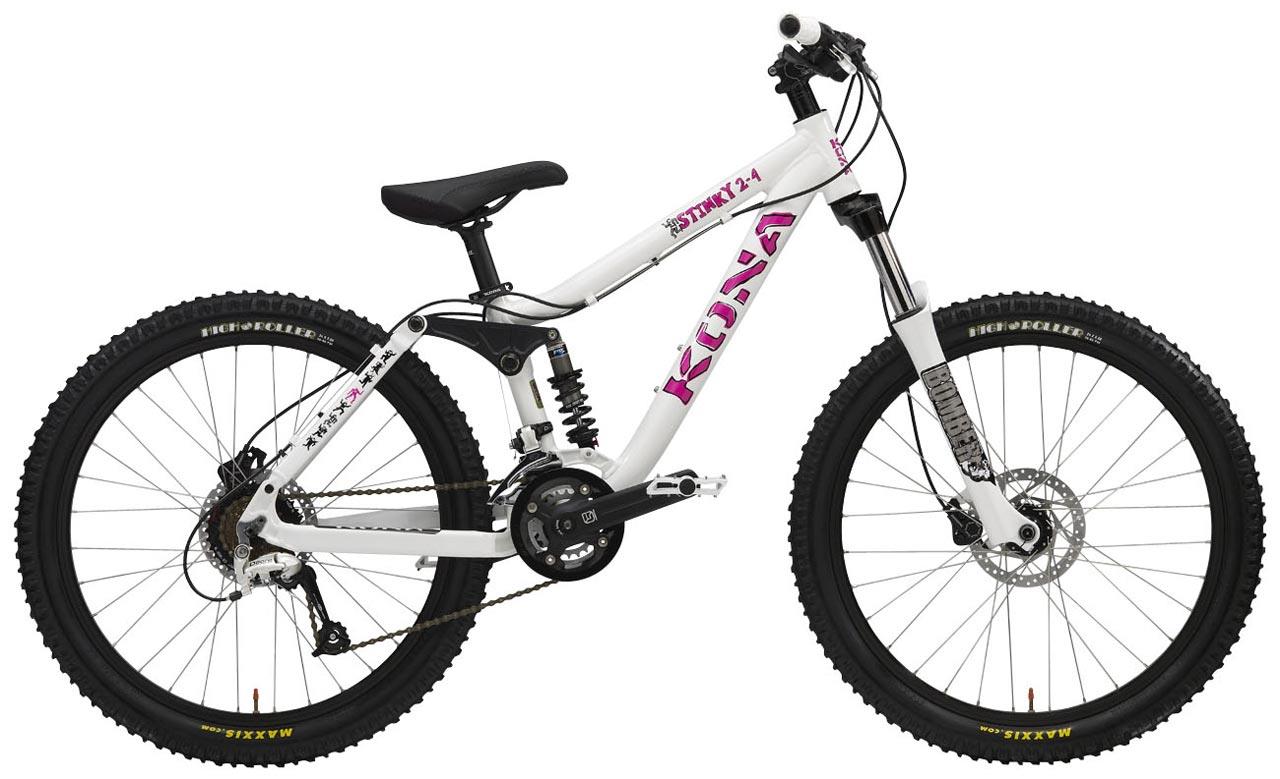

2009 Kona Stinky 2-4
Juvenile mountain bike, suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $1,499.00
- Sizes
- 13"
- Colors
- White
- Archive ID
- 16955
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Race Light 7005 Aluminum Butted |
| Fork | Marzocchi Dirt Jumper 2, 100mm travel |
| Fork Material | Single |
| Rear Shock | Fox Vanilla R, 4" travel |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano Acera Rapidfire |
| Front Derailleur | Shimano Deore |
| Rear Derailleur | Shimano Deore |
| Crankset | FSA Maximus, 22/32 teeth |
| Bottom Bracket | RPM ISIS DH |
| BB Shell Width | 68mm |
| Cassette | Shimano HG30 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | Shimano Altus |
| Pedals | Kona Jackshit Deluxe |
Brakes
| Brakes | Shimano M486 disc brakes, Shimano M486 hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA internal ZST-10 |
|---|---|
| Handlebar | Kona OB Riser |
| Handlebar Extensions | Not included |
| Stem | Kona OB |
| Saddle | Kona Dirt Jump |
| Seatpost | Kona XC/BC |
Wheels & Tires
| Hubs | Front: Formula disc, Rear: Shimano M475 disc |
|---|---|
| Rims | Alex DM-24 |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 24 x 2.50" Maxxis High Roller |
| Wheel Size | 24" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
