Velopedia Bicycle Archive

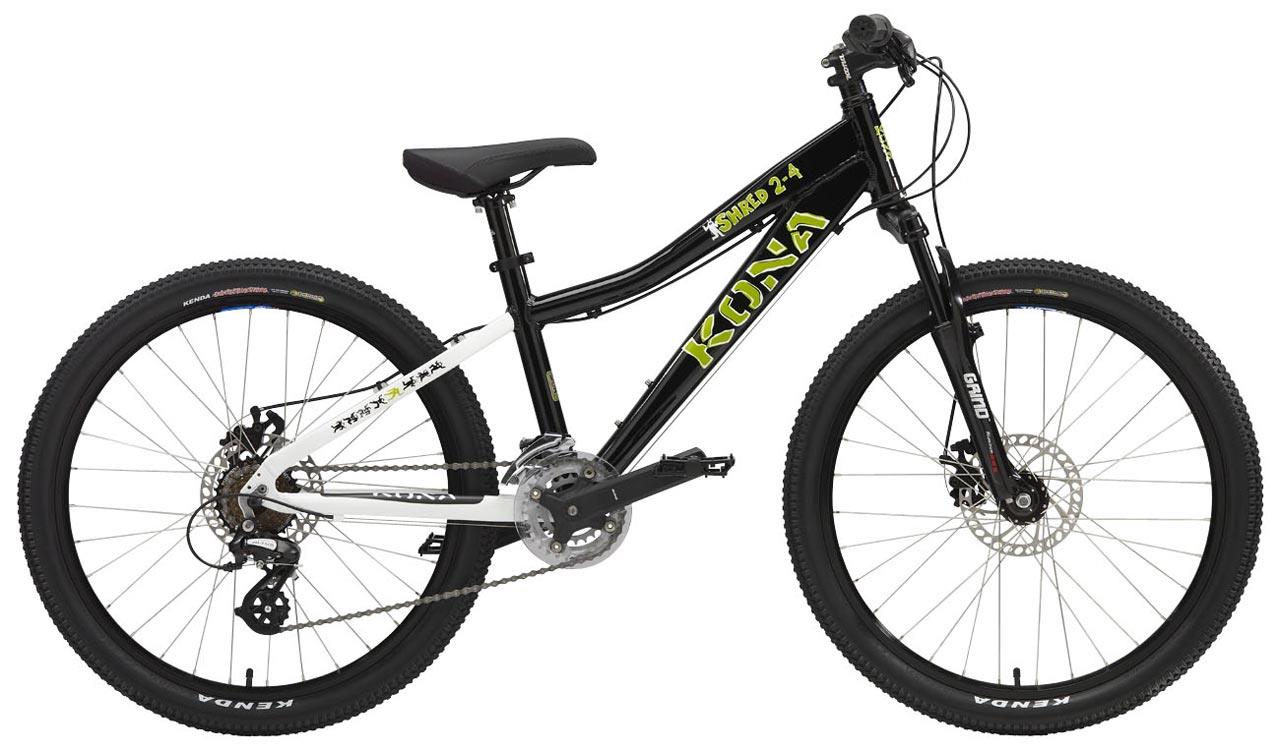

2009 Kona Shred 2-4
Juvenile mountain bike, suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $599.00
- Sizes
- 13"
- Colors
- Black/White
- Archive ID
- 16957
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Kona Clump 7005 Aluminum |
| Fork | Spinner Grind 1, 80mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano EZ-Fire |
| Front Derailleur | Shimano Altus |
| Rear Derailleur | Shimano Altus |
| Crankset | FSA Step Up, 22/32 teeth |
| Bottom Bracket | RPM ISIS DH |
| BB Shell Width | 68mm |
| Cassette | Shimano Tourney |
| Rear Cogs | 7-speed, 14 - 28 teeth |
| Chain | Shimano UG51 |
| Pedals | Kona Jackshit |
Brakes
| Brakes | Hayes MX-4 disc brakes, Shimano EZ-Fire levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" TH |
|---|---|
| Handlebar | Kona XC/BC |
| Handlebar Extensions | Not included |
| Stem | Kona Clump |
| Saddle | Kona Dirt Jump |
| Seatpost | Kona Thumb |
Wheels & Tires
| Hubs | Formula disc |
|---|---|
| Rims | Rigida ZAC-19SL |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 24 x 2.10" Kenda Small Block Eight |
| Wheel Size | 24" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
