Lowest0.65:1
Highest4.00:1
Total range618%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2; rear size isn’t listed.
Velopedia Bicycle Archive

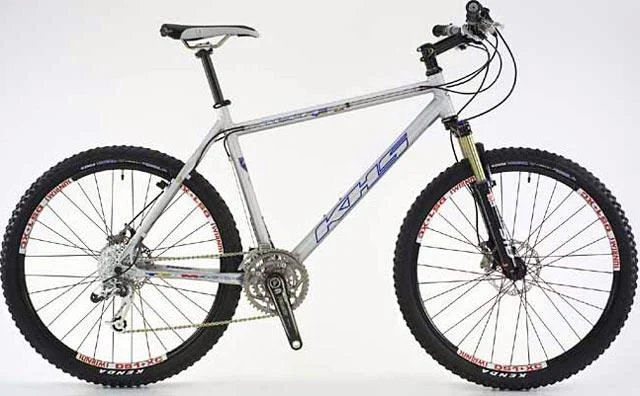

2005 KHS Alite 4000
Original specifications: SRAM X9 · 9-speed · mechanical rear derailleur · 26" wheels · 20.5 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #10198- Model year
- 2005
- Category
- Mountain
- Original MSRP
- $2,399.00
- Sizes
- 15", 17", 19", 21"
- Colors
- Gray
- Weight
- 20.5 lb
- In this record
- 26 specifications · archived image · original MSRP
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2005 archived details
- Published colors
- Gray
- Frame
- AN6 aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAN6 aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | AN6 aluminum |
| Fork | Fox F80X, 80mm travel |
| Fork Material | Aluminum/magnesium, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SRAM X.9 |
| Front Derailleur | SRAM X-Gen |
| Rear Derailleur | SRAM X.9 |
| Crankset | TruVativ Stylo Team, 22/32/44 teeth |
| Bottom Bracket | TruVativ Giga X Drive |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | KMC Z9200, 1/2 x 3/32" |
| Pedals | Wellgo WAM-M3 |
Brakes
| Brakes | Avid Single Digit SL brakes, Avid Speed Dial 7 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA Orbit DL |
|---|---|
| Handlebar | Easton Carbon MonkeyLite |
| Handlebar Extensions | Not included |
| Stem | Easton EA70 |
| Saddle | V2 carbon shell |
| Seatpost | Carbon fiber |
Wheels & Tires
| Hubs | WTB Laser Disc Lite |
|---|---|
| Rims | WTB Laser Beam XC, 32-hole |
| Spokes | WTB stainless steel, 14/15ga. (2.0/1.8mm) double-butted |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.00" Kenda Karma Kevlar |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Wellgo WAM-M3
SRAM X.9
More parts (6)Fewer parts
SRAM X.9
Easton Carbon MonkeyLite
Easton EA70
1 1/8" threadless FSA Orbit DL
WTB Laser Beam XC
32-hole
WTB Laser Disc Lite
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.00" Kenda Karma Kevlar
- Drivetrain
- 9-speed
- Bottom bracket / shell
- TruVativ Giga X Drive
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Fox F80X, 80mm travel · Aluminum/magnesium, single crown
Suspension
Evaluate the suspension →Archived: Fork: Fox F80X, 80mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: SRAM X.9 · Front derailleur: SRAM X-Gen · Rear derailleur: SRAM X.9 · Crankset: TruVativ Stylo Team, 22/32/44 teeth · Bottom bracket: TruVativ Giga X Drive · Rear cogs: 9-speed, 11 - 34 teeth · Chain: KMC Z9200, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Avid Single Digit SL brakes, Avid Speed Dial 7 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: WTB Laser Beam XC, 32-hole · Hubs: WTB Laser Disc Lite · Front tire: 26 x 2.00" Kenda Karma Kevlar
Controls and contact points
Archived: Headset: 1 1/8" threadless FSA Orbit DL · Handlebar: Easton Carbon MonkeyLite · Stem: Easton EA70 · Seatpost: Carbon fiber · Saddle: V2 carbon shell · Pedals: Wellgo WAM-M3
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Market Snapshot
Checked Nov 6, 2026We may earn a commission from purchases through these eBay links.
KHS Alite 4000 XC MTB Hardtail Alloy Medium XTR RockShox SID
Used · Fixed price · offers accepted · USD 150.00
Seller size: 26 in
Model year not confirmed
KHS Alite 4000 XC MTB Hardtail Alloy Medium XTR RockShox SID
Used · Fixed price · offers accepted · USD 799.99
Seller size: Medium
Shipping shown: $125.00; confirm for your destination.
Model year not confirmed
Asking prices, not completed sales. Shipping and tax excluded.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
