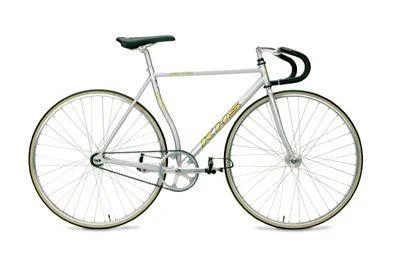

1999 KHS Aero Track

Original specifications: Track Mix drivetrain · 700c wheels · 19.4 lb published weight.

Share owner experience

At a glance

Archive #87541

Model year: 1999
Category: Track
Original MSRP: $699.00
Sizes: S, M, L
Colors: Orange
Weight: 19.4 lb
Geometry: Legacy reference
In this record: 22 specifications · archived image · original MSRP · geometry

Model history 4 other years

Browse other years

Compare side by side

Identification clues

1999 archived details

Published colors: Orange
Frame: Chromoly, double-butted
Original equipment: Track Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildChromoly, double-butted · Track Mix · 700c wheels

Manufacturer catalog

Published sizes and colors

3 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SML

Published colors

Orange

Frameset

Frame Construction	TIG-welded
Frame Material	Chromoly, double-butted
Fork	Khs
Fork Material	Chromoly, oversize, flat crown

Drivetrain

Component Group	Track Mix
Crankset	Sugino 75, 48 teeth
Bottom Bracket	Tien Hsin TH-7418 AL sealed cartridge, 107mm spindle
BB Shell Width	68mm English
Rear Cogs	1-speed, 16 teeth
Chain	KMC Z-30, 1/2 x 3/32"
Pedals	Aluminum w/clips & straps

Cockpit & Contact Points

Headset	1" Tien Hsin TH-3600 W
Handlebar	Aluminum, drop style
Stem	Forged alloy
Saddle	Velo VL-237-3
Seatpost	Kalloy SP-399, 26.8mm diameter

Wheels & Tires

Hubs	Aluminum, nutted
Rims	HJC P-GN aluminum, 36-hole
Spokes	Shuhn Lih stainless steel, 2.0mm straight gauge
Spoke Nipples	Brass nipples
Front Tire	700 x 23c Panaracer Elite
Wheel Size	700c wheels

Geometry

Legacy reference · 6 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 6 measurements

Measurement	Legacy reference
Top tube	570 mm
Head-tube angle	74°
Seat-tube angle	75°
Chainstay / rear center	401 mm
Wheelbase	953 mm
Fork offset / rake	28 mm

Frame size not recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

All published sizes48T · 16T · 1-speed

Ratio3.00:1

Estimated speed At 90 RPM Gear21.1 mph

Uses front tire 700C×23; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

700 x 23c Panaracer Elite

Search Amazon Search eBay

Retailer offers

Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23

700x23c

Replacement option

Competitive Cyclist ↗$41.10

Chain · Original

KMC Z-30

1/2 x 3/32"

Search Amazon Search eBay

Seatpost · Original

Kalloy SP-399

26.8mm diameter

Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 700 x 23c Panaracer Elite
Drivetrain: 1-speed
Seatpost diameter: 26.8 mm
Bottom bracket / shell: Tien Hsin TH-7418 AL sealed cartridge, 107mm spindle · 68mm English

Equipment inspection checks 9 checks based on 4 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: KHS · Chromoly, oversize, flat crown

Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Group: Track Mix · Crankset: Sugino 75, 48 teeth · Bottom bracket: Tien Hsin TH-7418 AL sealed cartridge, 107mm spindle · Rear cogs: 1-speed, 16 teeth · Chain: KMC Z-30, 1/2 x 3/32"

Check chain tension and chainline, rotate the drivetrain through a full revolution and confirm the rear axle or tensioning hardware cannot slip.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 700c wheels · Rims: HJC P-GN aluminum, 36-hole · Hubs: Aluminum, nutted · Front tire: 700 x 23c Panaracer Elite

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Controls and contact points

Archived: Headset: 1" Tien Hsin TH-3600 W · Handlebar: Aluminum, drop style · Stem: Forged alloy · Seatpost: Kalloy SP-399, 26.8mm diameter · Saddle: Velo VL-237-3 · Pedals: Aluminum w/clips & straps

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
