Lowest1.00:1
Highest4.91:1
Total range491%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×1.5; rear size isn’t listed.
Velopedia Bicycle Archive

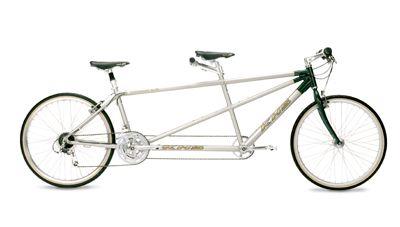

1998 KHS Tandemania Alite
Original specifications: Shimano Deore XT · 7-speed · mechanical rear derailleur · 26" wheels · 38.5 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #78082- Model year
- 1998
- Category
- Tandem
- Original MSRP
- $1,699.00
- Sizes
- Captain 20"/stoker 18"
- Colors
- Blue/titanium
- Weight
- 38.5 lb
- Geometry
- Legacy reference
- In this record
- 27 specifications · archived image · original MSRP · geometry
Model history 11 other years
Browse other years
Compare side by side
Identification clues
1998 archived details
- Published colors
- Blue/titanium
- Frame
- 7005 aluminum
- Original equipment
- Tandem Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 aluminum · Tandem Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum |
| Fork | Spinner |
| Fork Material | Chromoly, oversize, unicrown crown |
Drivetrain
| Component Group | Tandem Mix |
|---|---|
| Shifters | Sachs Power Grip Plus Wavey |
| Front Derailleur | Sachs New Success, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Deore XT SGS |
| Crankset | Tracer SRX, 28/44/54 teeth |
| Bottom Bracket | Shimano BB-UN52 |
| BB Shell Width | 68mm English |
| Rear Cogs | 7-speed, 11 - 28 teeth |
| Chain | KMC Z-51, 1/2 x 3/32" |
| Pedals | Victor VP-338A |
Brakes
| Brakes | Shimano Deore LX V-Brakes/Arai drum brakes, Shimano Deore LX levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Tioga |
|---|---|
| Handlebar | Kalloy |
| Handlebar Extensions | Not included |
| Stem | Power Tools |
| Saddle | Velo VL-229 |
| Seatpost | Polygon PM-312, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: King Kong 210, Rear: Shimano Tandem CX |
|---|---|
| Rims | Sun Rims Rhyno, 40-hole |
| Spokes | Shuhn Lih stainless steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 1.50" Duro HF-105 |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 577 mm |
| Head-tube angle | 74° |
| Seat-tube angle | 73° |
| Chainstay / rear center | 440 mm |
| Wheelbase | 1789 mm |
| Fork offset / rake | 54 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Polygon PM-312
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
26 x 1.50" Duro HF-105
Replacement search: 26x1.5 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (2)Fewer parts
Shimano BB-UN52
Shimano Deore XT SGS
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 1.50" Duro HF-105
- Drivetrain
- 7-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano BB-UN52 · 68mm English
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Spinner · Chromoly, oversize, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Group: Tandem Mix · Shifters: Sachs Power Grip Plus Wavey · Front derailleur: Sachs New Success, top-pull/clamp-on 31.8mm · Rear derailleur: Shimano Deore XT SGS · Crankset: Tracer SRX, 28/44/54 teeth · Bottom bracket: Shimano BB-UN52 · Rear cogs: 7-speed, 11 - 28 teeth · Chain: KMC Z-51, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano Deore LX V-Brakes/Arai drum brakes, Shimano Deore LX levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Sun Rims Rhyno, 40-hole · Hubs: Front: King Kong 210, Rear: Shimano Tandem CX · Front tire: 26 x 1.50" Duro HF-105
Controls and contact points
Archived: Headset: 1 1/8" threadless Tioga · Handlebar: Kalloy · Stem: Power Tools · Seatpost: Polygon PM-312, 27.2mm diameter · Saddle: Velo VL-229 · Pedals: Victor VP-338A
