Lowest1.86:1
Highest4.82:1
Total range259%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

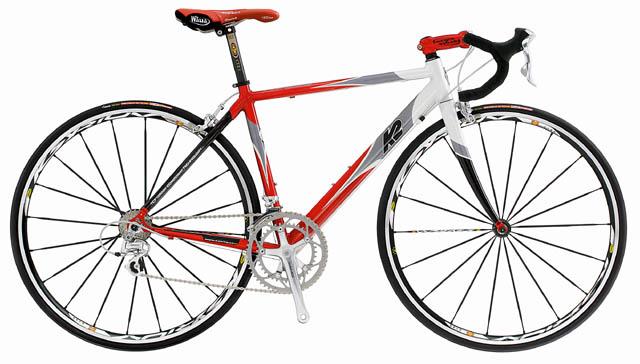

2001 K2 Mod 5.0
Original specifications: Shimano Dura-Ace drivetrain · 700c wheels · 17 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #35341- Model year
- 2001
- Category
- Road
- Original MSRP
- $3,399.00
- Sizes
- S, M, L
- Colors
- Pearl White and Red two-toned
- Weight
- 17 lb
- Geometry
- Legacy reference
- In this record
- 25 specifications · archived image · original MSRP · geometry
Model history 4 other years
Browse other years
Compare side by side
Identification clues
2001 archived details
- Published colors
- Pearl White and Red two-toned
- Frame
- 7005 aluminum, butted
- Original equipment
- Shimano Dura-Ace
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 aluminum, butted · Shimano Dura-Ace · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum, butted |
| Fork | K2 |
| Fork Material | Carbon fiber monocoque w/aluminum steer tube, aero crown |
Drivetrain
| Component Group | Shimano Dura-Ace |
|---|---|
| Shifters | Shimano Dura-Ace STI Dual Control |
| Front Derailleur | Shimano Dura-Ace |
| Rear Derailleur | Shimano Dura-Ace |
| Crankset | Shimano Dura-Ace, 39/53 teeth |
| Bottom Bracket | Shimano BB-7700 |
| Rear Cogs | 9-speed, 11 - 21 teeth |
| Chain | Shimano Dura-Ace, 1/2 x 3/32" |
| Pedals | Not included |
Brakes
| Brakes | Shimano Dura-Ace Dual Pivot brakes, Shimano Dura-Ace STI Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | Cane Creek ZS-2 |
|---|---|
| Handlebar | 3T Prima 199 |
| Handlebar Extensions | Not included |
| Stem | 3T Forgie |
| Saddle | Selle Italia Flite Gel, titanium rails |
| Seatpost | Easton CT2 |
Wheels & Tires
| Hubs | Mavic Ksyrium SSC |
|---|---|
| Rims | Mavic Ksyrium SSC |
| Spokes | Mavic stainless steel |
| Front Tire | 700 x 23c Vittoria Open Corsa |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 5 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 551.2 mm |
| Head-tube angle | 73° |
| Seat-tube angle | 74° |
| Chainstay / rear center | 408.9 mm |
| Wheelbase | 988.1 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
