Velopedia Bicycle Archive

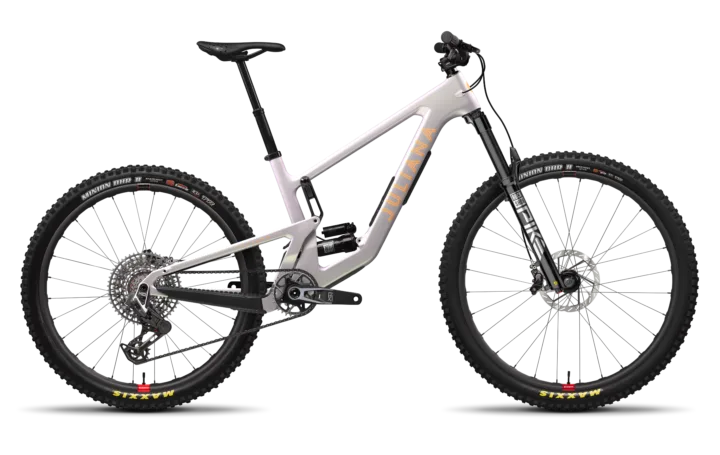

2024 Juliana Furtado X0 AXS
Original specifications: 29″ front / 27.5″ rear wheels · 30.15 lbs / 13.68 kg published weight · geometry for 3 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900000307- Model year
- 2024
- Category
- Mountain
- Original MSRP
- $7,999.00
- Sizes
- XS, S, M
- Colors
- Matte Lavender Luster
- Weight
- 30.15 lbs / 13.68 kg
- Geometry
- 3 manufacturer sizes
- In this record
- 22 specifications · 2 archived images · original MSRP · geometry
Original buildCarbon Fiber · Mx
Frameset
| Frame Construction | Carbon CC Frame |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | RockShox Pike Ultimate, 140mm |
| Rear Shock | RockShox Super Deluxe Ultimate, 210x50 |
Drivetrain
| Shifters | SRAM AXS Pod Bridge |
|---|---|
| Rear Derailleur | SRAM X0 Eagle AXS T-Type, 12spd |
| Crankset | SRAM X0 Eagle DUB T-Type Crankset, 32t |
| Bottom Bracket | SRAM DUB 73mm MTB Wide BB |
| BB Shell Width | 73mm Threaded |
| Cassette | SRAM X0 Eagle T-Type, 10-52t |
| Chain | SRAM X0 Eagle T-Type, Flattop, 12spd |
Brakes
| Brakes | SRAM Code Silver Stealth |
|---|
Cockpit & Contact Points
| Headset | Cane Creek 40 IS Integrated Headset |
|---|---|
| Handlebar | Santa Cruz 20 Carbon Bar, 760mm |
| Stem | Burgtec Enduro MK3, 42mm |
| Saddle | Juliana Carbon Saddle |
| Seatpost | OneUp V2 Dropper Post, 31.6 -or- RockShox Reverb Stealth -or- Fox Transfer |
Wheels & Tires
| Hubs | (F) Industry Nine 1/1, 15x110, Torque Cap, 6-Bolt, 28h -OR- DT Swiss 350, 15x110, 6-Bolt, 28h / (R) Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h -OR- DT Swiss 350, 12x148, 6-Bolt, 28h |
|---|---|
| Rims | (F) RaceFace ARC Offset 30 29" / (R) RaceFace ARC Offset 30 27.5" |
| Front Tire | Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO |
| Rear Tire | Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO |
| Wheel Size | Mx |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Reference drawing
Select an available measurement to locate it on the frame.
All geometry measurements3 sizes · 13 measurements
| Measurement | XS | S | M |
|---|---|---|---|
| Seat tube | 370 mm | 380 mm | 405 mm |
| Top tube | 544/544 | 570/571 | 598/599 |
| Head tube | 90 mm | 100 mm | 115 mm |
| Head-tube angle | 65.2/64.9 | 65.2/64.9 | 65.2/64.9 |
| Seat-tube angle | 77.4/77.1 | 77.4/77.1 | 77.4/77.1 |
| Chainstay / rear center | 428/429 | 430/431 | 433/434 |
| Wheelbase | 1147/1147 | 1178/1178 | 1212/1213 |
| Bottom-bracket drop | 35/38 | 35/38 | 35/38 |
| Bottom-bracket height | 338/335 | 338/335 | 338/334 |
| Reach | 410/406 | 434/431 | 459/456 |
| Stack | 599/601 | 608/610 | 622/624 |
| Standover height | 694/688 | 703/698 | 706/700 |
| Front center | 719/718 | 748/748 | 779/779 |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Flattop, 12spd

SRAM X0 Eagle Transmission 12-Speed Chain Dark Polar, 126 links
Specification match
10-52t

SRAM XS-1295 X0 Eagle Transmission 12-Speed Cassette Black, 10-52t
Specification match
3C MaxxGrip, EXO

Maxxis Minion DHR II Wide Trail 3C/EXO/TR 29in Tire Maxx Grip/3C/EXO, 29x2.4
Model match
More parts (6)Fewer parts
3C MaxxTerra, EXO

Vittoria Mazza XC-Trail 27.5in Tire Anthracite/Black, XC-Trail/TNT, 27.5x2.4
Replacement option
12spd

SRAM X0 Eagle AXS Transmission Rear Derailleur Black, 52T Max
Specification match
32t
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO
- Rear tire
- Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO
- Drivetrain
- 12-speed
- Bottom bracket / shell
- SRAM DUB 73mm MTB Wide BB · 73mm Threaded
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon CC Frame · Fork: RockShox Pike Ultimate, 140mm
Suspension
Evaluate the suspension →Archived: Fork: RockShox Pike Ultimate, 140mm · Rear shock: RockShox Super Deluxe Ultimate, 210x50
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM AXS Pod Bridge · Rear derailleur: SRAM X0 Eagle AXS T-Type, 12spd · Crankset: SRAM X0 Eagle DUB T-Type Crankset, 32t · Bottom bracket: SRAM DUB 73mm MTB Wide BB · Cassette: SRAM X0 Eagle T-Type, 10-52t · Chain: SRAM X0 Eagle T-Type, Flattop, 12spd
Brakes
Inspect the brakes →Archived: Brakes: SRAM Code Silver Stealth
Wheels and tires
Check wheels and tires →Archived: Wheel size: MX · Rims: (F) RaceFace ARC Offset 30 29" / (R) RaceFace ARC Offset 30 27.5" · Hubs: (F) Industry Nine 1/1, 15x110, Torque Cap, 6-Bolt, 28h -OR- DT Swiss 350, 15x110, 6-Bolt, 28h / (R) Industry Nine 1/1, 12x148, XD, 6-Bolt, 28h -OR- DT Swiss 350, 12x148, 6-Bolt, 28h · Front tire: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO · Rear tire: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO
Controls and contact points
Archived: Headset: Cane Creek 40 IS Integrated Headset · Handlebar: Santa Cruz 20 Carbon Bar, 760mm · Stem: Burgtec Enduro MK3, 42mm · Seatpost: OneUp V2 Dropper Post, 31.6 -or- RockShox Reverb Stealth -or- Fox Transfer · Saddle: Juliana Carbon Saddle
