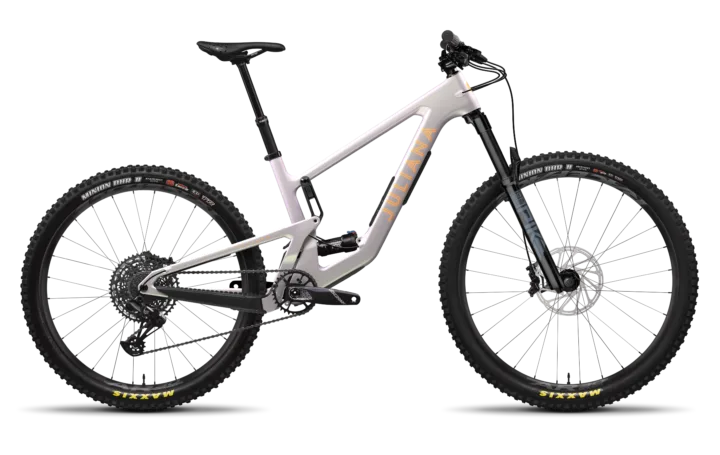

2024 Juliana Furtado R

Original specifications: 29″ front / 27.5″ rear wheels · 30.57 lbs / 13.87 kg published weight · geometry for 3 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900000310
Model year
2024
Category
Mountain
Original MSRP
$4,799.00
Sizes
XS, S, M
Colors
Matte Lavender Luster
Weight
30.57 lbs / 13.87 kg
Geometry
3 manufacturer sizes
In this record
22 specifications · 3 archived images · original MSRP · geometry
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2024 archived details

Published colors
Matte Lavender Luster
Frame
Carbon Fiber

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildCarbon Fiber · Mx

Manufacturer catalog

Published sizes and colors

3 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSM

Published colors

Matte Lavender Luster

Frameset

Frame ConstructionCarbon C Frame
Frame MaterialCarbon Fiber
ForkRockShox Pike Base, 140mm
Rear ShockFOX Float Performance, 210x50

Drivetrain

ShiftersSRAM NX Eagle, 12spd
Rear DerailleurSRAM NX Eagle, 12spd
CranksetSRAM Descendant Eagle 148 DUB 32t
Bottom BracketSRAM DUB 68/73mm Threaded BB
BB Shell Width73mm Threaded
CassetteSRAM PG1230, 12spd, 11-50t
ChainSRAM NX Eagle, 12spd

Brakes

BrakesSRAM G2 R

Cockpit & Contact Points

HeadsetFSA IS-2/47/42 ACB
HandlebarBurgtec RideWide Alloy
StemBurgtec Enduro MK3, 42mm
SaddleJuliana Primiero Saddle
SeatpostSDG Tellis Dropper, 31.6

Wheels & Tires

Hubs(F) SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h / (R) SRAM MTH 746, 12x148, HG, 6-Bolt, 32h
Rims(F) RaceFace AR Offset 30 29" / (R) RaceFace AR Offset 30 27.5"
Front TireMaxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO
Rear TireMaxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO
Wheel SizeMx

Geometry

3 sizes · 13 measurements

Frame measurements by size.

All geometry measurements3 sizes · 13 measurements
MeasurementXSSM
Seat tube370 mm380 mm405 mm
Top tube544/544570/571598/599
Head tube90 mm100 mm115 mm
Head-tube angle65.2/64.965.2/64.965.2/64.9
Seat-tube angle77.4/77.177.4/77.177.4/77.1
Chainstay / rear center428/429430/431433/434
Wheelbase1147/11471178/11781212/1213
Bottom-bracket drop35/3835/3835/38
Bottom-bracket height338/335338/335338/334
Reach410/406434/431459/456
Stack599/601608/610622/624
Standover height694/688703/698706/700
Front center719/718748/748779/779

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes32T · 11–50T · 12-speed
Lowest0.64:1 Highest2.91:1 Total range455%
Estimated speed At 90 RPM Lowest gear4.8 mph Highest gear21.7 mph

Rear tire: 27.5×2.4.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
SRAM NX Eagle

12spd

Retailer offers
Front tire · Original
Maxxis Minion DHR II 29"x2.4"

3C MaxxGrip, EXO

Retailer offers

Maxxis Minion DHR II Wide Trail 3C/EXO/TR 29in Tire Maxx Grip/3C/EXO, 29x2.4

Model match

Rear tire · Original
Maxxis Minion DHR II 27.5"x2.4"

3C MaxxTerra, EXO

Retailer offers
More parts (7)Fewer parts
Cassette · Original
SRAM PG1230

12spd, 11-50t

Bottom bracket · Original
SRAM DUB 68/73mm Threaded BB
Crankset · Original
SRAM Descendant Eagle 148 DUB 32t
Rear derailleur · Original
SRAM NX Eagle

12spd

Shifters · Original
SRAM NX Eagle

12spd

Seatpost · Original
SDG Tellis Dropper

31.6

Headset · Original
FSA IS-2/47/42 ACB

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO
Rear tire
Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO
Drivetrain
12-speed
Seatpost diameter
31.6 mm
Bottom bracket / shell
SRAM DUB 68/73mm Threaded BB · 73mm Threaded
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Carbon C Frame · Fork: RockShox Pike Base, 140mm

Archived: Fork: RockShox Pike Base, 140mm · Rear shock: FOX Float Performance, 210x50

Archived: Shifters: SRAM NX Eagle, 12spd · Rear derailleur: SRAM NX Eagle, 12spd · Crankset: SRAM Descendant Eagle 148 DUB 32t · Bottom bracket: SRAM DUB 68/73mm Threaded BB · Cassette: SRAM PG1230, 12spd, 11-50t · Chain: SRAM NX Eagle, 12spd

Archived: Brakes: SRAM G2 R

Archived: Wheel size: MX · Rims: (F) RaceFace AR Offset 30 29" / (R) RaceFace AR Offset 30 27.5" · Hubs: (F) SRAM MTH 716, 15x110, Torque Cap, 6-Bolt 32h / (R) SRAM MTH 746, 12x148, HG, 6-Bolt, 32h · Front tire: Maxxis Minion DHR II 29"x2.4", 3C MaxxGrip, EXO · Rear tire: Maxxis Minion DHR II 27.5"x2.4", 3C MaxxTerra, EXO

Controls and contact points

Archived: Headset: FSA IS-2/47/42 ACB · Handlebar: Burgtec RideWide Alloy · Stem: Burgtec Enduro MK3, 42mm · Seatpost: SDG Tellis Dropper, 31.6 · Saddle: Juliana Primiero Saddle
