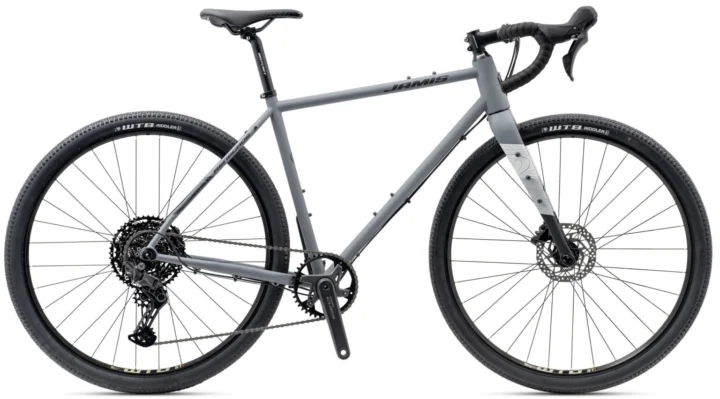

2026 Jamis Renegade S3
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,699.95
- Sizes
- 48, 51, 54, 56, 58, 61
- Colors
- Primer Grey
- Weight
- 24.25 lb
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 3 archived images · original MSRP · preserved geometry
- Archive ID
- 900001564
Frameset
| Frame Construction | Renegade V2 Reynolds 520 frame, 12mm thru-axle, 1.5 – 1 1/8” head tube, threaded BB shell, down tube mounted full cable housing, flat mount disc brakes, internal dropper post ready, 3 waterbottle mounts, TT mounts, rack and fender eyelets and UDH hanger, clearance for 45-50c tires |
|---|---|
| Frame Material | Steel |
| Fork | Renegade V2 monocoque carbon composite fiber fork, flip-chip with 50/55mm offset, 12mm thru-axle, carbon dropouts, tapered steerer with 1.5” hollow formed crown, flat mount disc brakes with internal cable routing, exposed fender mounts and water bottle eyelets |
| Fork Material | Carbon |
Drivetrain
| Component Group | Shimano CUES 10-speed, RD-U6000 |
|---|---|
| Shifters | Shimano CUES 10-speed, ST-U6030 |
| Rear Derailleur | Shimano CUES 10-speed, RD-U6000 |
| Crankset | Shimano CUES FC-U6030-1 40 2-pc crank |
| Bottom Bracket | FSA BB-4000 MegaExo |
| Cassette | Shimano CUES 10-speed, CS-LG400-10 11-48 |
| Chain | KMC 10-speed X10 |
Brakes
| Brakes | Shimano CUES BR-U6030 with SM-RT56 160mm rotors |
|---|
Cockpit & Contact Points
| Headset | FSA OrbitC-40B Internal, 1.5 – 1 1/8” |
|---|---|
| Handlebar | Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61) |
| Stem | Ritchey 4-Axis 3D forged 6061 alloy, 6 ̊ x 60mm (44), 70mm (48/51), 80mm (54/56), 100mm (58/61) |
| Saddle | NEW Jamis Gravel Sport with SL top and relief channel |
| Seatpost | Ritchey Road, 27.2 x 300mm with cromo seat pin |
Wheels & Tires
| Wheels | WTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs, 14g stainless steel spokes and front 12mm/rear 12×142 thru-axle with Switch Lever |
|---|---|
| Front Tire | WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44) |
| Rear Tire | WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44) |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|
| Seat tube | 450 mm | 480 mm | 510 mm | 530 mm | 550 mm | 570 mm |
| Effective top tube | 532 mm | 547 mm | 567 mm | 587 mm | 604 mm | 621 mm |
| Head tube | 80 mm | 99 mm | 130 mm | 162 mm | 189 mm | 210 mm |
| Head-tube angle | 71° | 71° | 71° | 71° | 71° | 71° |
| Seat-tube angle | 72° | 72° | 72° | 72° | 72° | 72° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 995 mm | 1010 mm | 1030 mm | 1051.2 mm | 1070 mm | 1085 mm |
| Bottom-bracket drop | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Reach | 360 mm | 370 mm | 380 mm | 390 mm | 400 mm | 410 mm |
| Stack | 527.5 mm | 545 mm | 575 mm | 605 mm | 630 mm | 650 mm |
| Standover height | 731 mm | 754 mm | 783 mm | 807.9 mm | 830 mm | 849.5 mm |
Geometry source: Jamis first-party geometry table (GEO - STEEL RENEGADE S3/S4) ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
48 geometry
Archive context: Its reach of 360 mm sits toward the shorter end. The seat angle of 72° sits toward the more relaxed end. Its wheelbase of 995 mm sits toward the shorter end.
Compared with 79 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 48 geometry 51 geometry
Archive context: The seat angle of 72° sits toward the more relaxed end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. The head angle of 71° sits somewhat steeper than typical.
Compared with 79 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 51 geometry 54 geometry
Archive context: The seat angle of 72° sits toward the more relaxed end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. Its reach of 380 mm sits somewhat shorter than typical.
Compared with 91 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: The seat angle of 72° sits toward the more relaxed end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. Its reach of 390 mm sits somewhat shorter than typical.
Compared with 64 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: The seat angle of 72° sits toward the more relaxed end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end. Its reach of 400 mm sits somewhat shorter than typical.
Compared with 70 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry 61 geometry
Archive context: The seat angle of 72° sits toward the more relaxed end. Its stack of 650 mm sits toward the taller end. Its bottom-bracket drop of 80 mm sits toward the deeper-drop end.
Compared with 20 distinct cyclocross/gravel geometries in the XXL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 61 geometry Parts & serviceability
Find replacement parts
ChainKMC 10-speed X10Exact archived model
CassetteShimano CUES 10-speed, CS-LG400-10 11-48Exact archived model
Bottom bracketFSA BB-4000 MegaExoExact archived model
More qualified parts (6)
CranksetShimano CUES FC-U6030-1 40 2-pc crankExact archived model
Rear derailleurShimano CUES 10-speed, RD-U6000Exact archived model
ShiftersShimano CUES 10-speed, ST-U6030Exact archived model
HandlebarRitchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61)Named archived component — verify dimensions
StemRitchey 4-Axis 3D forged 6061 alloy, 6 ̊ x 60mm (44), 70mm (48/51), 80mm (54/56), 100mm (58/61)Named archived component — verify dimensions
Seatpost27.2 mm seatpostPublished diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameCheck paint chips, vent holes and the inside of the seat tube for corrosion. Also look for dents, bent tubes and cracking around welded or brazed joints.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 10-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Jamis Renegade S3 · Cyclocross/Gravel · Published sizes: 48, 51, 54, 56, 58, 61
Frame and fork
Inspect the frame and fork →Archived: Frame: Steel · Fork: · Carbon
Drivetrain
Check drivetrain wear →Archived: Group: Shimano CUES 10-speed, RD-U6000 · Shifters: Shimano CUES 10-speed, ST-U6030 · Rear derailleur: Shimano CUES 10-speed, RD-U6000 · Crankset: Shimano CUES FC-U6030-1 40 2-pc crank · Bottom bracket: FSA BB-4000 MegaExo · Cassette: Shimano CUES 10-speed, CS-LG400-10 11-48 · Chain: KMC 10-speed X10
Brakes
Inspect the brakes →Archived: Brakes: Shimano CUES BR-U6030 with SM-RT56 160mm rotors
Wheels and tires
Check wheels and tires →Archived: Wheels: WTB ST i23 TCS 2.0 (UST Tubeless Compliant System) disc rims, 32H, Joytec alloy 6-bolt hubs, 14g stainless steel spokes and front 12mm/rear 12×142 thru-axle with Switch Lever · Front tire: WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44) · Rear tire: WTB Riddler Comp 700CX37C, 30tpi Casing, Wire Bead (48-61) WTB BYWAY 650CX40C, 30tpi Casing, Wire Bead (44)
Controls and contact points
Archived: Headset: FSA OrbitC-40B Internal, 1.5 – 1 1/8” · Handlebar: Ritchey Baquiano Comp, 6061 aluminum, 73 reach, 118 ergonomic drop with 12ç flare, 31.8 x 400 (44) 420 (48-51) 440mm (54-56), 460mm (56-61) · Stem: Ritchey 4-Axis 3D forged 6061 alloy, 6 ̊ x 60mm (44), 70mm (48/51), 80mm (54/56), 100mm (58/61) · Seatpost: Ritchey Road, 27.2 x 300mm with cromo seat pin · Saddle: NEW Jamis Gravel Sport with SL top and relief channel
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
