Lowest0.88:1
Highest4.00:1
Total range457%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Rear tire: 700C×35.
Velopedia Bicycle Archive

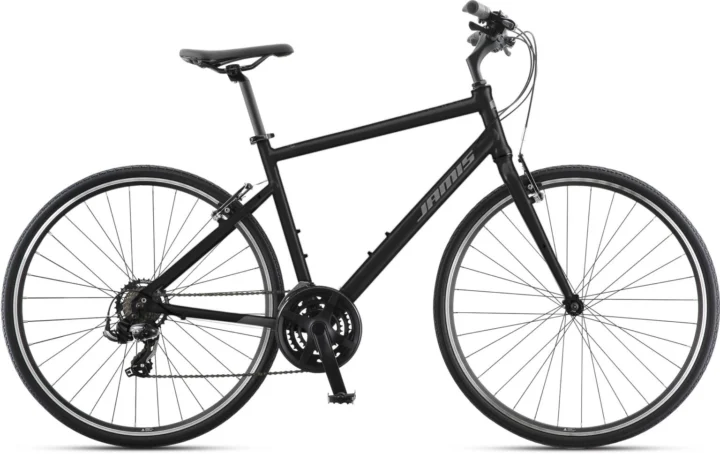

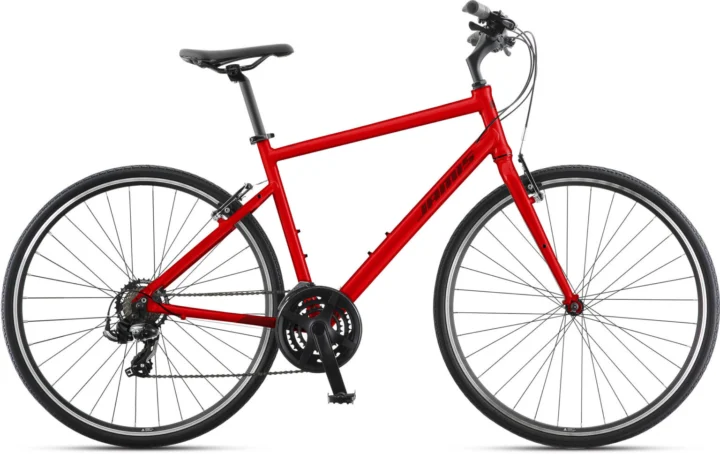

2026 Jamis Allegro A3
Original specifications: Shimano RD-TY300 rear and Shimano FD-TY510 top swing front drivetrain · 27.25lbs published weight · geometry for 5 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001693- Model year
- 2026
- Category
- Hybrid
- Original MSRP
- $559.95
- Sizes
- 15, 17, 19, 21, 23
- Colors
- Matte Black or Cayenne
- Weight
- 27.25lbs
- Geometry
- 5 manufacturer sizes
- In this record
- 21 specifications · 6 archived images · original MSRP · geometry
Original buildAluminum · Shimano RD-TY300 rear and Shimano FD-TY510 top swing front
Frameset
| Frame Construction | Size Specific Design 6061 aluminum with fast back rear triangle, internal cable routing, hydro-formed top and down tube, taper gauge “S” bend stays, kickstand mount, replaceable derailleur hanger and fender/rack eyelets |
|---|---|
| Frame Material | Aluminum |
| Fork | Hi-Ten tapered straight blade unicrown with bulge butted steerer, low-rider carry mounts and forged dropouts with 2 fender eyelets |
Drivetrain
| Component Group | Shimano RD-TY300 rear and Shimano FD-TY510 top swing front |
|---|---|
| Shifters | Shimano EZ-Fire Plus ST-EF500 shifters, 21-speed |
| Front Derailleur | Shimano RD-TY300 rear and Shimano FD-TY510 top swing front |
| Rear Derailleur | Shimano RD-TY300 rear and Shimano FD-TY510 top swing front |
| Crankset | Forged alloy, 48/38/28T, 170mm with chain guard |
| Bottom Bracket | VP sealed cartridge, 68 x 122.5mm |
| Cassette | Shimano CS-HG200, 7-speed 12-32T |
| Chain | KMC Z51 |
| Pedals | Platform style, steel cage/resin body |
Brakes
| Brakes | Promax TX-121 linear-pull with front power modulator and Shimano levers |
|---|
Cockpit & Contact Points
| Headset | Internal cup, threaded, 1 1/8” |
|---|---|
| Handlebar | Jamis Riser bar, aluminum, 25.4 x 10 ̊ sweep x 40mm rise x 600mm (15-17”) 620mm (19-23”) |
| Stem | Jamis alloy hi-rise, quill type, 35 ̊ rise, 80mm extension, 150mm (15”), 180mm (17-23”) |
| Saddle | NEW Jamis Touring with SL cover |
| Seatpost | Jamis alloy micro-adjust, 27.2 x 350mm, alloy clamp with QR seatpin |
Wheels & Tires
| Wheels | Double wall alloy rims, 32H, alloy hubs with QR and 14g spokes |
|---|---|
| Front Tire | Kenda Eurotrek K-197, 700 x 35c |
| Rear Tire | Kenda Eurotrek K-197, 700 x 35c |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurements5 sizes · 11 measurements
| Measurement | 15 | 17 | 19 | 21 | 23 |
|---|---|---|---|---|---|
| Effective top tube | 569 mm | 570 mm | 577 mm | 589 mm | 601 mm |
| Head tube | 121 mm | 147 mm | 173 mm | 195 mm | 219 mm |
| Head-tube angle | 72° | 72° | 72° | 73° | 73° |
| Seat-tube angle | 73° | 73° | 73° | 73° | 73° |
| Chainstay / rear center | 440 mm | 440 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1048 mm | 1048 mm | 1063 mm | 1064 mm | 1076 mm |
| Bottom-bracket drop | 57.5 mm | 57.5 mm | 55 mm | 55 mm | 55 mm |
| Reach | 402 mm | 392 mm | 396 mm | 401 mm | 406 mm |
| Stack | 545 mm | 569 mm | 592 mm | 616 mm | 639 mm |
| Standover height | 726 mm | 757 mm | 798 mm | 836 mm | 867 mm |
| Fork offset / rake | 48 mm | 48 mm | 48 mm | 48 mm | 48 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Kenda Eurotrek K-197
700 x 35c
Retailer offers
Vittoria Randonneur Reflect Tire Black, 700x35
700x35c
Replacement option
Other replacement options (1)
Challenge Strada Pro Tubeless Tire Black, 700x35
700x35c
Replacement option
Kenda Eurotrek K 197 on eBaySponsored links
Jamis alloy micro-adjust
27.2 x 350mm, alloy clamp with QR seatpin
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (3)Fewer parts
Promax TX-121 linear-pull with front power modulator and Shimano levers
Shimano EZ-Fire Plus ST-EF500 shifters
21-speed
Shimano ST-EF500 on eBaySponsored links
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Kenda Eurotrek K-197, 700 x 35c
- Rear tire
- Kenda Eurotrek K-197, 700 x 35c
- Drivetrain
- 7-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- VP sealed cartridge, 68 x 122.5mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Size Specific Design 6061 aluminum with fast back rear triangle, internal cable routing, hydro-formed top and down tube, taper gauge “S” bend stays, kickstand mount, replaceable derailleur hanger and fender/rack eyelets · Fork: Hi-Ten tapered straight blade unicrown with bulge butted steerer, low-rider carry mounts and forged dropouts with 2 fender eyelets
Drivetrain
Check drivetrain wear →Archived: Group: Shimano RD-TY300 rear and Shimano FD-TY510 top swing front · Shifters: Shimano EZ-Fire Plus ST-EF500 shifters, 21-speed · Front derailleur: Shimano RD-TY300 rear and Shimano FD-TY510 top swing front · Rear derailleur: Shimano RD-TY300 rear and Shimano FD-TY510 top swing front · Crankset: Forged alloy, 48/38/28T, 170mm with chain guard · Bottom bracket: VP sealed cartridge, 68 x 122.5mm · Cassette: Shimano CS-HG200, 7-speed 12-32T · Chain: KMC Z51
Brakes
Inspect the brakes →Archived: Brakes: Promax TX-121 linear-pull with front power modulator and Shimano levers
Wheels and tires
Check wheels and tires →Archived: Wheels: Double wall alloy rims, 32H, alloy hubs with QR and 14g spokes · Front tire: Kenda Eurotrek K-197, 700 x 35c · Rear tire: Kenda Eurotrek K-197, 700 x 35c
Controls and contact points
Archived: Headset: Internal cup, threaded, 1 1/8” · Handlebar: Jamis Riser bar, aluminum, 25.4 x 10 ̊ sweep x 40mm rise x 600mm (15-17”) 620mm (19-23”) · Stem: Jamis alloy hi-rise, quill type, 35 ̊ rise, 80mm extension, 150mm (15”), 180mm (17-23”) · Seatpost: Jamis alloy micro-adjust, 27.2 x 350mm, alloy clamp with QR seatpin · Saddle: NEW Jamis Touring with SL cover · Pedals: Platform style, steel cage/resin body
