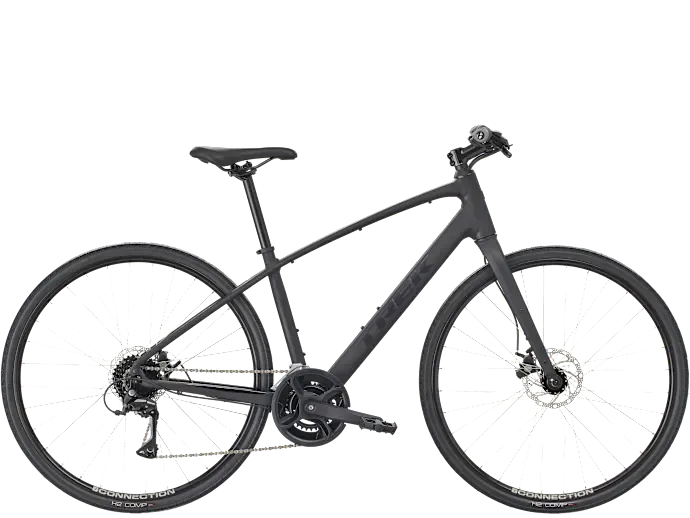

2026 Trek FX 1

Archived: 2026 Trek FX 1 · Hybrid · Published sizes: XS, S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Alpha Gold Aluminum, internal cable routing, rack & fender mounts, post mount disc, kickstand mount, 135x5mm QR · Fork: FX steel, flat-mount disc, rack mounts, 410mm axle-to-crown, ThruSkew 5mm QR · Steel

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano EF500, 8 speed · Front derailleur: Shimano Tourney TY606, 31.8/34.9mm clamp, top swing, dual pull · Rear derailleur: Shimano Acera M3020-8, 40T max cog · Crankset: Forged alloy, 46/30, 170mm length · Bottom bracket: Sealed cartridge, 68mm · Cassette: Shimano HG200, 12-32, 8 speed · Chain: KMC Z8.3

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

• Identify the installed brake type and actuation before choosing replacement parts or service procedures. Inspect every installed pad and braking surface, then check the complete cable, hose or linkage path for damage, corrosion, leaks or binding.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700c · Hubs: (F) Formula DC-20, alloy, 6-bolt, 100x5mm / (R) Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm · Front tire: Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm · Rear tire: Bontrager H2 Comp, wire bead, 30 tpi, 700x35mm

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: 1-1/8'' threadless, sealed cartridge bearings · Handlebar: XS, S, M, L: Bontrager Riser, steel, 25.4mm, 30mm rise, 600mm width / XL: Bontrager Riser, steel, 25.4mm, 30mm rise, 620mm width · Stem: XS, S, M: Bontrager alloy, 25.4mm clamp, 10 degree, 90mm length / L, XL: Bontrager alloy, 25.4mm clamp, 10 degree, 110mm length · Seatpost: XS, S, M: Bontrager alloy, 27.2mm, 12mm offset, 330mm length / L, XL: Bontrager alloy, 27.2mm, 12mm offset, 400mm length · Saddle: Bontrager Sport · Pedals: Wellgo nylon…

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
