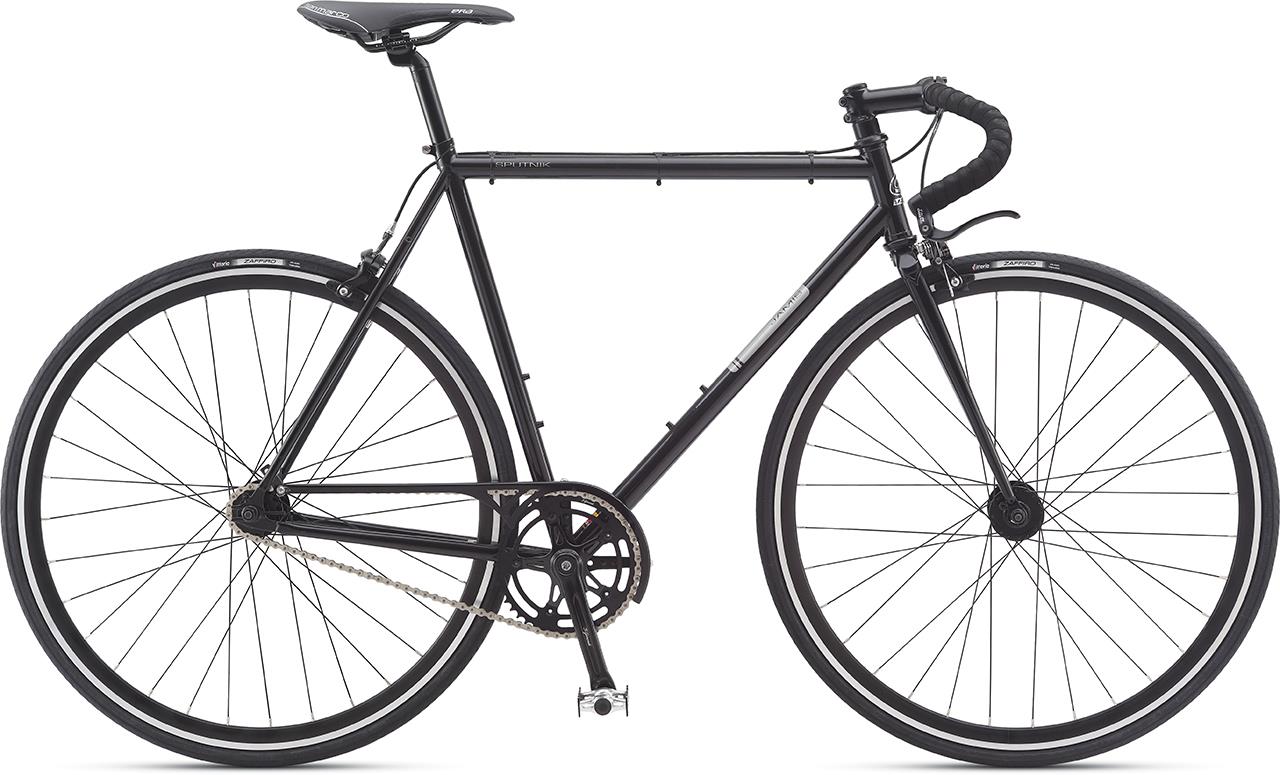

2014 Jamis Sputnik

Original specifications.

Share owner experience

At a glance

Archive #9258327

Model year: 2014
Sizes: 47, 50, 53, 55, 57, 59, 62
Colors: Deep Red, Gloss Black
In this record: 14 specifications · 2 archived images

Model history 6 other years

Browse other years

Compare side by side

Identification clues

2014 archived details

Published colors: Deep Red, Gloss Black
Frame: Reynolds 520 Chromoly

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildReynolds 520 Chromoly

Manufacturer catalog

Published sizes and colors

7 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

47505355575962

Published colors

Deep RedGloss Black

Frameset

Frame Material	Reynolds 520 Chromoly
Fork	Chromoly

Drivetrain

Crankset	FSA Gimondi 46t
Bottom Bracket	Fsa
Cassette	16t Freewheel, 16t Cog
Chain	KMC Z510HX
Pedals	Alloy

Brakes

Brakes	Tektro R317 Dual Pivot

Cockpit & Contact Points

Headset	Alloy Aheadset,1 1/8"
Handlebar	Jamis Vintage Drop
Stem	Jamis Road
Saddle	Selle San Marco ERA Dymanic
Seatpost	Alloy micro-adjust

Wheels & Tires

Front Tire	Vittoria Zaffiro, 700 x 25c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes46T · 16T

Ratio2.88:1

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

Vittoria Zaffiro

700 x 25c

Search Amazon Search eBay

Retailer offers

Vittoria Zaffiro Pro V Clincher Tire Black, 700x25

700x25c

Model match

Competitive Cyclist ↗$31.21

Other replacement options (1)

Vittoria Zaffiro EVO V G2.0 Tire Tan, 700x25

700x25c

Model match

Competitive Cyclist ↗$48.99

Brake pads · Original

Tektro R317 Dual Pivot

Search Amazon Search eBay

Crankset · Original

FSA Gimondi 46t

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Vittoria Zaffiro, 700 x 25c
Bottom bracket / shell: FSA

Equipment inspection checks 8 checks based on 4 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: Reynolds 520 Chromoly · Fork: Chromoly

Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Crankset: FSA Gimondi 46t · Bottom bracket: FSA · Cassette: 16t Freewheel, 16t Cog · Chain: KMC Z510HX

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Tektro R317 Dual Pivot

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Controls and contact points

Archived: Headset: Alloy Aheadset,1 1/8" · Handlebar: Jamis Vintage Drop · Stem: Jamis Road · Seatpost: Alloy micro-adjust · Saddle: Selle San Marco ERA Dymanic · Pedals: Alloy

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
