Velopedia Bicycle Archive

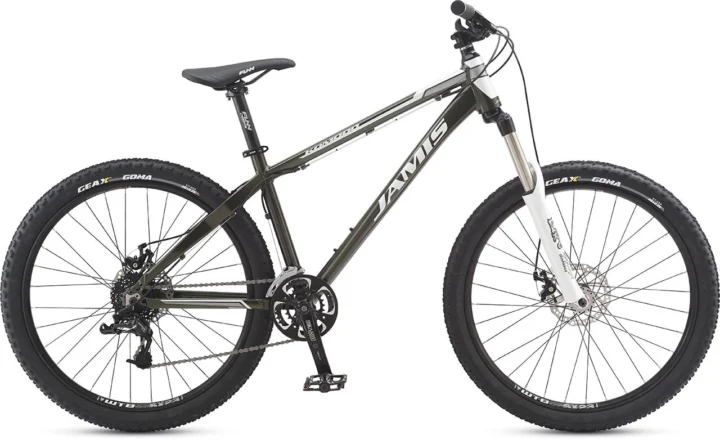

2014 Jamis Komodo

Original specifications.

Share owner experience

At a glance

Archive #9258285

Model year: 2014
Sizes: S, M, L
Colors: Ano Black, Dark Green
In this record: 16 specifications · 2 archived images

Model history 6 other years

Browse other years

Compare side by side

Identification clues

2014 archived details

Published colors: Ano Black, Dark Green
Frame: 6061-T6 Aluminum

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build6061-T6 Aluminum

Manufacturer catalog

Published sizes and colors

3 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SML

Published colors

Ano BlackDark Green

Frameset

Frame Material	6061-T6 Aluminum
Fork	RST Dirt 130mm

Drivetrain

Front Derailleur	Shimano FD-M190
Rear Derailleur	SRAM X4
Crankset	TruVativ Blaze 2.0 36/24t
Bottom Bracket	TruVativ PowerSpline
Cassette	SRAM PG-820, 8-speed, 11-32
Chain	KMC Z72
Pedals	Alloy Platform

Brakes

Brakes	Tektro Novela Disc

Cockpit & Contact Points

Headset	FSA Orbit 1.5 Zero-Stack
Handlebar	FUNN Flat Out
Stem	FUNN Crossfire
Saddle	FUNN Solace
Seatpost	FUNN Crossfire

Wheels & Tires

Front Tire	Geax Goma, 26 x 2.25"

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes36/24T · 11–32T · 8-speed

Lowest0.75:1 Highest3.27:1 Total range436%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Chain · Original

KMC Z72

Search Amazon Search eBay

Retailer offers

SRAM PC-830 Chain One Color, 8 Speed

Replacement option

Competitive Cyclist ↗$11.00

Cassette · Original

SRAM PG-820

8-speed, 11-32

Search Amazon Search eBay

Front tire · Original

Geax Goma

26 x 2.25"

Replacement search: 26x2.25 bicycle tire Before ordering: Check rim type and tire clearance.

Search Amazon Search eBay

More parts (3)Fewer parts

Front derailleur · Original

Shimano FD-M190

Search Amazon Search eBay

Rear derailleur · Original

SRAM X4

Search Amazon Search eBay

Headset · Original

FSA Orbit 1.5 Zero-Stack

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Geax Goma, 26 x 2.25"
Drivetrain: 8-speed
Bottom bracket / shell: TruVativ PowerSpline

Equipment inspection checks 8 checks based on 4 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: 6061-T6 Aluminum · Fork: RST DIRT 130mm

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Drivetrain

Check drivetrain wear →

Archived: Front derailleur: Shimano FD-M190 · Rear derailleur: SRAM X4 · Crankset: TruVativ Blaze 2.0 36/24t · Bottom bracket: TruVativ PowerSpline · Cassette: SRAM PG-820, 8-speed, 11-32 · Chain: KMC Z72

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Tektro Novela Disc

Inspect pads, rotors, calipers and the complete cable or hose path. Both levers should feel consistent and both calipers should release without persistent rubbing.

Controls and contact points

Archived: Headset: FSA Orbit 1.5 Zero-Stack · Handlebar: FUNN Flat Out · Stem: FUNN Crossfire · Seatpost: FUNN Crossfire · Saddle: FUNN Solace · Pedals: Alloy Platform

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
