Lowest0.69:1
Highest4.00:1
Total range582%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.3; rear size isn’t listed.
Velopedia Bicycle Archive

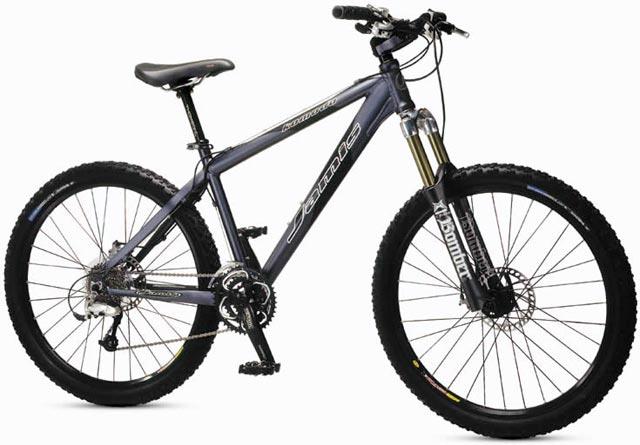

2003 Jamis Komodo
Original specifications: Shimano Deore XT · 9-speed · mechanical rear derailleur · 26" wheels · 27.25 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #30351- Model year
- 2003
- Category
- Mountain
- Original MSRP
- $1,599.95
- Sizes
- 12", 14", 17", 19", 21"
- Colors
- Flat Slate
- Weight
- 27.25 lb
- Geometry
- Legacy reference
- In this record
- 27 specifications · archived image · original MSRP · geometry
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2003 archived details
- Published colors
- Flat Slate
- Frame
- 6061 T6 aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061 T6 aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 T6 aluminum |
| Fork | Marzocchi Z-1 Freeride, 130mm travel |
| Fork Material | Aluminum/magnesium, single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore XT RapidFire SL |
| Front Derailleur | Shimano Deore XT top-swing, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Deore XT SGS |
| Crankset | TruVativ Hussefelt, 22/32/44 teeth |
| Bottom Bracket | TruVativ GIGA pipe, 113mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 11 - 32 teeth |
| Chain | Shimano CN-HG72, 1/2 x 3/32" |
| Pedals | Time ATAC Z |
Brakes
| Brakes | Hayes HFX-9 Hydraulic Disc brakes, Hayes Hydraulic levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Cane Creek ZS-2 |
|---|---|
| Handlebar | Ritchey Rizer Comp 31.8mm |
| Handlebar Extensions | Not included |
| Stem | TruVativ Holzfeller DH |
| Saddle | Fi'zi:k Plateau, chrome-moly rails |
| Seatpost | Thomson Elite, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano Deore XT disc |
|---|---|
| Rims | Mavic F219, 32-hole |
| Spokes | WTB stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 2.30" Hutchinson Scorpion |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 592 mm |
| Head-tube angle | 70° |
| Seat-tube angle | 72.5° |
| Chainstay / rear center | 425 mm |
| Wheelbase | 1071 mm |
| Fork offset / rake | 38.1 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Thomson Elite
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (7)Fewer parts
Fi'zi:k Plateau
chrome-moly rails
Shimano Deore XT SGS
Shimano Deore XT RapidFire SL
Ritchey Rizer Comp 31.8mm
1 1/8" threadless Cane Creek ZS-2
Mavic F219
32-hole
Shimano Deore XT disc
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.30" Hutchinson Scorpion
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- TruVativ GIGA pipe, 113mm spindle · 68mm English
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Marzocchi Z-1 Freeride, 130mm travel · Aluminum/magnesium, single crown
Suspension
Evaluate the suspension →Archived: Fork: Marzocchi Z-1 Freeride, 130mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Deore XT RapidFire SL · Front derailleur: Shimano Deore XT top-swing, top-pull/clamp-on 31.8mm · Rear derailleur: Shimano Deore XT SGS · Crankset: TruVativ Hussefelt, 22/32/44 teeth · Bottom bracket: TruVativ GIGA pipe, 113mm spindle · Rear cogs: 9-speed, 11 - 32 teeth · Chain: Shimano CN-HG72, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Hayes HFX-9 Hydraulic Disc brakes, Hayes Hydraulic levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Mavic F219, 32-hole · Hubs: Shimano Deore XT disc · Front tire: 26 x 2.30" Hutchinson Scorpion
Controls and contact points
Archived: Headset: 1 1/8" threadless Cane Creek ZS-2 · Handlebar: Ritchey Rizer Comp 31.8mm · Stem: TruVativ Holzfeller DH · Seatpost: Thomson Elite, 27.2mm diameter · Saddle: Fi'zi:k Plateau, chrome-moly rails · Pedals: Time ATAC Z
