Lowest0.69:1
Highest3.82:1
Total range555%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.2; rear size isn’t listed.
Velopedia Bicycle Archive

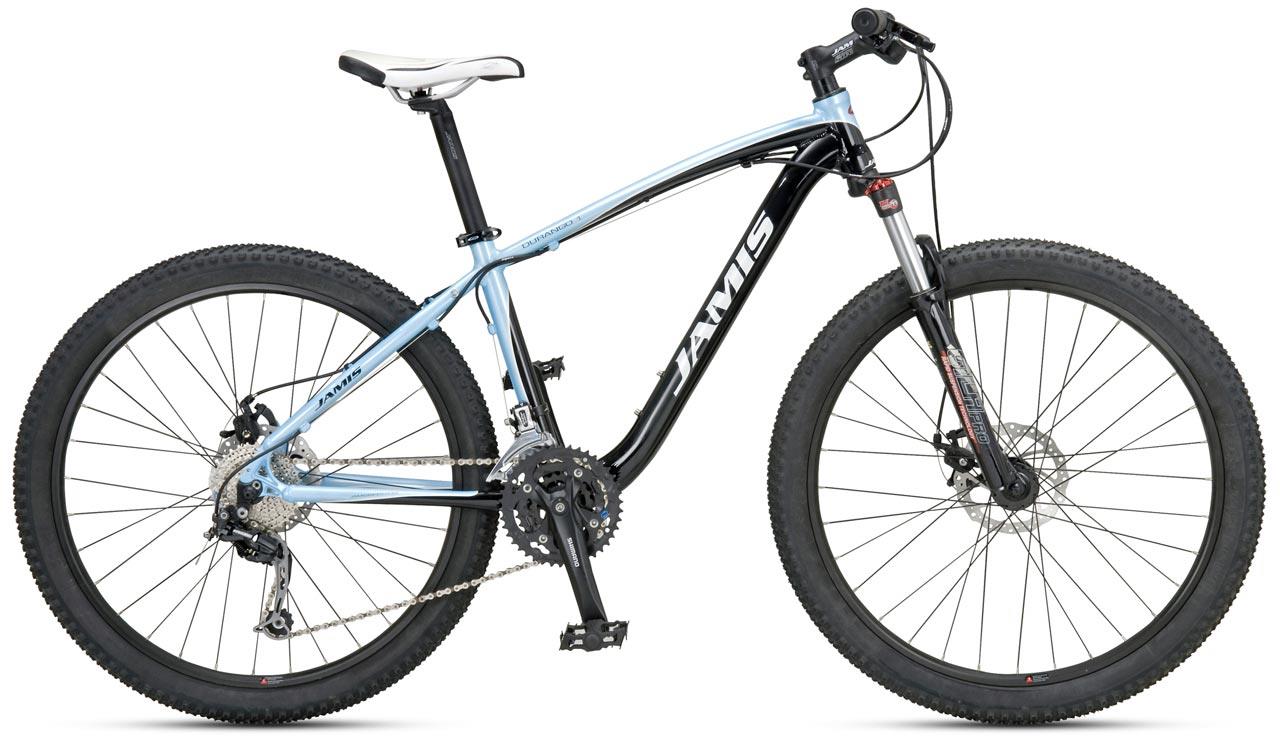

2010 Jamis Durango 1 Femme
Original specifications: Shimano Deore · 8-speed rear derailleur · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #19652- Model year
- 2010
- Category
- Mountain
- Sizes
- Womens 12", womens 14", womens 16", womens 18"
- Colors
- Ocean Mist/Glass Black
- In this record
- 27 specifications · archived image
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Ocean Mist/Glass Black
- Frame
- 6061 Triple Butted Aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061 Triple Butted Aluminum · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Triple Butted Aluminum |
| Fork | RST Gila Pro, 100mm travel |
| Fork Material | Single crown |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Acera rapidfire Plus SL-M360 |
| Front Derailleur | Shimano Altus M311, dual-pull/clamp-on 34.9mm |
| Rear Derailleur | Shimano Deore Shadow |
| Crankset | Shimano Acera M361, 42/32/22 teeth |
| Bottom Bracket | Sealed cartridge, 122.5mm spindle |
| BB Shell Width | 68mm |
| Cassette | Shimano HG40 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z82 |
| Pedals | Platform w/steel outer cage |
Brakes
| Brakes | Tektro IO mechanical disc w/ 160mm Wavy Rotor |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless Zero Stack Internal Cup |
|---|---|
| Handlebar | Jamis XC alloy riser |
| Handlebar Extensions | Not included |
| Stem | Jamis XC Alloy Threadless |
| Saddle | Jamis Trail |
| Seatpost | Jamis alloy micro-adjust, 31.6mm diameter |
Wheels & Tires
| Hubs | Formula alloy disc |
|---|---|
| Rims | Alex ASD-2 |
| Spokes | Stainless steel, 14ga. (2.0mm) |
| Front Tire | 26 x 2.20" Geax Saguaro |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC Z82
Retailer offers
SRAM PC-830 Chain One Color, 8 Speed
Replacement option
Jamis alloy micro-adjust
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
More parts (5)Fewer parts
Shimano HG40
26 x 2.20" Geax Saguaro
Replacement search: 26x2.2 bicycle tire Before ordering: Check rim type and tire clearance.
Shimano Acera M361
42/32/22 teeth
Shimano Deore Shadow
Alex ASD-2
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.20" Geax Saguaro
- Drivetrain
- 8-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- Sealed cartridge, 122.5mm spindle · 68mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: RST Gila Pro, 100mm travel · Single crown
Suspension
Evaluate the suspension →Archived: Fork: RST Gila Pro, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Acera rapidfire Plus SL-M360 · Front derailleur: Shimano Altus M311, dual-pull/clamp-on 34.9mm · Rear derailleur: Shimano Deore Shadow · Crankset: Shimano Acera M361, 42/32/22 teeth · Bottom bracket: Sealed cartridge, 122.5mm spindle · Cassette: Shimano HG40 · Rear cogs: 8-speed, 11 - 32 teeth · Chain: KMC Z82
Brakes
Inspect the brakes →Archived: Brakes: Tektro IO mechanical disc w/ 160mm Wavy Rotor
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Alex ASD-2 · Hubs: Formula alloy disc · Front tire: 26 x 2.20" Geax Saguaro
Controls and contact points
Archived: Headset: 1 1/8" threadless Zero Stack Internal Cup · Handlebar: Jamis XC alloy riser · Stem: Jamis XC Alloy Threadless · Seatpost: Jamis alloy micro-adjust, 31.6mm diameter · Saddle: Jamis Trail · Pedals: Platform w/steel outer cage
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
