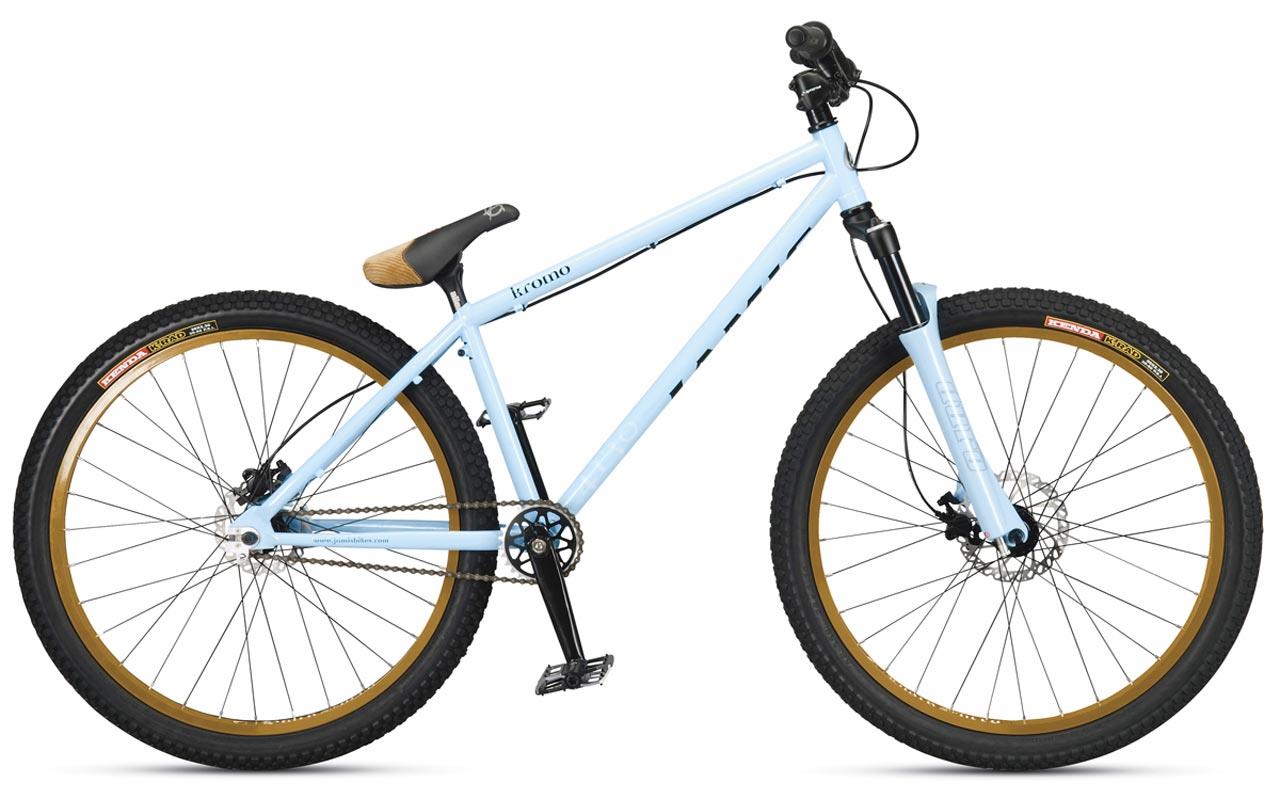

2009 Jamis Kromo

Archived: Frame: TIG-welded · Fork: SR Duro Dirt Jump, 100mm travel · Magnesium/cr-mo, single crown

• Check paint damage, vent holes and accessible internal surfaces for corrosion. Look for dents, bent tubes and cracking around welded or brazed joints.

Archived: Fork: SR Duro Dirt Jump, 100mm travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

Archived: Group: Dirt Jump Mix · Crankset: 4130 chromoly, 28 teeth · Bottom bracket: Chromoly spline · Cassette: Relic 9:1 cog spacer · Rear cogs: 1-speed, 14 teeth · Chain: KMC Z410

• Check chain tension and chainline, rotate the drivetrain through a full revolution and confirm the rear axle or tensioning hardware cannot slip.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Hayes Stroker Ryde w/160mm rotor front/Hayes Stroker Ryde w/140mm rotor rear brakes, Hayes Stroker Ryde Hydraulic levers

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.

Archived: Wheel size: 26" wheels · Rims: Alienation Black Sheep, 32-hole · Hubs: Formula alloy disc · Front tire: 26 x 2.30" Kenda K-Rad

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: 1 1/8" Aheadset · Handlebar: Syncros FR38 6061 riser · Stem: Syncros FR50 31.8mm · Seatpost: Alienation Billy Club Pivotal, 25.4mm diameter · Saddle: Alienation Recliner Pivotal · Pedals: Crank Brothers 5050

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
