Lowest0.69:1
Highest2.91:1
Total range423%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 26×2.35; rear size isn’t listed.
Velopedia Bicycle Archive

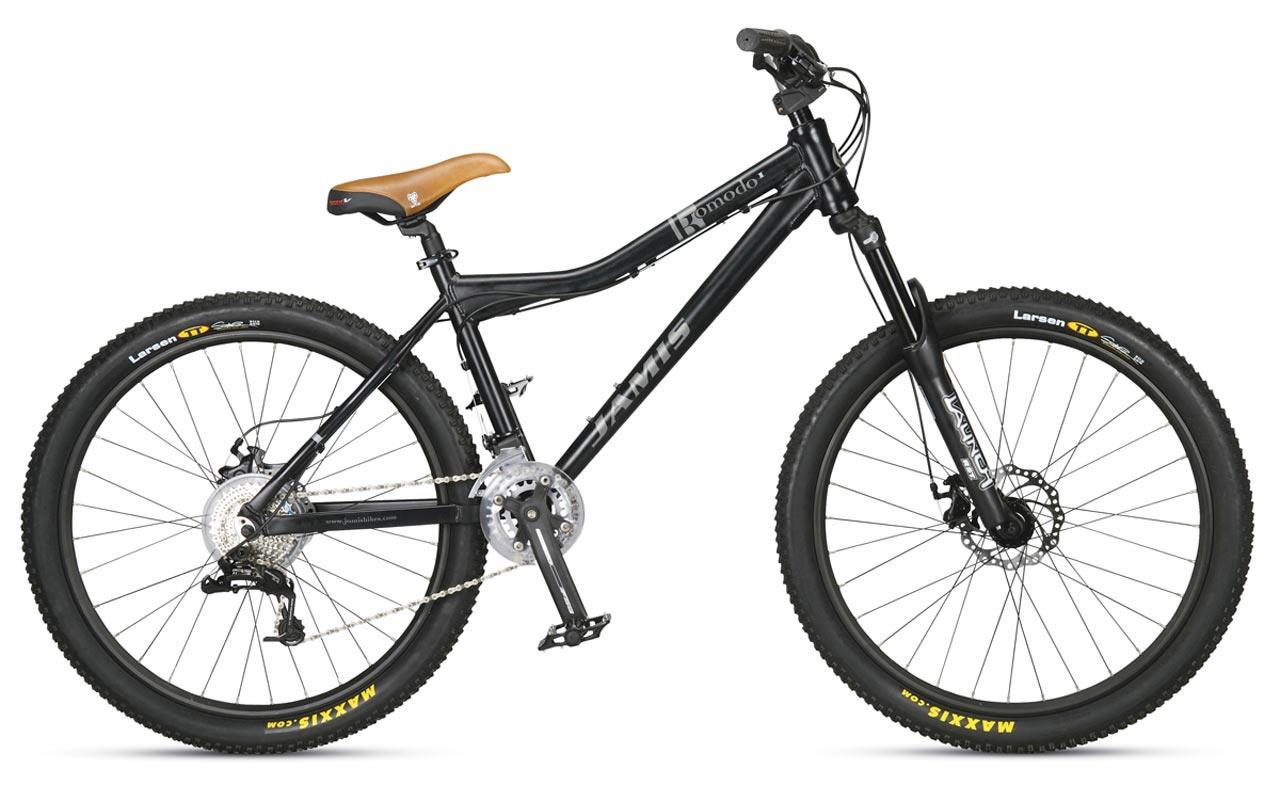

2009 Jamis Komodo I
Original specifications: Dirt Jump Mix drivetrain · 26" wheels · 33.2 lb published weight.
Planning to sell? Draft your listing
At a glance
Archive #18230- Model year
- 2009
- Category
- Mountain
- Original MSRP
- $675.00
- Sizes
- 14", 16.5", 18.5"
- Colors
- Ano Black
- Weight
- 33.2 lb
- In this record
- 27 specifications · archived image · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Ano Black
- Frame
- 7005 triple butted aluminum
- Original equipment
- Dirt Jump Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build7005 triple butted aluminum · Dirt Jump Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 triple butted aluminum |
| Fork | RST Launch T9, 130mm travel |
| Fork Material | Steel, single crown |
Drivetrain
| Component Group | Dirt Jump Mix |
|---|---|
| Shifters | SRAM SX.4 Trigger |
| Front Derailleur | Suntour XC202 |
| Rear Derailleur | SRAM SX4 |
| Crankset | FSA Dyna Drive, 22/32 teeth |
| Bottom Bracket | FSA Powerdrive, 113mm spindle |
| BB Shell Width | 73mm |
| Cassette | Shimano HG40 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z82 |
| Pedals | Flatbed alloy platform |
Brakes
| Brakes | Tektro IO disc w/6" rotor brakes, Tektro ML-330 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/2" to 1 1/8" Zero Stack |
|---|---|
| Handlebar | Jamis DJ 6061-T6 riser |
| Handlebar Extensions | Not included |
| Stem | Jamis DJ alloy 31.8mm |
| Saddle | WTB Speed V Sport SE |
| Seatpost | Jamis alloy micro-adjust, 31.6mm diameter |
Wheels & Tires
| Hubs | Formula alloy disc |
|---|---|
| Rims | Weinmann Taurus 2000, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.35" Maxxis Larsen |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC Z82
Retailer offers
SRAM PC-830 Chain One Color, 8 Speed
Replacement option
Jamis alloy micro-adjust
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
More parts (5)Fewer parts
Shimano HG40
FSA Powerdrive
113mm spindle
WTB Speed V Sport SE
FSA Dyna Drive
22/32 teeth
SRAM SX.4 Trigger
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.35" Maxxis Larsen
- Drivetrain
- 8-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- FSA Powerdrive, 113mm spindle · 73mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: RST Launch T9, 130mm travel · Steel, single crown
Suspension
Evaluate the suspension →Archived: Fork: RST Launch T9, 130mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Dirt Jump Mix · Shifters: SRAM SX.4 Trigger · Front derailleur: Suntour XC202 · Rear derailleur: SRAM SX4 · Crankset: FSA Dyna Drive, 22/32 teeth · Bottom bracket: FSA Powerdrive, 113mm spindle · Cassette: Shimano HG40 · Rear cogs: 8-speed, 11 - 32 teeth · Chain: KMC Z82
Brakes
Inspect the brakes →Archived: Brakes: Tektro IO disc w/6" rotor brakes, Tektro ML-330 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: Weinmann Taurus 2000, 32-hole · Hubs: Formula alloy disc · Front tire: 26 x 2.35" Maxxis Larsen
Controls and contact points
Archived: Headset: 1 1/2" to 1 1/8" Zero Stack · Handlebar: Jamis DJ 6061-T6 riser · Stem: Jamis DJ alloy 31.8mm · Seatpost: Jamis alloy micro-adjust, 31.6mm diameter · Saddle: WTB Speed V Sport SE · Pedals: Flatbed alloy platform
