Velopedia Bicycle Archive

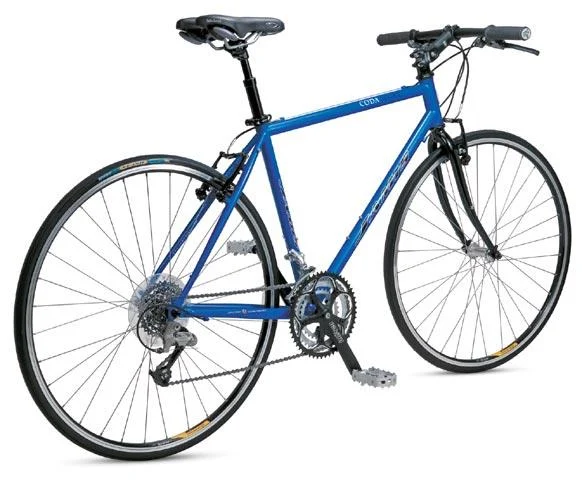

2005 Jamis Coda Sport

Hybrid bicycle from the Velopedia specification archive.

Original MSRP
$569.95
Sizes
16", 17.5", 19.5", 21.5", 23"
Colors
Super Blue
Weight
25
Archive ID
93145

Current market

Checking current listings…

Frameset

Frame ConstructionTIG-welded
Frame MaterialReynolds 520
ForkJamis
Fork MaterialChromoly, unicrown crown
Rear ShockN/A

Drivetrain

Component GroupHybrid Mix
ShiftersShimano ST-R223
Front DerailleurShimano FD-R443-A, bottom-pull/clamp-on
Rear DerailleurShimano Deore
CranksetTruVativ Touro, 30/42/52 teeth
Bottom BracketTruVativ Power Spline, 113mm spindle
BB Shell Width68mm English
Rear Cogs8-speed, 11 - 32 teeth
ChainShimano CN-HG73, 1/2 x 3/32"
PedalsWellgo resin

Brakes

BrakesTektro linear-pull brakes, Shimano levers

Cockpit & Contact Points

Headset1 1/8" threadless Aheadset
HandlebarRitchey Comp
Handlebar ExtensionsNot included
StemRitchey Comp
SaddleSelle Royale Freccia
SeatpostAluminum suspension, 27.2mm diameter

Wheels & Tires

HubsFront: Shimano HB-2200, Rear: Shimano FH-2200
RimsAlex ACE-18, 36-hole
SpokesStainless steel, 14/15ga. (2.0/1.8mm) double-butted
Spoke NipplesBrass nipples
Front Tire700 x 28c Hutchinson Flash
Wheel Size700c wheels

More 2005 Jamis Bicycles

View all

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
