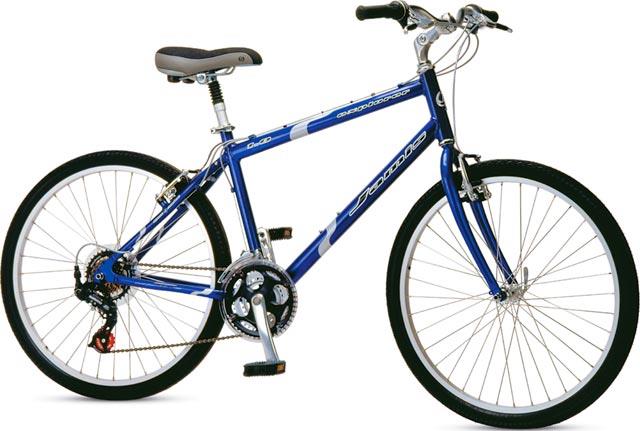

2004 Jamis Explorer 1.0
Comfort/commuter bicycle from the Velopedia specification archive.
- Original MSRP
- $249.95
- Sizes
- 13.5", 15.5", 18", 21", womens 14.5", womens 17.5"
- Colors
- Blue, Silver, White
- Weight
- 30.75
- Archive ID
- 92439
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 T6 aluminum |
| Fork | Jamis |
| Fork Material | Chromoly/hi-tensile steel, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Comfort Mix |
|---|---|
| Shifters | SRAM MRX |
| Front Derailleur | SRAM 3.0, bottom-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Acera |
| Crankset | SR Suntour NEX, 22/32/42 teeth |
| Bottom Bracket | Sealed, 120mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 7-speed, 13 - 34 teeth |
| Chain | Shimano CN-UG50, 1/2 x 3/32" |
| Pedals | Victor VP aluminum |
Brakes
| Brakes | Tektro linear-pull brakes, Tektro Tenera levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless steel |
|---|---|
| Handlebar | Steel, 1" rise |
| Handlebar Extensions | Not included |
| Stem | Aluminum, adjustable |
| Saddle | Viscount Super Comfort |
| Seatpost | Aluminum, suspension, 27.2mm diameter |
Wheels & Tires
| Hubs | Aluminum, Q/R |
|---|---|
| Rims | Weinmann CN-520, 36-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 1.95" Kenda Komfort |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
