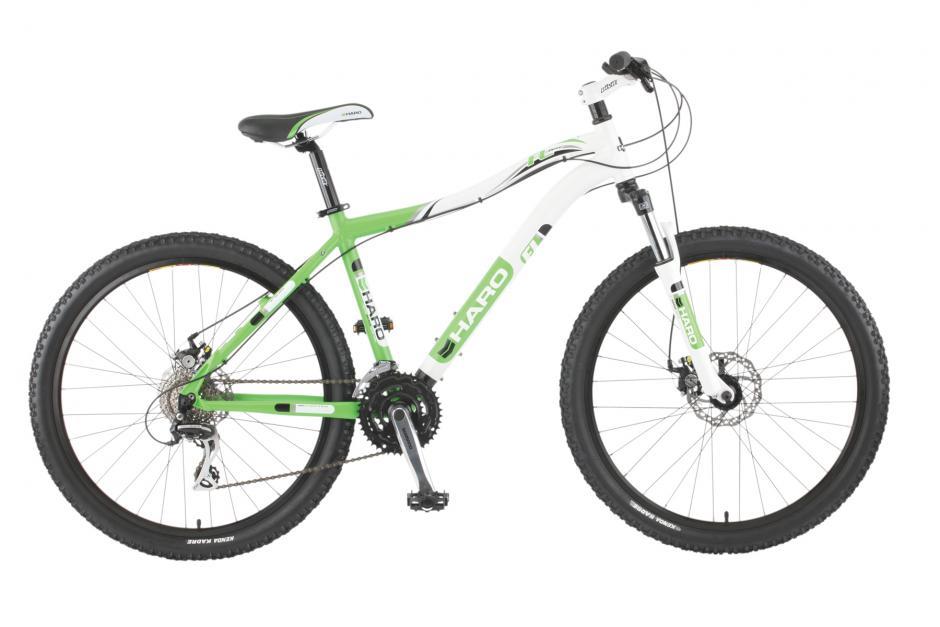

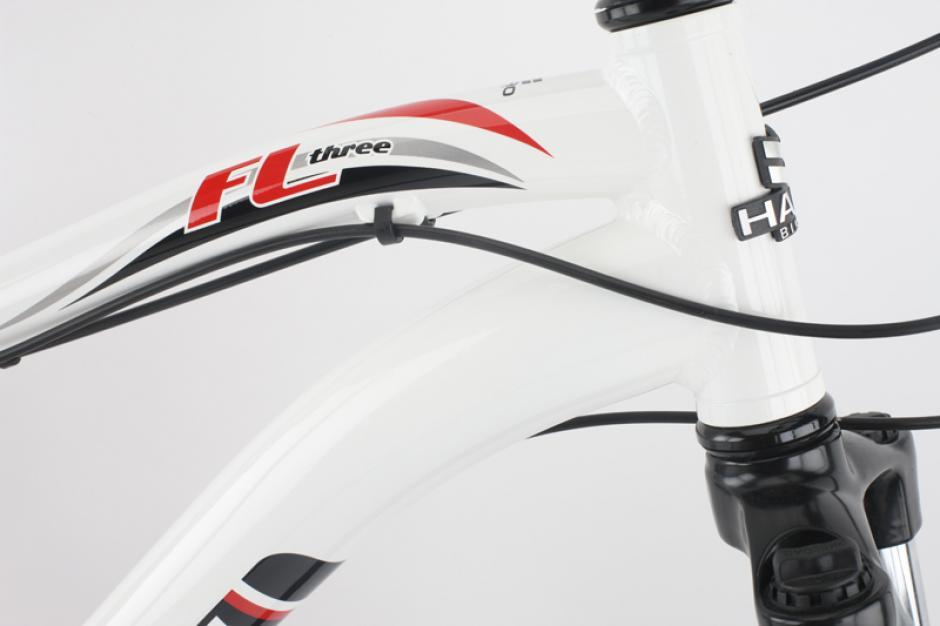

2011 Haro Flightline Three

Original specifications: Shimano Acera · 8-speed rear derailleur.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #22242
Model year
2011
Category
Mountain
Sizes
15", 17", 19"
Colors
Race Red, SG Acid Green
In this record
24 specifications · 10 archived images
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
Race Red, SG Acid Green
Frame
Flightline 6061 T6 oversize Alloy
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildFlightline 6061 T6 oversize Alloy · Mountain Mix

Historical catalog variants

Archived sizes and colors

6 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

15"17"19"

Published colors

Race RedSG Acid Green
View 6 archived size/color combinations
SizeColor
15"Race Red
17"Race Red
19"Race Red
15"SG Acid Green
17"SG Acid Green
19"SG Acid Green

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded

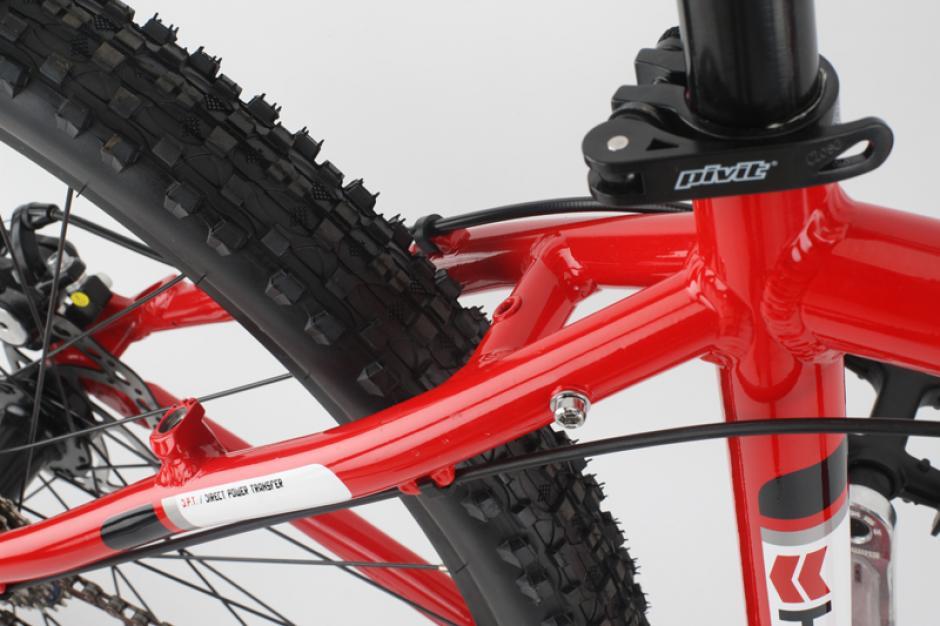

Frame MaterialFlightline 6061 T6 oversize Alloy
ForkSR Suntour XCT V2, 100mm travel
Fork MaterialSingle

Drivetrain

Component GroupMountain Mix

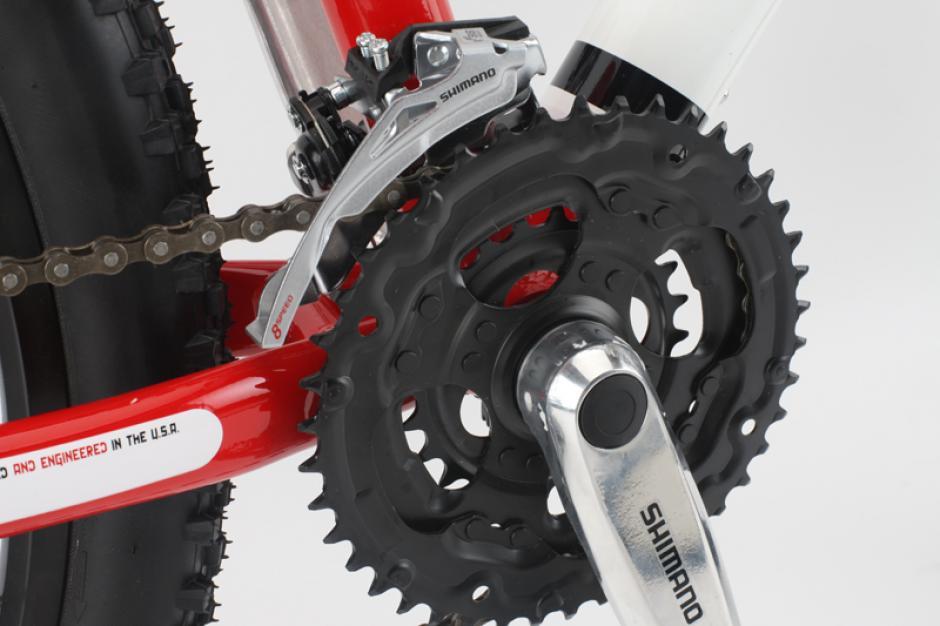

Front DerailleurShimano M190A
Rear DerailleurShimano Acera

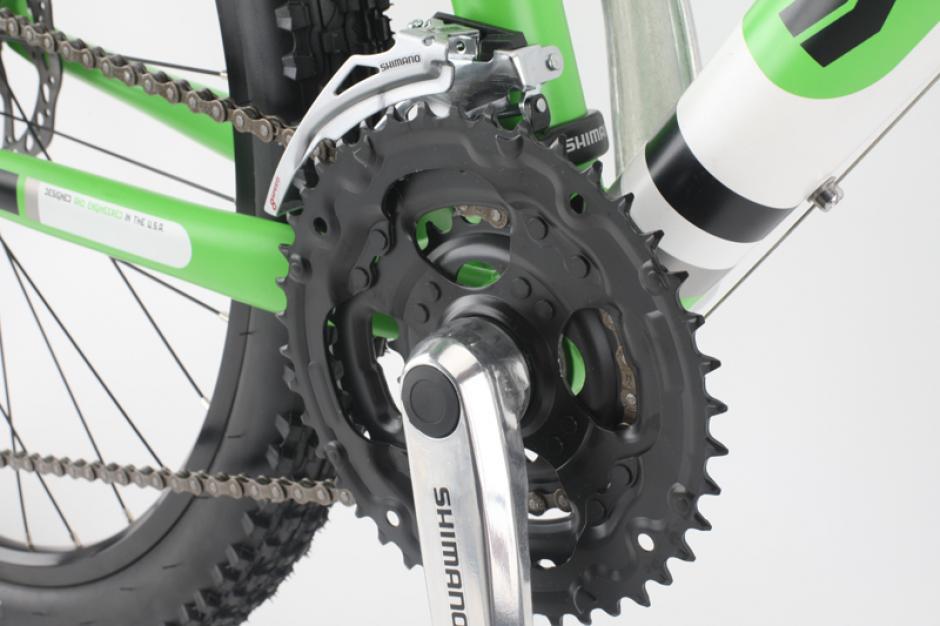

CranksetShimano FC-M311, 24/34/42 teeth
Bottom BracketSealed

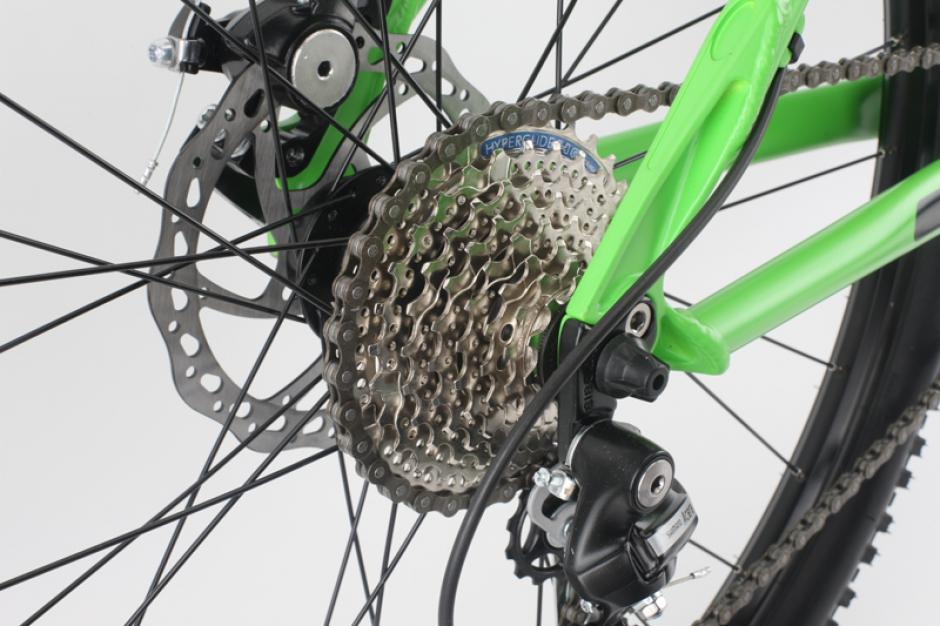

CassetteShimano HG-40
Rear Cogs8-speed, 11 - 32 teeth
ChainShimano HG-50
PedalsATB Caged

Brakes

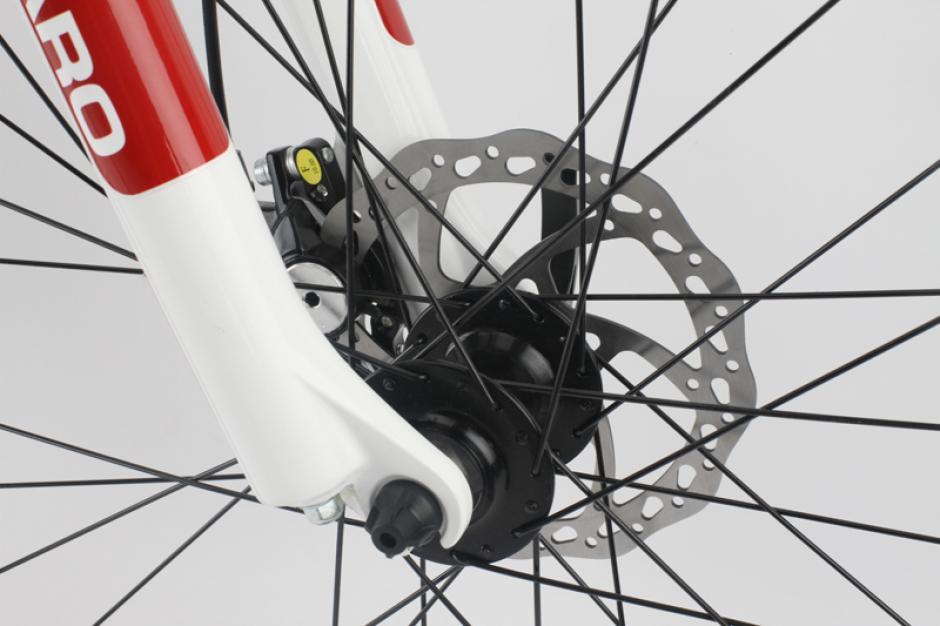

BrakesPromax DSK-320 brakes, Shimano EF-50 levers

Cockpit & Contact Points

HeadsetAheadset OS

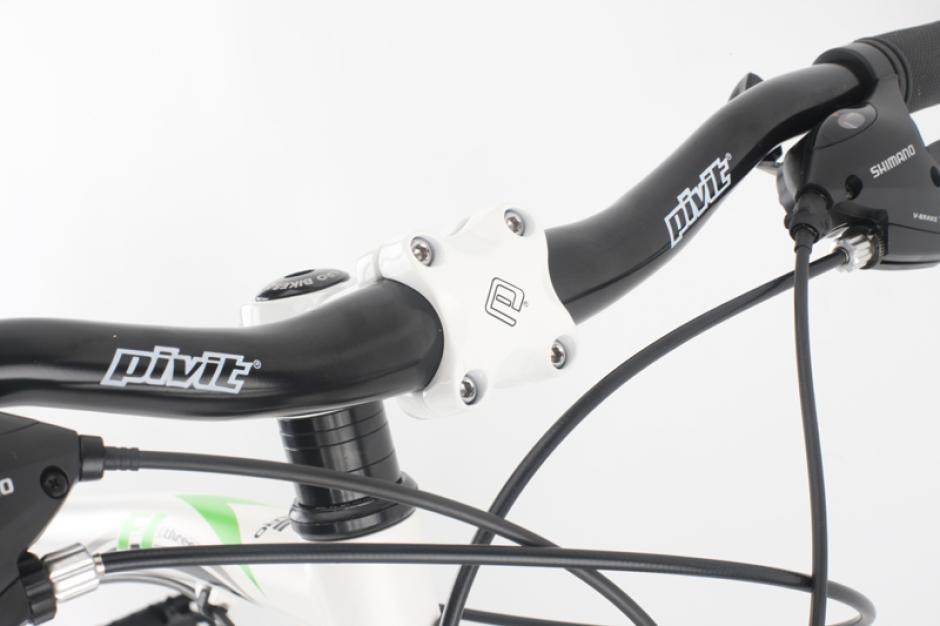

HandlebarPivit Riser Bar
Handlebar ExtensionsNot included

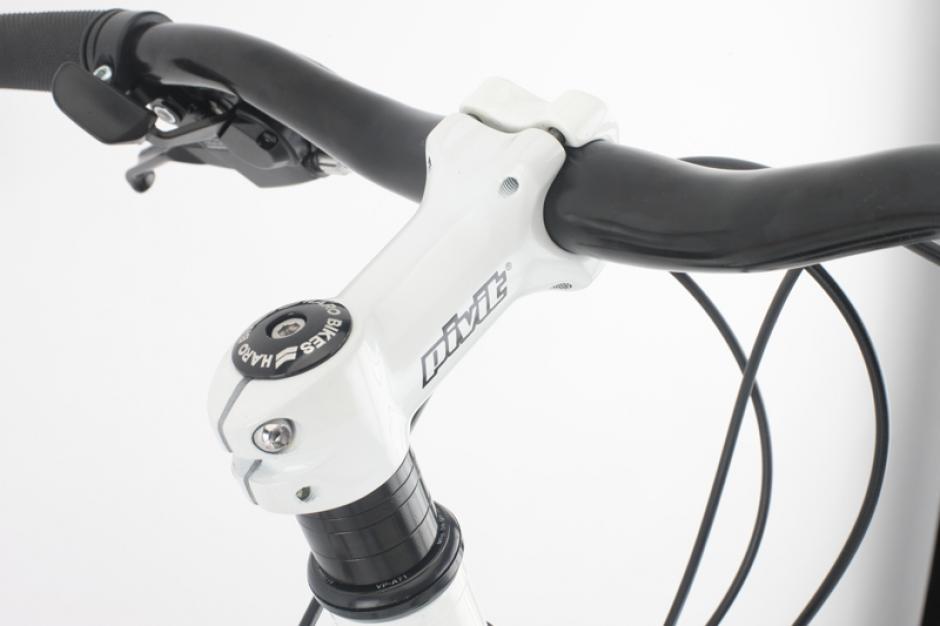

StemPivit Alloy
SaddleHaro Sport
SeatpostPivit Alloy Micro Adjust, 30.9mm diameter

Wheels & Tires

HubsPivit Alloy
RimsWeinmann ZAC-19, 32-hole
SpokesStainless, 14ga. (2.0mm) butted
Front TireKenda Kadre 2.1

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes42/34/24T · 11–32T · 8-speed
Lowest0.75:1 Highest3.82:1 Total range509%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
Shimano HG-50
Seatpost · Original
Pivit Alloy Micro Adjust

30.9mm diameter

Crankset · Original
Shimano FC-M311

24/34/42 teeth

More parts (1)Fewer parts
Rear derailleur · Original
Shimano Acera

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Kenda Kadre 2.1
Drivetrain
8-speed
Seatpost diameter
30.9 mm
Bottom bracket / shell
Sealed
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: SR Suntour XCT V2, 100mm travel · Single

Archived: Fork: SR Suntour XCT V2, 100mm travel

Archived: Group: Mountain Mix · Front derailleur: Shimano M190A · Rear derailleur: Shimano Acera · Crankset: Shimano FC-M311, 24/34/42 teeth · Bottom bracket: Sealed · Cassette: Shimano HG-40 · Rear cogs: 8-speed, 11 - 32 teeth · Chain: Shimano HG-50

Archived: Brakes: Promax DSK-320 brakes, Shimano EF-50 levers

Archived: Rims: Weinmann ZAC-19, 32-hole · Hubs: Pivit Alloy · Front tire: Kenda Kadre 2.1

Controls and contact points

Archived: Headset: Aheadset OS · Handlebar: Pivit Riser Bar · Stem: Pivit Alloy · Seatpost: Pivit Alloy Micro Adjust, 30.9mm diameter · Saddle: Haro Sport · Pedals: ATB Caged
