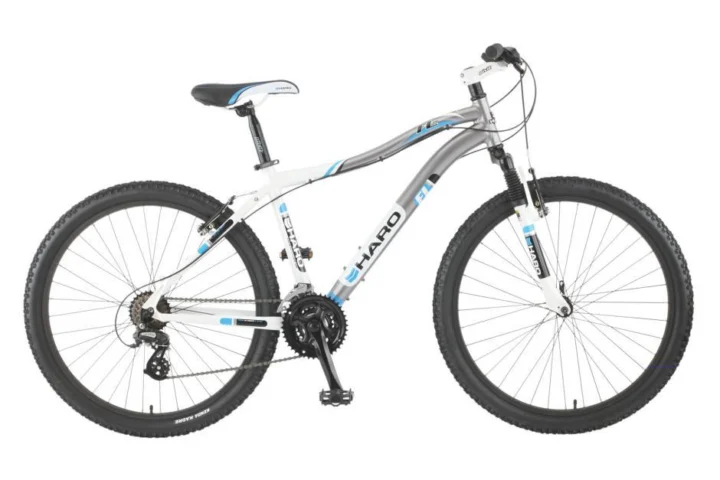

2011 Haro Flightline One

Original specifications: Shimano Altus · 7-speed rear derailleur.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #22237
Model year
2011
Category
Mountain
Sizes
15", 17", 19", 21"
Colors
Gloss Black, SG Ano White
In this record
24 specifications · 10 archived images
Model history 4 other years

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
Gloss Black, SG Ano White
Frame
Flightline 6061 T6 oversize Alloy
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildFlightline 6061 T6 oversize Alloy · Mountain Mix

Historical catalog variants

Archived sizes and colors

8 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

15"17"19"21"

Published colors

Gloss BlackSG Ano White
View 8 archived size/color combinations
SizeColor
15"Gloss Black
17"Gloss Black
19"Gloss Black
21"Gloss Black
15"SG Ano White
17"SG Ano White
19"SG Ano White
21"SG Ano White

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded

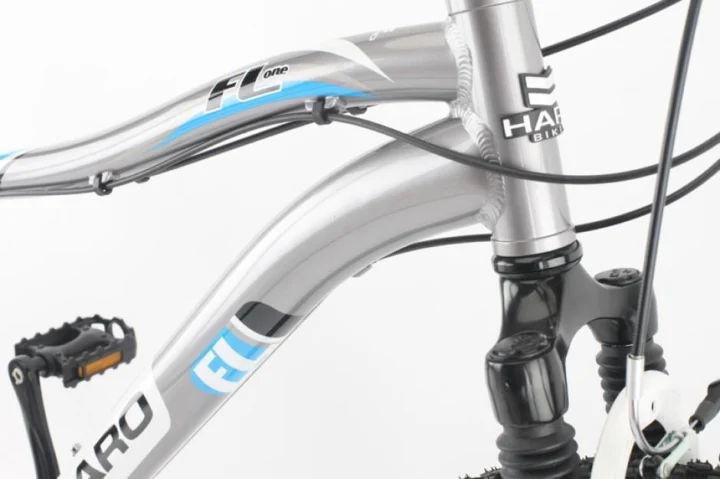

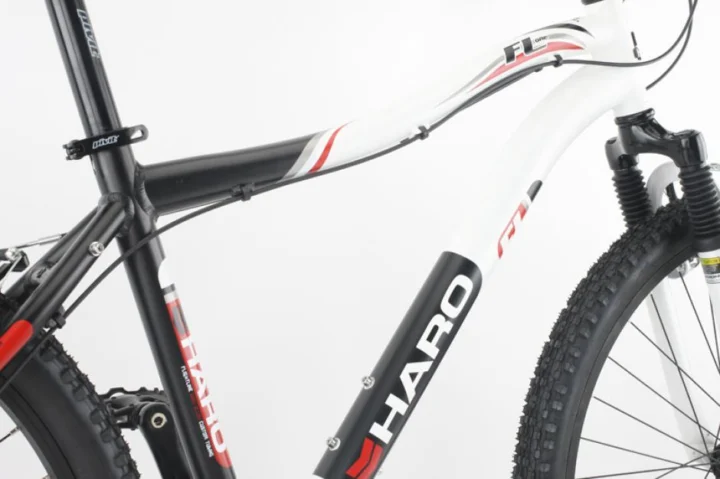

Frame MaterialFlightline 6061 T6 oversize Alloy

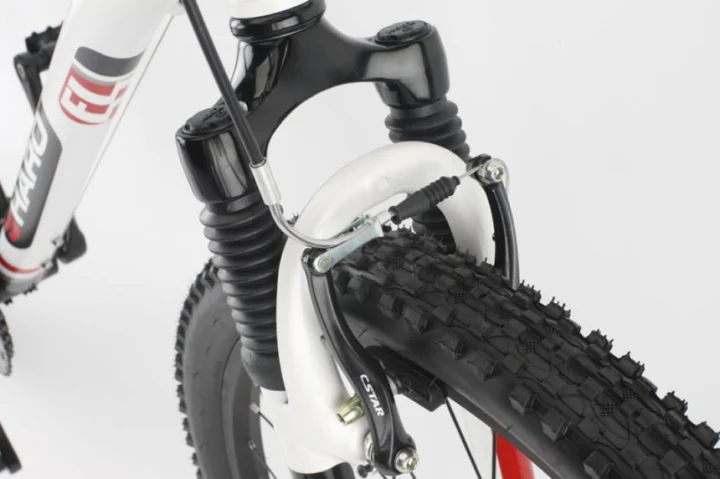

ForkHaro, 30mm travel
Fork MaterialSingle

Drivetrain

Component GroupMountain Mix

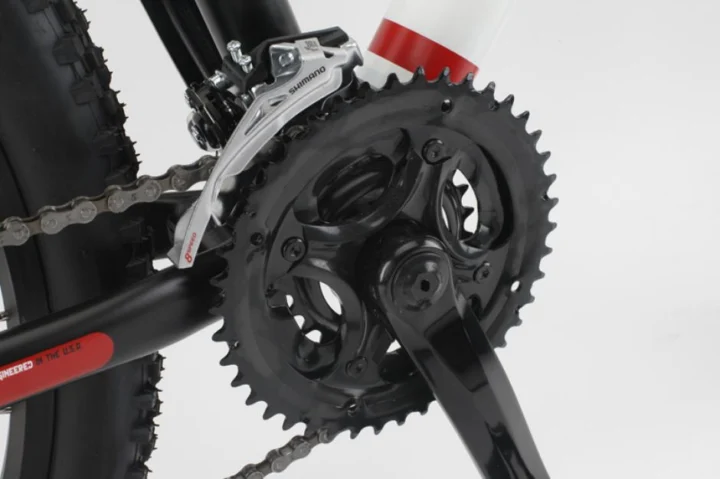

Front DerailleurShimano M190A

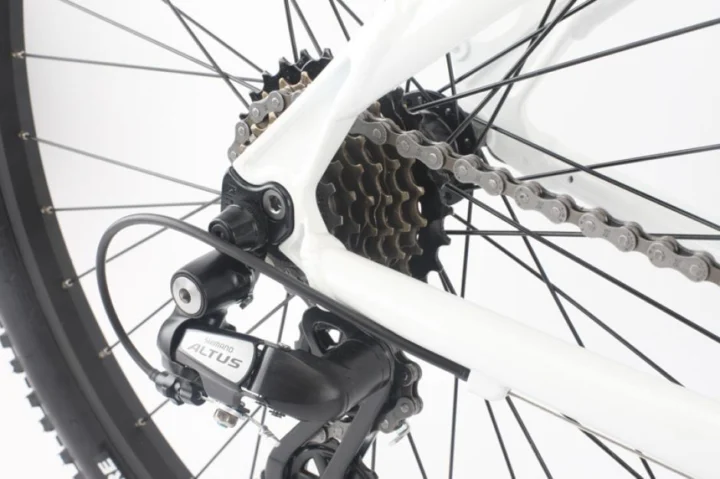

Rear DerailleurShimano Altus
CranksetForged Alloy, 24/34/42 teeth
Bottom BracketSealed
CassetteSunrace
Rear Cogs7-speed, 13 - 28 teeth
ChainKMC Z-50
PedalsNylon ATB

Brakes

BrakesAlloy brakes, Shimano EF-50 levers

Cockpit & Contact Points

HeadsetAheadset OS

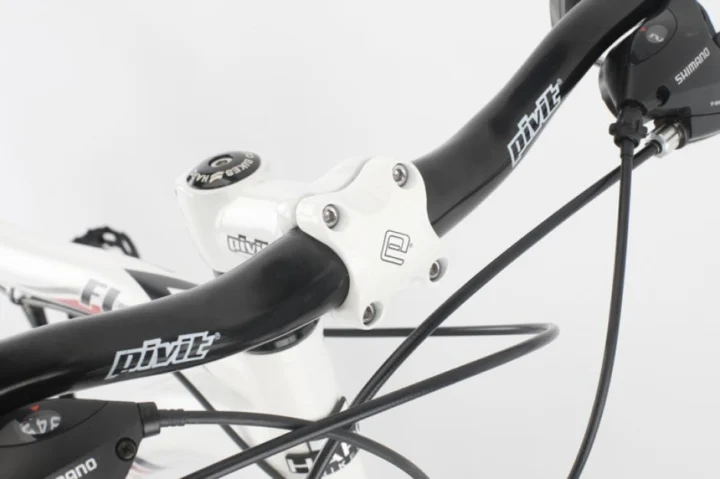

HandlebarPivit Riser Bar
Handlebar ExtensionsNot included

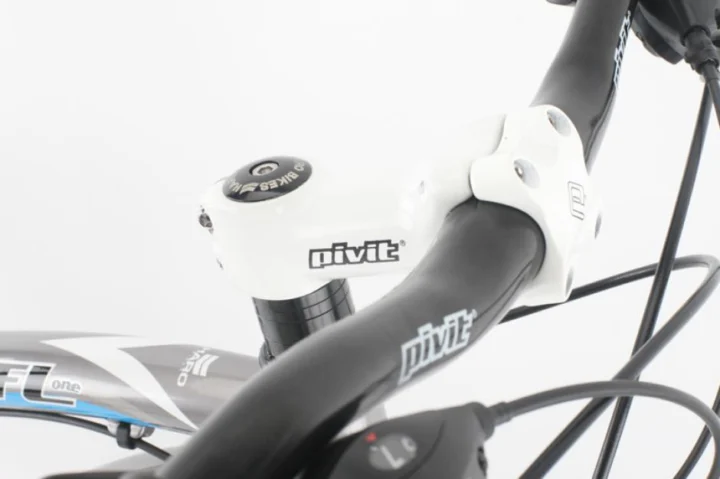

StemPivit Alloy
SaddleHaro Sport
SeatpostPivit Alloy, 30.9mm diameter

Wheels & Tires

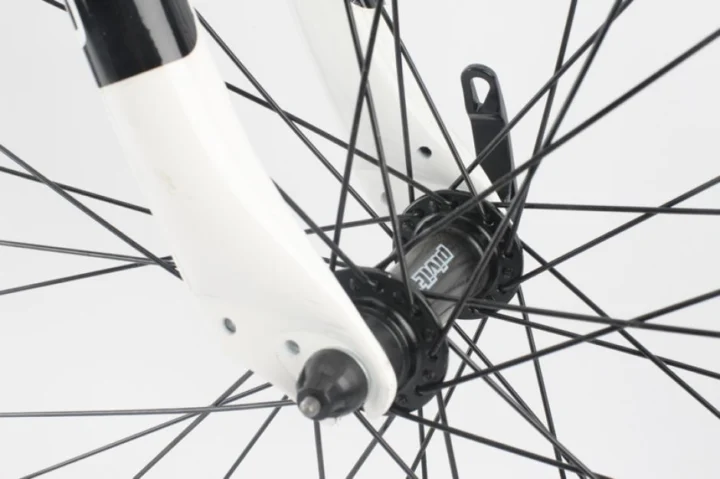

HubsPivit Alloy
RimsWeinmann CN-520, 36-hole
SpokesStainless, 14ga. (2.0mm) butted
Front TireKenda Kadre 2.1

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes42/34/24T · 13–28T · 7-speed
Lowest0.86:1 Highest3.23:1 Total range377%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Seatpost · Original
Pivit Alloy

30.9mm diameter

Chain · Original
KMC Z-50
Rear derailleur · Original
Shimano Altus

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Kenda Kadre 2.1
Drivetrain
7-speed
Seatpost diameter
30.9 mm
Bottom bracket / shell
Sealed
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Haro, 30mm travel · Single

Archived: Fork: Haro, 30mm travel

Archived: Group: Mountain Mix · Front derailleur: Shimano M190A · Rear derailleur: Shimano Altus · Crankset: Forged Alloy, 24/34/42 teeth · Bottom bracket: Sealed · Cassette: Sunrace · Rear cogs: 7-speed, 13 - 28 teeth · Chain: KMC Z-50

Archived: Brakes: Alloy brakes, Shimano EF-50 levers

Archived: Rims: Weinmann CN-520, 36-hole · Hubs: Pivit Alloy · Front tire: Kenda Kadre 2.1

Controls and contact points

Archived: Headset: Aheadset OS · Handlebar: Pivit Riser Bar · Stem: Pivit Alloy · Seatpost: Pivit Alloy, 30.9mm diameter · Saddle: Haro Sport · Pedals: Nylon ATB
