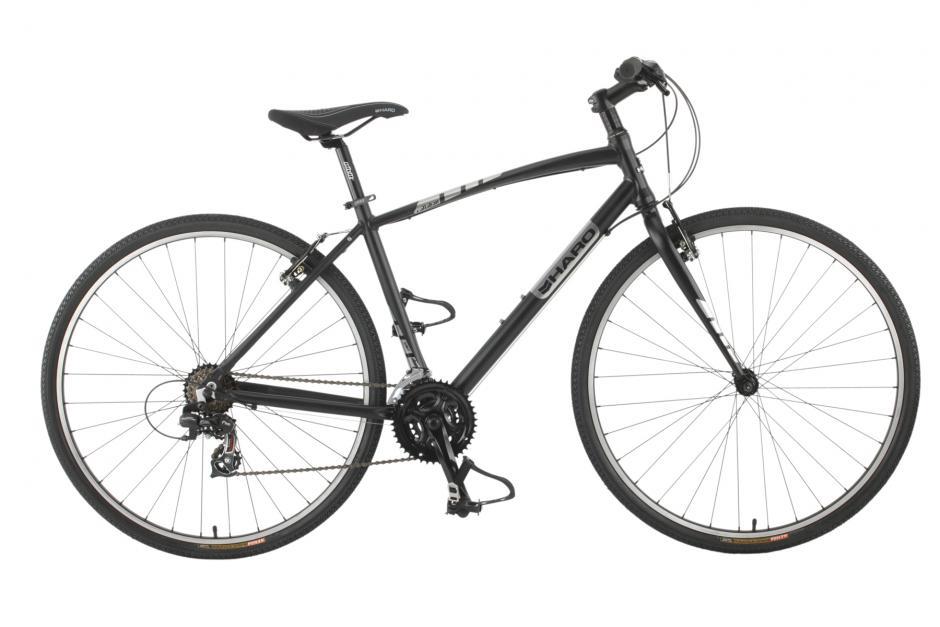

2011 Haro Callahan

Original specifications: Comfort Mix drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #22269
Model year
2011
Category
City & Commuter
Sizes
16", 18", 20", 22"
Colors
SG Black, Royal Blue
In this record
25 specifications · 7 archived images
Original build6061 T6 aluminum · Comfort Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

8 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

16"18"20"22"

Published colors

SG BlackRoyal Blue
View 8 archived size/color combinations
SizeColor
16"SG Black
18"SG Black
20"SG Black
22"SG Black
16"Royal Blue
18"Royal Blue
20"Royal Blue
22"Royal Blue

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

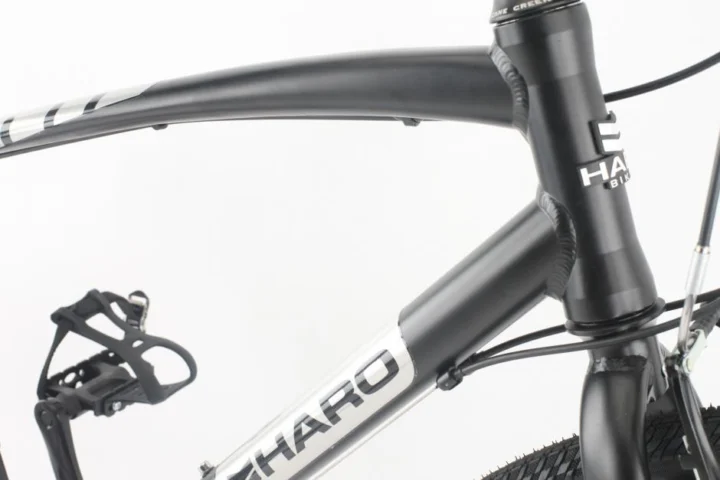

Frame ConstructionTIG-welded
Frame Material6061 T6 aluminum
Fork700c alloy
Fork MaterialSingle

Drivetrain

Component GroupComfort Mix
Front DerailleurShimano C051

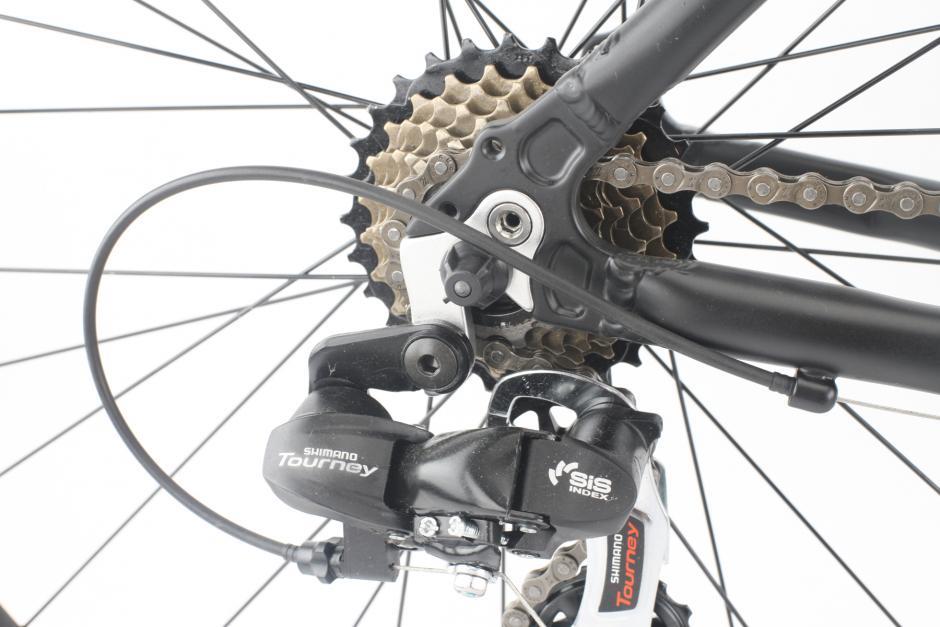

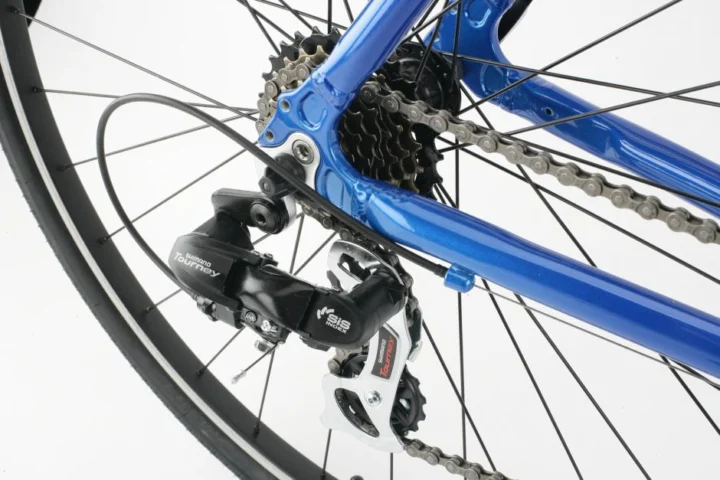

Rear DerailleurShimano Tourey
CranksetForged Alloy, 24/34/42 teeth
Bottom BracketSealed
CassetteShimano Tourney
Rear Cogs7-speed, 14 - 28 teeth
ChainKMC Z50
PedalsWellgo nylon body w/ alloy cage

Brakes

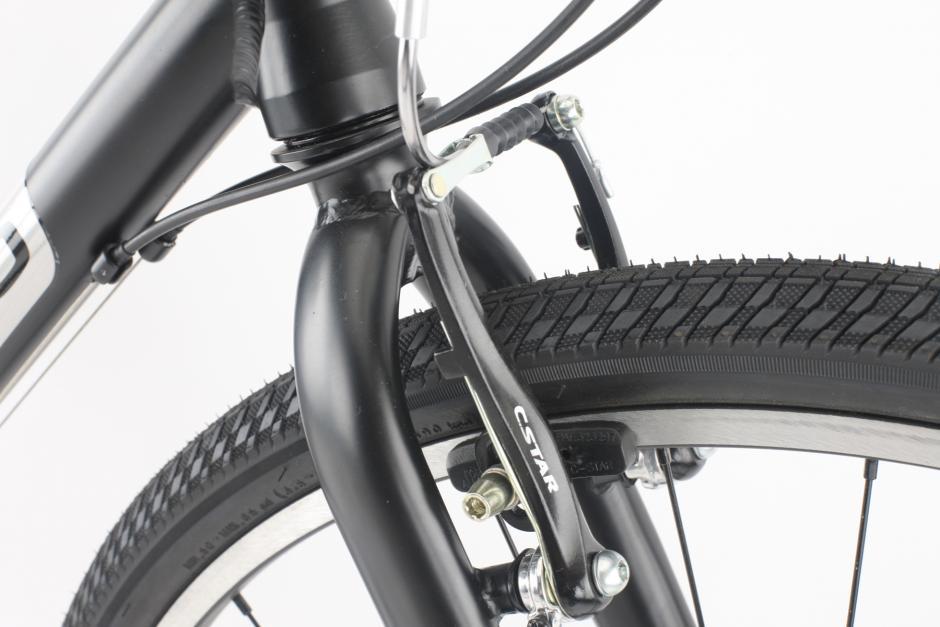

BrakesTektro Direct pull brakes, Shimano EF-50 levers

Cockpit & Contact Points

HeadsetAheadset OS

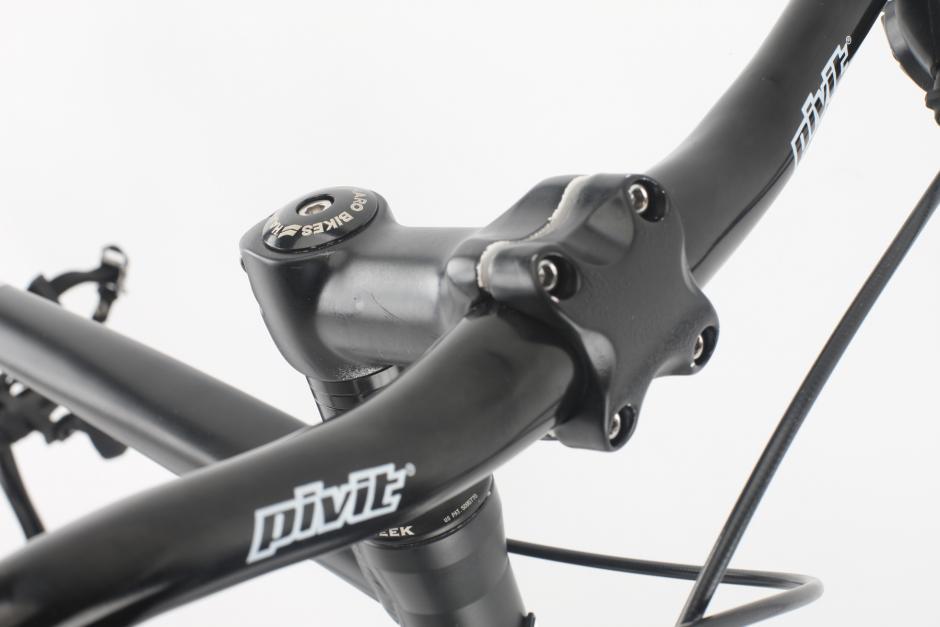

HandlebarPivit Riser Bar
Handlebar ExtensionsNot included
StemPivit Alloy
SaddleHaro Race
SeatpostAlloy Micro Adjust, 27.2mm diameter

Wheels & Tires

HubsAlloy
RimsWeinmann AS23X, 36-hole
SpokesStainless, 14ga. (2.0mm) butted
Front Tire700 x 38c Kenda KwikTrax
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42/34/24T · 14–28T · 7-speed
Lowest0.86:1 Highest3.00:1 Total range350%
Estimated speed At 90 RPM Lowest gear6.3 mph Highest gear22.1 mph

Uses front tire 700C×38; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 38c Kenda KwikTrax
Seatpost · Original
Alloy Micro Adjust

27.2mm diameter

Chain · Original
KMC Z50
More parts (1)Fewer parts
Pedals · Original
Wellgo nylon body w/ alloy cage

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 38c Kenda KwikTrax
Drivetrain
7-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
Sealed
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: 700c alloy · Single

Archived: Group: Comfort Mix · Front derailleur: Shimano C051 · Rear derailleur: Shimano Tourey · Crankset: Forged Alloy, 24/34/42 teeth · Bottom bracket: Sealed · Cassette: Shimano Tourney · Rear cogs: 7-speed, 14 - 28 teeth · Chain: KMC Z50

Archived: Brakes: Tektro Direct pull brakes, Shimano EF-50 levers

Archived: Wheel size: 700c wheels · Rims: Weinmann AS23X, 36-hole · Hubs: Alloy · Front tire: 700 x 38c Kenda KwikTrax

Controls and contact points

Archived: Headset: Aheadset OS · Handlebar: Pivit Riser Bar · Stem: Pivit Alloy · Seatpost: Alloy Micro Adjust, 27.2mm diameter · Saddle: Haro Race · Pedals: Wellgo nylon body w/ alloy cage
