Uses front tire 700C×38; rear size isn’t listed.
Velopedia Bicycle Archive
2011 Haro Amos
Original specifications: Shimano Alivio · 8-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #22268- Model year
- 2011
- Category
- City & Commuter
- Sizes
- 16", 18", 20", 22"
- Colors
- Really Red
- In this record
- 25 specifications · 3 archived images
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2011 archived details
- Published colors
- Really Red
- Frame
- 6061 T6 aluminum
- Original equipment
- Comfort Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061 T6 aluminum · Comfort Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 T6 aluminum |
| Fork | 700c alloy |
| Fork Material | Single |
Drivetrain
| Component Group | Comfort Mix |
|---|---|
| Front Derailleur | Shimano C051 |

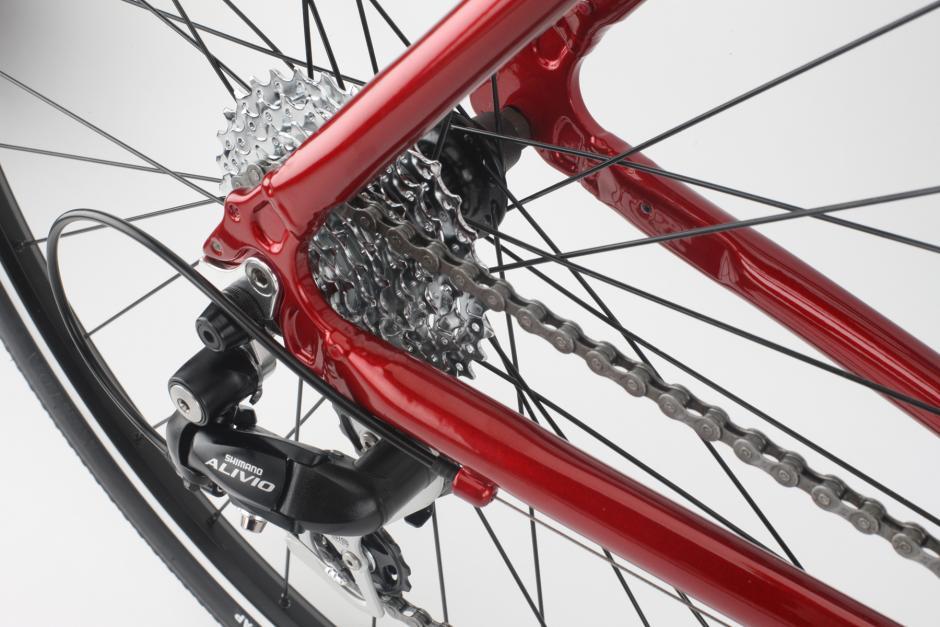

| Rear Derailleur | Shimano Alivio |
| Crankset | FSA 8TTT, 28/38/48 teeth |
| Bottom Bracket | Sealed |
| Cassette | Shimano atlus |
| Rear Cogs | 8-speed, 11 - 30 teeth |
| Chain | KMC Z72 |
| Pedals | Wellgo nylon body w/ alloy cage |
Brakes

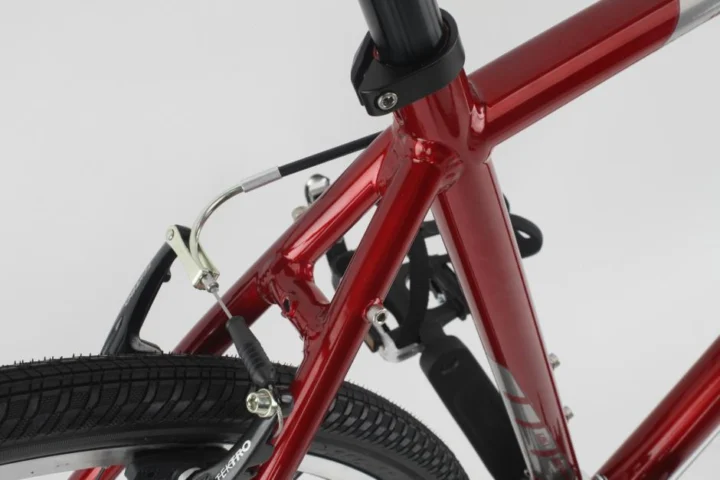

| Brakes | Tektro Direct pull brakes, Shimano EF-50 levers |
|---|
Cockpit & Contact Points
| Headset | FSA Drop In |
|---|---|
| Handlebar | Ritchey Mountain Flat OS bar |
| Handlebar Extensions | Not included |
| Stem | Pivit Alloy |
| Saddle | Haro Race |
| Seatpost | Alloy Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Alloy |
|---|---|
| Rims | Weinmann ZAC-19, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) butted |
| Front Tire | 700 x 38c Kenda KwikTrax |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
27.2mm diameter
More parts (4)Fewer parts
28/38/48 teeth
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 38c Kenda KwikTrax
- Drivetrain
- 8-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Sealed
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: 700c alloy · Single
Drivetrain
Check drivetrain wear →Archived: Group: Comfort Mix · Front derailleur: Shimano C051 · Rear derailleur: Shimano Alivio · Crankset: FSA 8TTT, 28/38/48 teeth · Bottom bracket: Sealed · Cassette: Shimano atlus · Rear cogs: 8-speed, 11 - 30 teeth · Chain: KMC Z72
Brakes
Inspect the brakes →Archived: Brakes: Tektro Direct pull brakes, Shimano EF-50 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Weinmann ZAC-19, 32-hole · Hubs: Alloy · Front tire: 700 x 38c Kenda KwikTrax
Controls and contact points
Archived: Headset: FSA Drop In · Handlebar: Ritchey Mountain Flat OS bar · Stem: Pivit Alloy · Seatpost: Alloy Micro Adjust, 27.2mm diameter · Saddle: Haro Race · Pedals: Wellgo nylon body w/ alloy cage
