Velopedia Bicycle Archive

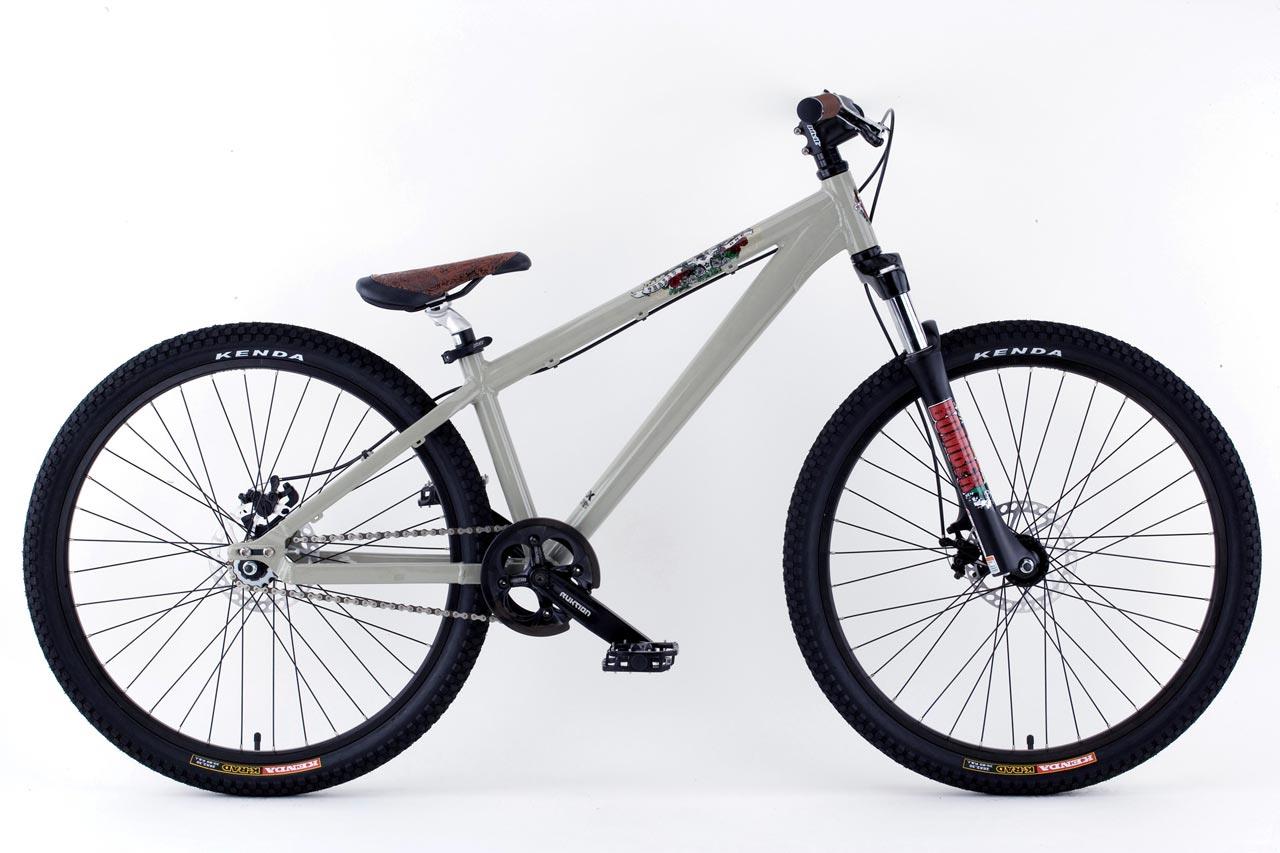

2009 Haro Thread One
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $830.00
- Sizes
- 13" short, 13" long
- Colors
- Concrete
- Archive ID
- 18127
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7075-T6 Aluminum |
| Fork | Marzocchi Dirt Jumper 3, 80mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Single Speed Mix |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Truvativ Ruktion 1.0 BG, 34 teeth |
| Bottom Bracket | TruVativ Howitzer |
| Cassette | Cog |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC 610 |
| Pedals | Pivit Platform w/Replaceable Pins |
Brakes
| Brakes | Hayes MX-4 mechanical w/6" rotor brakes, Tektro alloy levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Syncros Hardcore |
|---|---|
| Handlebar | Syncros Riser |
| Handlebar Extensions | Not included |
| Stem | Pivit Alloy |
| Saddle | Haro Slim |
| Seatpost | Alloy Micro Adjust, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Pivit Disc, Rear: Pivit alloy singlespeed disc |
|---|---|
| Rims | Sun Hill Rod, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.30" Kenda K-Rad |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
