Velopedia Bicycle Archive

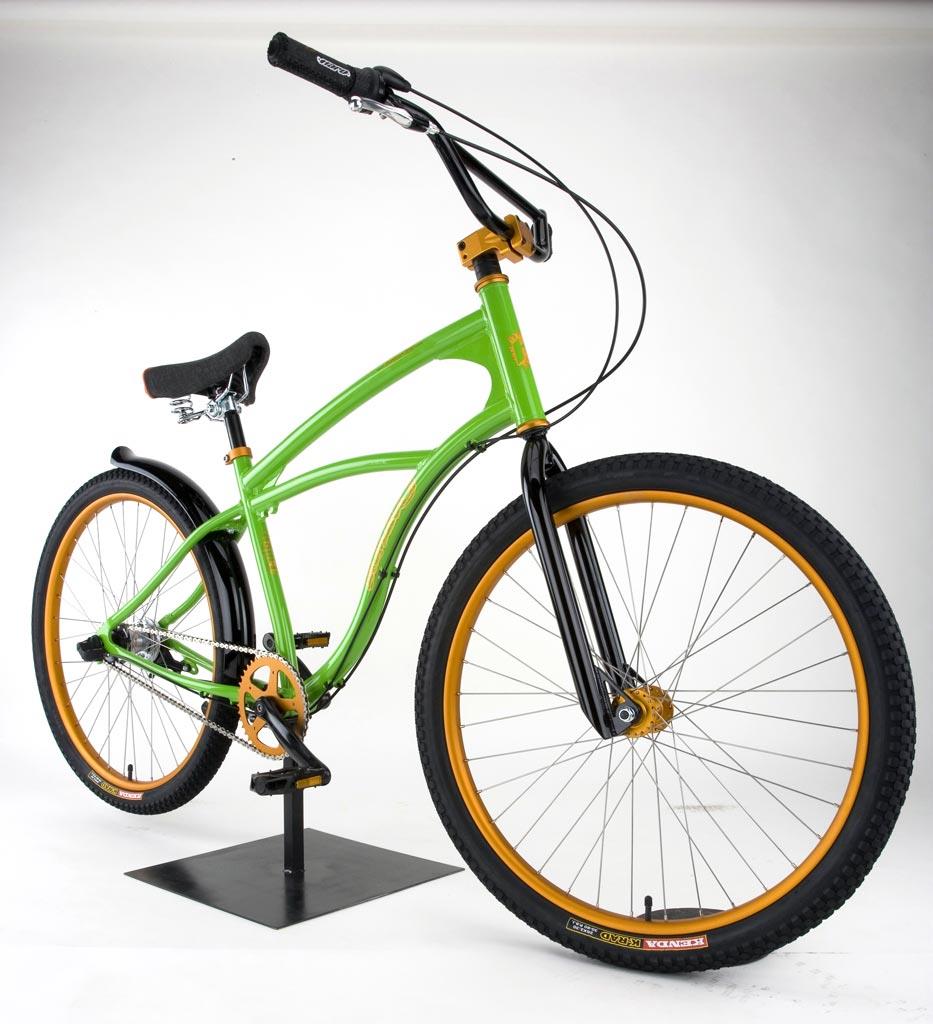

2009 Haro Railer XS
Cruiser bicycle from the Velopedia specification archive.
- Original MSRP
- $525.00
- Sizes
- 17"
- Colors
- Gremlin Green, Tamarack Sand
- Archive ID
- 18125
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 aluminum |
| Fork Material | Unicrown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Cruiser Mix |
|---|---|
| Shifters | Shimano Nexus 3 Revo Twist |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Alloy 3-Piece, 42 teeth |
| Bottom Bracket | Sealed |
| Cassette | Shimano |
| Rear Cogs | 3-speed, 20 teeth |
| Chain | KMC Z410 |
| Pedals | Wellgo Platform |
Brakes
| Brakes | None front/Shimano roller brake rear brakes, Tektro alloy rear levers |
|---|
Cockpit & Contact Points
| Headset | Alloy |
|---|---|
| Handlebar | Haro Custom Railer Bar |
| Handlebar Extensions | Not included |
| Stem | BMX Alloy |
| Saddle | Haro Railer w/springs |
| Seatpost | Alloy, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Alloy, Rear: Shimano Nexus 3 speed Internal Gear |
|---|---|
| Rims | Alloy, 36-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 26 x 2.125" Haro Cruiser |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
