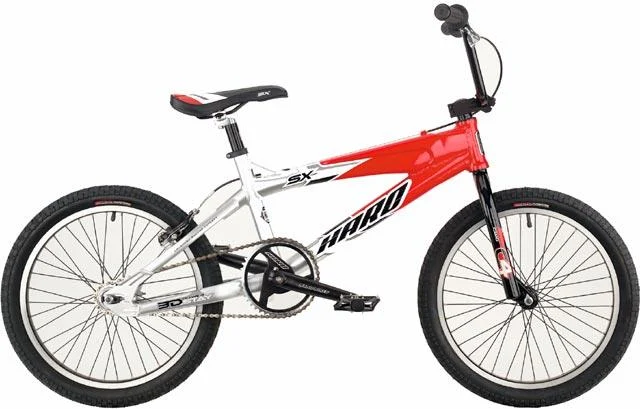

2006 Haro Group 1 SX Comp

Original specifications: 20" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #11353
Model year
2006
Category
BMX
Colors
Real Red, Royal Blue
In this record
23 specifications · archived image
Model history 3 other years

Browse other years

Compare side by side

Identification clues

2006 archived details

Published colors
Real Red, Royal Blue
Frame
Aluminum
Original equipment
N/A

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildAluminum · 20" wheels

Historical catalog variants

Archived sizes and colors

2 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published colors

Real RedRoyal Blue
View 2 archived size/color combinations
SizeColor
—Real Red
—Royal Blue

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialAluminum
ForkHaro
Fork MaterialChromoly, unicrown crown

Drivetrain

CranksetTruvativ Racing XR, 41 teeth
Bottom BracketTruvativ ISIS Euro DHLT
Rear Cogs1-speed, 15 teeth
ChainKMC Z410
PedalsHaro DX Alloy w/Threaded Pins

Brakes

BrakesTektro Direct Pull rear brakes, Tektro Alloy rear levers

Cockpit & Contact Points

Headset1 1/8" integrated FSA No. 10 Internal Cup
HandlebarSledgehammer 2k 8" Full Crmo
Handlebar ExtensionsNot included
StemHaro 45 Degree
SaddleHaro Race
SeatpostHaro Alloy Micro Adjust, 30.6mm diameter

Wheels & Tires

HubsFront: Haro BMX Race, Rear: Haro BMX Race cassette
RimsSun Rhyno Lite, 36-hole
SpokesStainless steel, 14ga. (2.0mm) straight gauge
Spoke NipplesBrass nipples
Front Tire20 x 2.10" Haro Catapult
Rear Tire20 x 1.85" Haro Catapult
Wheel Size20" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

Published build41T · 15T · 1-speed
Ratio2.73:1
Estimated speed At 90 RPM Gear14.4 mph

Rear tire: 20×1.85.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Seatpost · Original
Haro Alloy Micro Adjust

30.6mm diameter

Headset · Original
1 1/8" integrated FSA No. 10 Internal Cup

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Front: 20 x 2.10" Haro Catapult, Rear: 20 x 1.85" Haro Catapult
Drivetrain
1-speed
Seatpost diameter
30.6 mm
Bottom bracket / shell
Truvativ ISIS Euro DHLT
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Haro · Chromoly, unicrown crown

Archived: Crankset: Truvativ Racing XR, 41 teeth · Bottom bracket: Truvativ ISIS Euro DHLT · Rear cogs: 1-speed, 15 teeth · Chain: KMC Z410

Archived: Brakes: Tektro Direct Pull rear brakes, Tektro Alloy rear levers

Archived: Wheel size: 20" wheels · Rims: Sun Rhyno Lite, 36-hole · Hubs: Front: Haro BMX Race, Rear: Haro BMX Race cassette · Front tire: Front: 20 x 2.10" Haro Catapult, Rear: 20 x 1.85" Haro Catapult

Controls and contact points

Archived: Headset: 1 1/8" integrated FSA No. 10 Internal Cup · Handlebar: Sledgehammer 2k 8" Full Crmo · Stem: Haro 45 Degree · Seatpost: Haro Alloy Micro Adjust, 30.6mm diameter · Saddle: Haro Race · Pedals: Haro DX Alloy w/Threaded Pins
