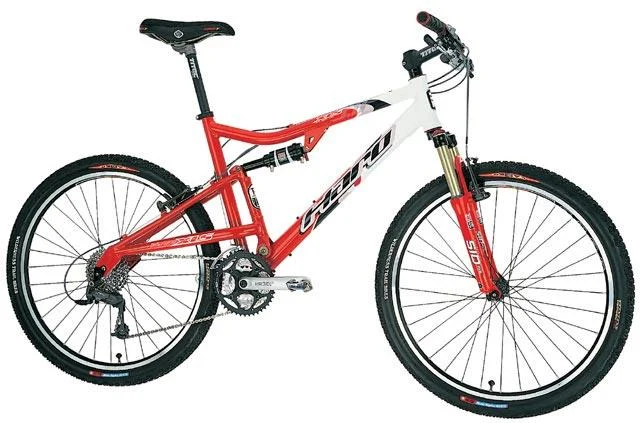

2001 Haro Werks XLS 3.0

Original specifications: Shimano XTR · 9-speed · mechanical rear derailleur · 26" wheels · 25.8 lb published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #91090
Model year
2001
Category
Mountain
Original MSRP
$2,500.00
Sizes
16", 17.5", 19.5"
Colors
White/Red 2-Tone
Weight
25.8 lb
Geometry
Legacy reference
In this record
28 specifications · archived image · original MSRP · geometry
Model history 2 other years

Browse other years

Compare side by side

Identification clues

2001 archived details

Published colors
White/Red 2-Tone
Frame
7005 T6 aluminum, double-butted
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build7005 T6 aluminum, double-butted · Mountain Mix · 26" wheels

Manufacturer catalog

Published sizes and colors

3 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

16"17.5"19.5"

Published colors

White/Red 2-Tone

Frameset

Frame ConstructionTIG-welded
Frame Material7005 T6 aluminum, double-butted
ForkRock Shox Sid SL, 3.15" travel
Fork MaterialAluminum/magnesium, triple-clamp crown
Rear ShockRockShox SID XC Adjust, 4.0" travel

Drivetrain

Component GroupMountain Mix
ShiftersShimano Deore XT RapidFire SL
Front DerailleurShimano Deore XT top-swing, bottom-pull/clamp-on 35.0mm
Rear DerailleurShimano XTR SGS
CranksetShimano Deore XT, 22/32/44 teeth
Bottom BracketShimano BB-ES70, 110.5mm spindle
BB Shell Width68mm English
Rear Cogs9-speed, 11 - 34 teeth
ChainShimano CN-HG92, 1/2 x 3/32"
PedalsShimano PD-M858 SPD

Brakes

BrakesAvid Single Digit Magnesium brakes, Shimano Deore XT RapidFire SL levers

Cockpit & Contact Points

Headset1 1/8" threadless WTB Momentum Comp AL Grease Guard
HandlebarTitec Hell Bent Flat Tracker
Handlebar ExtensionsNot included
StemTitec Big AL
SaddleWTB SSTX, titanium rails
SeatpostTitec X-Wing Pro, 31.6mm diameter

Wheels & Tires

HubsShimano XTR
RimsWTB Laser Beam, 32-hole
SpokesWTB stainless steel, 1.8mm front, 2.0mm rear double-butted
Spoke NipplesAluminum nipples
Front Tire26 x 2.10" WTB NanoRaptor
Wheel Size26" wheels

Geometry

Legacy reference · 5 measurements

Historical measurements. Frame size unknown.

All geometry measurementsLegacy reference · 5 measurements
MeasurementLegacy reference
Top tube589.3 mm
Head-tube angle70.5°
Seat-tube angle73°
Chainstay / rear center424.2 mm
Wheelbase1079.5 mm

Frame size not recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/32/22T · 11–34T · 9-speed
Lowest0.65:1 Highest4.00:1 Total range618%
Estimated speed At 90 RPM Lowest gear4.5 mph Highest gear28.1 mph

Uses front tire 26×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
Shimano CN-HG92

1/2 x 3/32"

Front tire · Original
26 x 2.10" WTB NanoRaptor
More parts (9)Fewer parts
Bottom bracket · Original
Shimano BB-ES70

110.5mm spindle

Pedals · Original
Shimano PD-M858 SPD
Saddle · Original
WTB SSTX

titanium rails

Crankset · Original
Shimano Deore XT

22/32/44 teeth

Rear derailleur · Original
Shimano XTR SGS
Shifters · Original
Shimano Deore XT RapidFire SL
Headset · Original
1 1/8" threadless WTB Momentum Comp AL Grease Guard
Rims · Original
WTB Laser Beam

32-hole

Hubs · Original
Shimano XTR

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.10" WTB NanoRaptor
Drivetrain
9-speed
Seatpost diameter
31.6 mm
Bottom bracket / shell
Shimano BB-ES70, 110.5mm spindle · 68mm English
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Rock Shox Sid SL, 3.15" travel · Aluminum/magnesium, triple-clamp crown

Archived: Fork: Rock Shox Sid SL, 3.15" travel · Rear shock: RockShox SID XC Adjust, 4.0" travel

Archived: Group: Mountain Mix · Shifters: Shimano Deore XT RapidFire SL · Front derailleur: Shimano Deore XT top-swing, bottom-pull/clamp-on 35.0mm · Rear derailleur: Shimano XTR SGS · Crankset: Shimano Deore XT, 22/32/44 teeth · Bottom bracket: Shimano BB-ES70, 110.5mm spindle · Rear cogs: 9-speed, 11 - 34 teeth · Chain: Shimano CN-HG92, 1/2 x 3/32"

Archived: Brakes: Avid Single Digit Magnesium brakes, Shimano Deore XT RapidFire SL levers

Archived: Wheel size: 26" wheels · Rims: WTB Laser Beam, 32-hole · Hubs: Shimano XTR · Front tire: 26 x 2.10" WTB NanoRaptor

Controls and contact points

Archived: Headset: 1 1/8" threadless WTB Momentum Comp AL Grease Guard · Handlebar: Titec Hell Bent Flat Tracker · Stem: Titec Big AL · Seatpost: Titec X-Wing Pro, 31.6mm diameter · Saddle: WTB SSTX, titanium rails · Pedals: Shimano PD-M858 SPD
