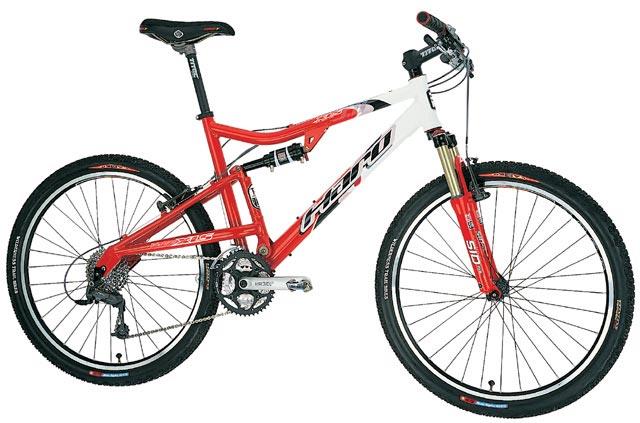

2002 Haro Werks XLS 3.0
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $2,299.00
- Sizes
- 16", 17.5", 19.5"
- Colors
- White/Red 2-Tone
- Weight
- 25
- Archive ID
- 91369
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 T6 aluminum, double-butted |
| Fork | Rock Shox Sid SL, 3.15" travel |
| Fork Material | Aluminum, single triple-clamp crown |
| Rear Shock | Rock Shox Sid XC, 4.0" travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore XT RapidFire SL |
| Front Derailleur | Shimano Deore XT top-swing, top-pull/clamp-on 35.0mm |
| Rear Derailleur | Shimano XTR SGS |
| Crankset | Shimano Deore XT, 22/32/44 teeth |
| Bottom Bracket | Shimano BB-ES70, 110.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano CN-HG92, 1/2 x 3/32" |
| Pedals | Shimano PD-M858 SPD |
Brakes
| Brakes | Avid Single Digit Ti brakes, Avid Speed Dial Ti levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless WTB Inner Peace C |
|---|---|
| Handlebar | Titec Hell Bent Flat Tracker |
| Handlebar Extensions | Not included |
| Stem | Titec Fast Al |
| Saddle | WTB Laser V |
| Seatpost | Titec X-Wing Pro, 30.9mm diameter |
Wheels & Tires
| Hubs | Shimano XTR |
|---|---|
| Rims | WTB Laser Beam, 32-hole |
| Spokes | WTB stainless steel, 14/15 ga. (2.0/1.8mm) double-butted |
| Spoke Nipples | Alloy nipples |
| Front Tire | 26 x 2.10" WTB NanoRaptor Laser |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
