Lowest0.65:1
Highest4.00:1
Total range618%
Velopedia Bicycle Archive
At a glance
Archive #2024102- Model year
- 2012
- Category
- Mountain
- Sizes
- S, M, L, XL
- Colors
- Black, Blue
- In this record
- 18 specifications · 2 archived images
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2012 archived details
- Published colors
- Black, Blue
- Frame
- hydroformed aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildhydroformed aluminum
Frameset
| Frame Material | hydroformed aluminum |
|---|---|
| Fork | Rock Shox XC28 TurnKey 100mm |
Drivetrain
| Shifters | Shimano Alivio Rapidfire 9spd |
|---|---|
| Front Derailleur | Shimano Acera |
| Rear Derailleur | Shimano Deore Shadow 9 spd |
| Crankset | FSA Dyna Drive 44/32/22T |
| Bottom Bracket | Fsa |
| Cassette | SRAM PG-950 9spd 11-34t |
| Chain | KMC HG-53 |
| Pedals | All Terra Slimline |
Brakes
| Brakes | Tektro Drako 6" |
|---|
Cockpit & Contact Points
| Headset | FSA Integrated |
|---|---|
| Handlebar | All Terra Al-6061 |
| Stem | All Terra 3D |
| Saddle | WTB Pure-V Comp |
| Seatpost | All Terra Microadjust 31.6mm |
Wheels & Tires
| Rims | Alex TD24 32H |
|---|---|
| Front Tire | Maxxis Aspen 29x2.1 Kevlar |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Maxxis Aspen 29x2.1 Kevlar
Retailer offers
Vittoria Barzo G2.0 4C XC Trail 29in Tire Anthracite/Black, XC-Trail/TNT, 29x2.1
Replacement option
Maxxis Aspen Kevlar on eBaySponsored links
All Terra Microadjust 31.6mm
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
KMC HG-53
More parts (7)Fewer parts
WTB Pure-V Comp
FSA Dyna Drive 44/32/22T
Shimano Acera
Shimano Deore Shadow 9 spd
Shimano Alivio Rapidfire 9spd
Alex TD24 32H
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Maxxis Aspen 29x2.1 Kevlar
- Drivetrain
- 9-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- FSA
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: hydroformed aluminum · Fork: Rock Shox XC28 TurnKey 100mm
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Alivio Rapidfire 9spd · Front derailleur: Shimano Acera · Rear derailleur: Shimano Deore Shadow 9 spd · Crankset: FSA Dyna Drive 44/32/22T · Bottom bracket: FSA · Cassette: SRAM PG-950 9spd 11-34t · Chain: KMC HG-53
Brakes
Inspect the brakes →Archived: Brakes: Tektro Drako 6"
Wheels and tires
Check wheels and tires →Archived: Rims: Alex TD24 32H · Front tire: Maxxis Aspen 29x2.1 Kevlar
Controls and contact points
Archived: Headset: FSA Integrated · Handlebar: All Terra Al-6061 · Stem: All Terra 3D · Seatpost: All Terra Microadjust 31.6mm · Saddle: WTB Pure-V Comp · Pedals: All Terra Slimline
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

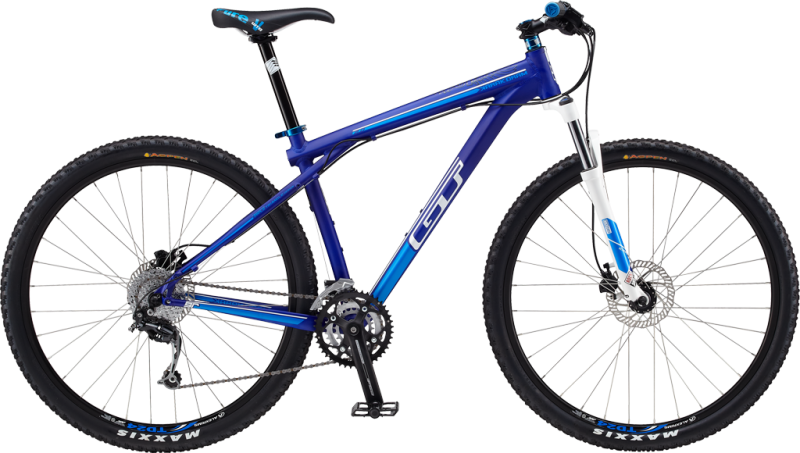

Gallery2 images
