Lowest0.65:1
Highest4.00:1
Total range618%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 29×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

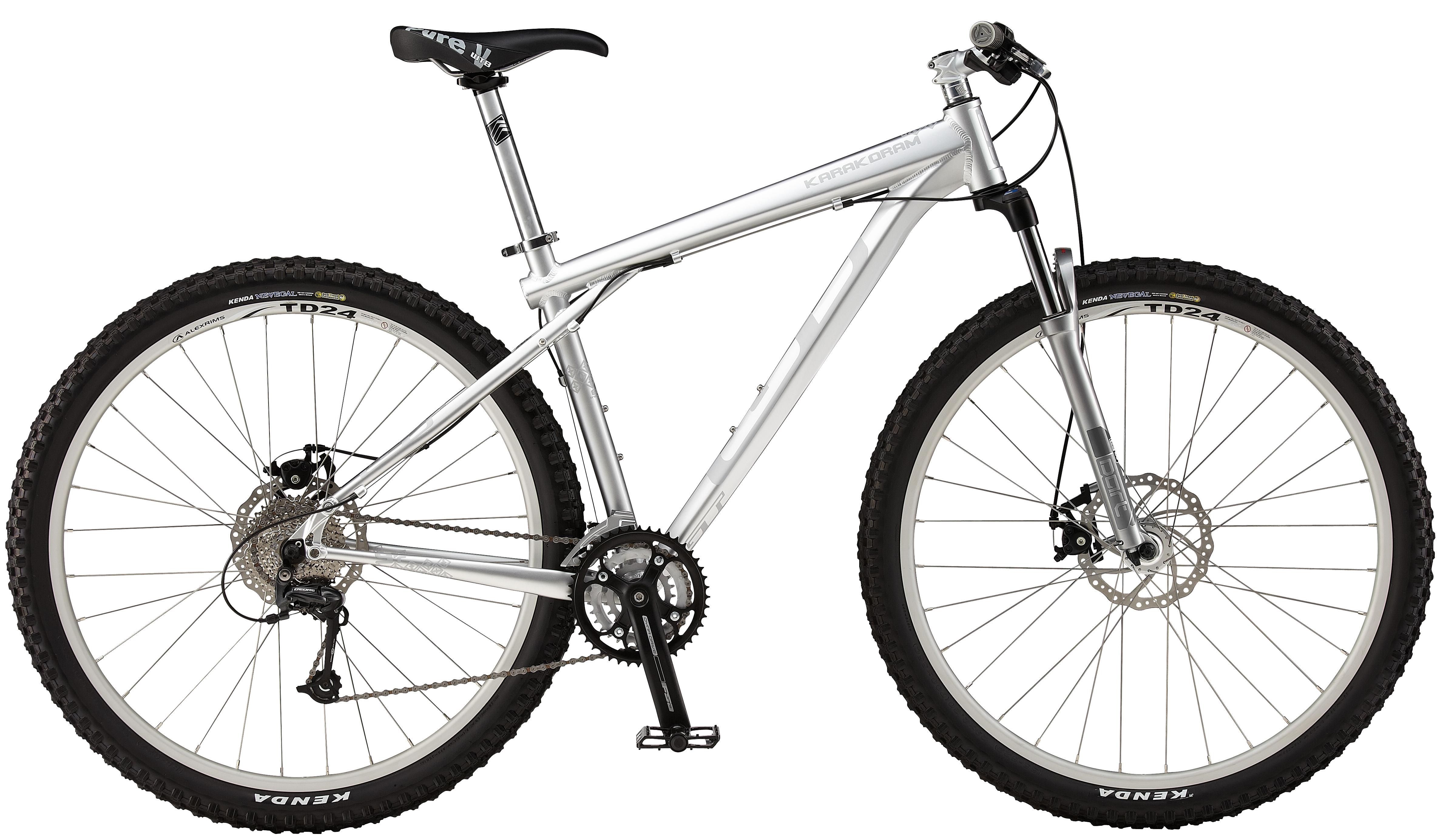

2011 GT Karakoram 2.0
Original specifications: Shimano Alivio · 9-speed rear derailleur · 29" wheels.
Planning to sell? Draft your listing
At a glance
Archive #25043- Model year
- 2011
- Category
- Mountain
- Sizes
- S, M, L, XL
- Colors
- Silver, Red
- In this record
- 26 specifications · 2 archived images
Model history 2 other years
Browse other years
Compare side by side
Identification clues
2011 archived details
- Published colors
- Silver, Red
- Frame
- 6061-T6 aluminum
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061-T6 aluminum · Mountain Mix · 29" wheels
Frameset
| Frame Construction | Aluminum |
|---|---|
| Frame Material | 6061-T6 aluminum |
| Fork | RockShox Dart 3, 100mm travel |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Alivio |
| Front Derailleur | Shimano Alivio |
| Rear Derailleur | Shimano Alivio |
| Crankset | FSA Dyna Drive, 44/32/22t teeth |
| Bottom Bracket | Shimano BB-UN26 |
| Cassette | Shimano CS-HG30 |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Hg53 |
| Pedals | GT Slim Line Flat |
Brakes
| Brakes | Tektro Aquila brakes, Tektro levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" FSA No. 10 |
|---|---|
| Handlebar | All Terra AL6061 Riser |
| Handlebar Extensions | Not included |
| Stem | All Terra |
| Saddle | WTB Pure-V Sport |
| Seatpost | All Terra Alloy Micro-Adjust |
Wheels & Tires
| Hubs | All Terra Alloy Disc |
|---|---|
| Rims | Alex TD-24, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Spoke Nipples | Brass |
| Front Tire | 29 x 2.1'' Kenda Nevegal |
| Wheel Size | 29" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
29 x 2.1'' Kenda Nevegal
Retailer offers
Schwalbe RapidRob Performance 29in Tire Black, Clincher/Wire, 29x2.1
Replacement option
Kenda Nevegal on eBaySponsored links
Shimano BB-UN26
More parts (7)Fewer parts
WTB Pure-V Sport
FSA Dyna Drive
44/32/22t teeth
Shimano Alivio
Shimano Alivio
Shimano Alivio
1 1/8" FSA No. 10
Alex TD-24
32-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 29 x 2.1'' Kenda Nevegal
- Drivetrain
- 9-speed
- Bottom bracket / shell
- Shimano BB-UN26
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Aluminum · Fork: RockShox Dart 3, 100mm travel
Suspension
Evaluate the suspension →Archived: Fork: RockShox Dart 3, 100mm travel
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Alivio · Front derailleur: Shimano Alivio · Rear derailleur: Shimano Alivio · Crankset: FSA Dyna Drive, 44/32/22t teeth · Bottom bracket: Shimano BB-UN26 · Cassette: Shimano CS-HG30 · Rear cogs: 9-speed, 11 - 34 teeth · Chain: HG53
Brakes
Inspect the brakes →Archived: Brakes: Tektro Aquila brakes, Tektro levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" wheels · Rims: Alex TD-24, 32-hole · Hubs: All Terra Alloy Disc · Front tire: 29 x 2.1'' Kenda Nevegal
Controls and contact points
Archived: Headset: 1 1/8" FSA No. 10 · Handlebar: ALL TERRA AL6061 RISER · Stem: All Terra · Seatpost: All Terra Alloy Micro-Adjust · Saddle: WTB Pure-V Sport · Pedals: GT Slim Line Flat
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
