2025 Giant Trinity Advanced SL Time Trial Frameset
Original manufacturer specifications including geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2025
- Category
- Road
- Original MSRP
- $6,000.00
- Sizes
- XS, S, M, L
- Colors
- Carbon/Chrome
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 7 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001213
Frameset
| Frame Construction | Advanced SL-Grade Composite, 12x142mm thru-axle, disc |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc |
| Fork Material | Carbon Fiber |
Cockpit & Contact Points

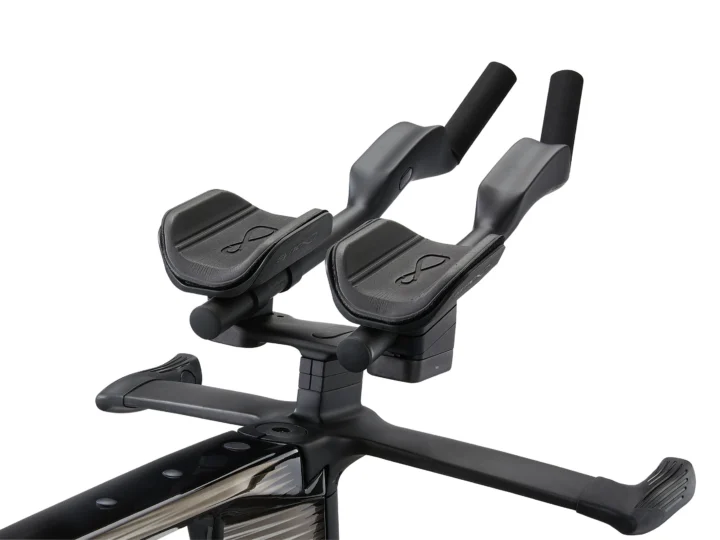

| Handlebar | AeroDrive base bar with Sync armrest set, 10 and 15-degree extension wedge |
|---|---|
| Stem | AeroDrive integrated stem |
| Seatpost | Trinity Composite |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L |
|---|---|---|---|---|
| Seat tube | 477 mm | 508 mm | 538 mm | 565 mm |
| Top tube | 510 mm | 530 mm | 554 mm | 579 mm |
| Head tube | 85 mm | 105 mm | 125 mm | 145 mm |
| Head-tube angle | 72° | 73° | 73° | 73° |
| Seat-tube angle | 77° | 77° | 77° | 77° |
| Chainstay / rear center | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheelbase | 974 mm | 988 mm | 1013 mm | 1039 mm |
| Bottom-bracket drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Reach | 397 mm | 412 mm | 432 mm | 452 mm |
| Stack | 490 mm | 513 mm | 532 mm | 551 mm |
| Standover height | 758 mm | 786 mm | 814 mm | 838 mm |
| Fork offset / rake | 40 mm | 40 mm | 40 mm | 40 mm |
| Trail | 69 mm | 63 mm | 63 mm | 63 mm |
| Crank length | 160 mm | 165 mm | 170 mm | 172.5 mm |
| Handlebar width | 400 mm | 400 mm | 400 mm | 400 mm |
| Wheel size | 700C | 700C | 700C | 700C |
Geometry source: Giant first-party size geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its reach of 397 mm sits toward the longer end. The seat angle of 77° sits toward the steeper end. The chainstay of 405 mm sits toward the shorter rear-center end.
Compared with 59 distinct road geometries in the XS-equivalent size cohort from model years 2023–2027 in the Velopedia archive.S geometry
Archive context: The head angle of 73° sits toward the steeper end. Its reach of 412 mm sits toward the longer end. The seat angle of 77° sits toward the steeper end.
Compared with 83 distinct road geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.M geometry
Archive context: Its reach of 432 mm sits toward the longer end. The seat angle of 77° sits toward the steeper end. The chainstay of 405 mm sits toward the shorter rear-center end.
Compared with 84 distinct road geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.L geometry
Archive context: The chainstay of 405 mm sits toward the shorter rear-center end. Its reach of 452 mm sits toward the longer end. The seat angle of 77° sits toward the steeper end.
Compared with 72 distinct road geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Giant Trinity Advanced SL Time Trial Frameset · Road · Published sizes: XS, S, M, L
Frame and fork
Inspect the frame and fork →Archived: Frame: Advanced SL-Grade Composite, 12x142mm thru-axle, disc · Fork: Advanced SL-Grade Composite, full-composite steerer, 12x100mm thru-axle, disc · Carbon Fiber
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
