2024 Giant Trance X SX

Original specifications: geometry for 4 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900002147
Model year
2024
Category
Mountain
Original MSRP
$3,300.00
Sizes
S, M, L, XL
Colors
Golden Haze
Geometry
4 manufacturer sizes
In this record
20 specifications · 6 archived images · original MSRP · geometry
Sponsored affiliate link
Original buildAluminum

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Golden Haze

Frameset

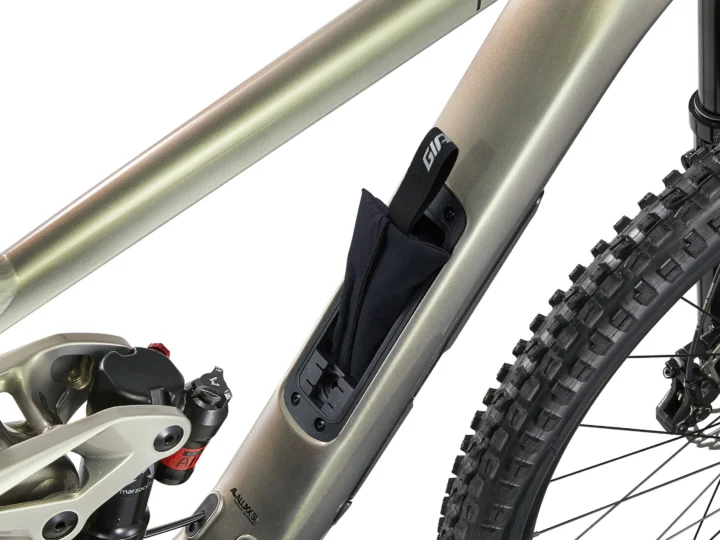

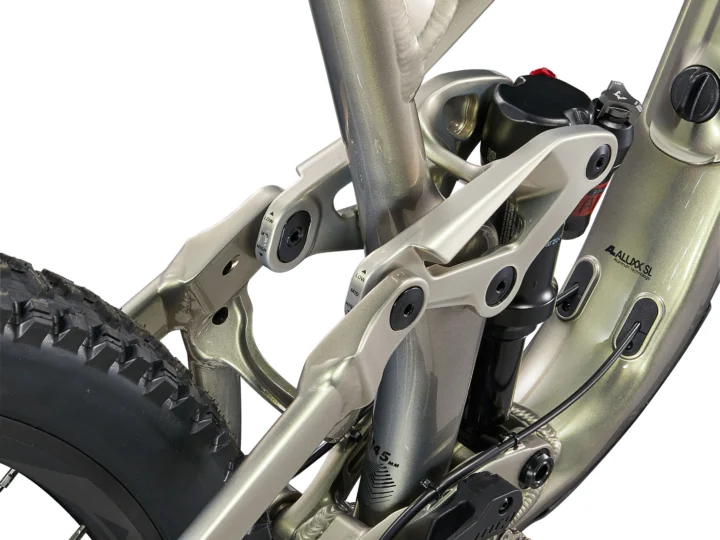

Frame ConstructionALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts
Frame MaterialAluminum
ForkFox 36 Float Rhythm, 160mm, GRIP damper, 15x110 Kabolt X, 44mm offset

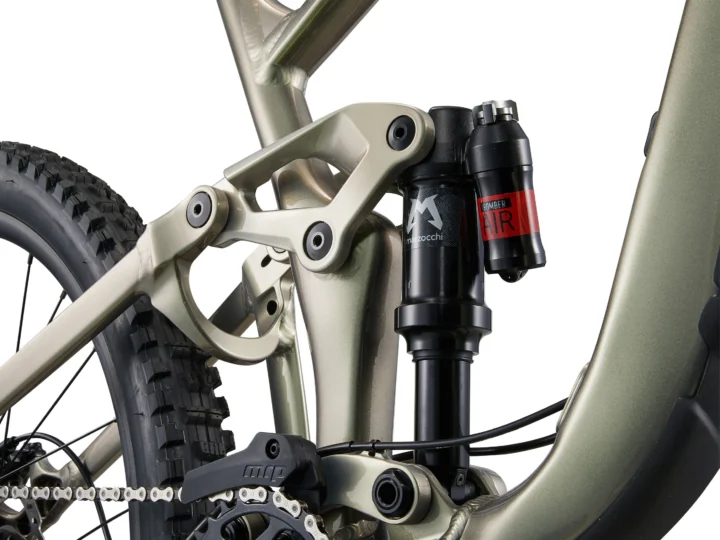

Rear ShockMarzocchi Bomber Air, two-position compression sweep, 185/55, custom tuned for Giant

Drivetrain

ShiftersShimano Deore, 1x12
Rear DerailleurShimano Deore, Shadow +
CranksetPraxis Cadet HD M24, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom BracketPraxis, press fit
CassetteShimano Deore M6100, 10x51
ChainKMC X-12

Brakes

BrakesShimano BR-MT420, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm

Cockpit & Contact Points

HandlebarGiant Contact TR35, alloy, 780x35mm, 20mm rise
StemGiant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
SaddleGiant Romero SL
SeatpostContact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm

Wheels & Tires

Hubs[F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body
RimsGiant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
SpokesSapim, 28, J-bend
Front TireMaxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR
Rear TireMaxxis Dissector 27.5x2.4 WT, 60 tpi, EXO TR, tubeless

Geometry

4 sizes · 16 measurements

Frame measurements by size.

All geometry measurements12 size / setup combinations · 16 measurements
MeasurementS · LowS · MidS · HighM · LowM · MidM · HighL · LowL · MidL · HighXL · LowXL · MidXL · High
Seat tube400 mm400 mm400 mm425 mm425 mm425 mm450 mm450 mm450 mm475 mm475 mm475 mm
Top tube574 mm573 mm572 mm605 mm604 mm603 mm627 mm626 mm626 mm660 mm659 mm658 mm
Head tube100 mm100 mm100 mm105 mm105 mm105 mm115 mm115 mm115 mm125 mm125 mm125 mm
Head-tube angle63.1°63.5°63.9°63.2°63.5°63.9°63.2°63.6°63.9°63.3°63.6°63.9°
Seat-tube angle75.5°75.9°76.3°75.6°75.9°76.3°75.6°76°76.3°75.7°76°76.3°
Chainstay / rear center440 mm439 mm438 mm440 mm439 mm438 mm440 mm439 mm438 mm440 mm439 mm438 mm
Wheelbase1194 mm1193 mm1193 mm1226 mm1225 mm1225 mm1250 mm1250 mm1249 mm1285 mm1284 mm1283 mm
Bottom-bracket drop30 mm25 mm21 mm31 mm26 mm21 mm30 mm26 mm21 mm31 mm26 mm21 mm
Reach413 mm417 mm421 mm443 mm447 mm451 mm463 mm467 mm471 mm494 mm497 mm501 mm
Stack626 mm623 mm621 mm631 mm628 mm625 mm640 mm638 mm635 mm650 mm647 mm644 mm
Standover height725 mm729 mm734 mm739 mm743 mm748 mm762 mm760 mm765 mm773 mm778 mm782 mm
Fork offset / rake44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm44 mm
Trail143.9 mm141.1 mm138.1 mm143.6 mm140.8 mm138 mm143.3 mm140.6 mm137.8 mm143 mm140.4 mm137.7 mm
Crank length165 mm165 mm165 mm170 mm170 mm170 mm170 mm170 mm170 mm170 mm170 mm170 mm
Stem length40 mm40 mm40 mm40 mm40 mm40 mm50 mm50 mm50 mm50 mm50 mm50 mm
Wheel size[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R[F] 29" [R

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes30T · 10–51T
Lowest0.59:1 Highest3.00:1 Total range510%
Estimated speed At 90 RPM Lowest gear4.4 mph Highest gear22.3 mph

Rear tire: 27.5×2.4.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Cassette · Original
Shimano Deore M6100

10x51

Retailer offers
Rear tire · Original
Maxxis Dissector 27.5x2.4 WT

60 tpi, EXO TR, tubeless

Retailer offers

Maxxis Minion DHR II Wide Trail Dual Compound/EXO/TR 27.5in Tire Tanwall/Dual Compound/EXO/TR, 27.5x2.4

Replacement option

Rear derailleur · Original
Shimano Deore

Shadow +

Retailer offers
More parts (5)Fewer parts
Chain · Original
KMC X-12
Front tire · Original
Maxxis Minion DHF

29x2.5 WT, 60 tpi, EXO, TR

Brake pads · Original
Shimano BR-MT420

hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm

Crankset · Original
Praxis Cadet HD M24, 30t, 55mm chainline
165 mm Frame sizes S
170 mm Frame sizes M / L / XL
Shifters · Original
Shimano Deore

1x12

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
[F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 27.5x2.4 WT, 60 tpi, EXO TR, tubeless
Rear tire
[F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 27.5x2.4 WT, 60 tpi, EXO TR, tubeless
Bottom bracket / shell
Praxis, press fit
Equipment inspection checks 14 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 14 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts · Fork: Fox 36 Float Rhythm, 160mm, GRIP damper, 15x110 Kabolt X, 44mm offset

Archived: Fork: Fox 36 Float Rhythm, 160mm, GRIP damper, 15x110 Kabolt X, 44mm offset · Rear shock: Marzocchi Bomber Air, two-position compression sweep, 185/55, custom tuned for Giant

Archived: Shifters: Shimano Deore, 1x12 · Rear derailleur: Shimano Deore, Shadow + · Crankset: Praxis Cadet HD M24, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm · Bottom bracket: Praxis, press fit · Cassette: Shimano Deore M6100, 10x51 · Chain: KMC X-12

Archived: Brakes: Shimano BR-MT420, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm

Archived: Rims: Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology · Hubs: [F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body · Front tire: [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 27.5x2.4 WT, 60 tpi, EXO TR, tubeless · Rear tire: [F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 27.5x2.4 WT, 60 tpi, EXO TR, tubeless

Controls and contact points

Archived: Handlebar: Giant Contact TR35, alloy, 780x35mm, 20mm rise · Stem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm · Seatpost: Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm · Saddle: Giant Romero SL
