Uses front tire 26×2.35; rear size isn’t listed.
Velopedia Bicycle Archive

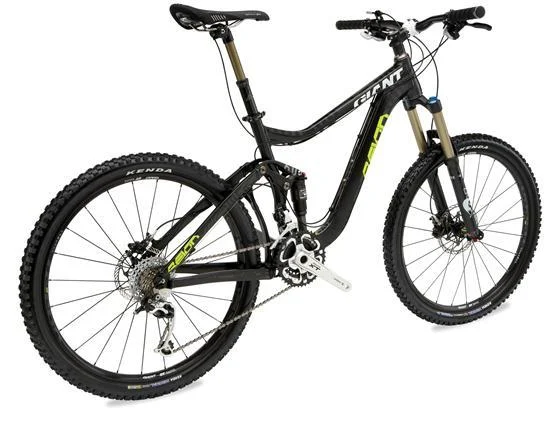

2011 Giant Reign 0
Original specifications: Shimano Deore XT · 10-speed rear derailleur · 26" wheels.
Planning to sell? Draft your listing
At a glance
Archive #22508- Model year
- 2011
- Category
- Mountain
- Original MSRP
- $4,750.00
- Sizes
- S, M, L, XL
- Colors
- Black/Neon Green
- In this record
- 26 specifications · 3 archived images · original MSRP
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2011 archived details
- Published colors
- Black/Neon Green
- Frame
- Alloy
- Original equipment
- Mountain Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildAlloy · Mountain Mix · 26" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Alloy |
| Fork | Fox 32 Talas FIT RL, 120-150mm travel |
| Fork Material | Single |
| Rear Shock | Fox Float RP23 Boostvalve, 6" Maestro |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Deore XT M770 Rapidfire |
| Front Derailleur | Shimano Deore XT M770, direct mount |
| Rear Derailleur | Shimano Deore XT Shadow |
| Crankset | Shimano Deore XT, 24/32/42 teeth |
| Bottom Bracket | Shimano Press Fit |
| Cassette | Shimano Deore XT |
| Rear Cogs | 10-speed, 11 - 36 teeth |
| Chain | Shimano HG74 |
| Pedals | Not included |
Brakes
| Brakes | Avid Elixir CR brakes, Avid Elixir CR levers |
|---|
Cockpit & Contact Points
| Handlebar | Giant Contact low-rise 31.8 |
|---|---|
| Handlebar Extensions | Not included |
| Stem | Giant Contact |
| Saddle | Fi'zi:k Gobi XM |
| Seatpost | Crank Brothers Joplin-4 Remote, 30.9mm diameter |
Wheels & Tires
| Hubs | DT Swiss Tricon |
|---|---|
| Rims | DT Swiss Tricon M1700 |
| Spokes | DT Swiss Tricon |
| Front Tire | 26 x 2.35" Kenda Nevegal |
| Wheel Size | 26" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
More parts (7)Fewer parts
24/32/42 teeth
direct mount
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.30.9mm diameter
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 26 x 2.35" Kenda Nevegal
- Drivetrain
- 10-speed
- Seatpost diameter
- 30.9 mm
- Bottom bracket / shell
- Shimano Press Fit
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Fox 32 Talas FIT RL, 120-150mm travel · Single
Suspension
Evaluate the suspension →Archived: Fork: Fox 32 Talas FIT RL, 120-150mm travel · Rear shock: Fox Float RP23 Boostvalve, 6" Maestro
Drivetrain
Check drivetrain wear →Archived: Group: Mountain Mix · Shifters: Shimano Deore XT M770 Rapidfire · Front derailleur: Shimano Deore XT M770, direct mount · Rear derailleur: Shimano Deore XT Shadow · Crankset: Shimano Deore XT, 24/32/42 teeth · Bottom bracket: Shimano Press Fit · Cassette: Shimano Deore XT · Rear cogs: 10-speed, 11 - 36 teeth · Chain: Shimano HG74
Brakes
Inspect the brakes →Archived: Brakes: Avid Elixir CR brakes, Avid Elixir CR levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 26" wheels · Rims: DT Swiss Tricon M1700 · Hubs: DT Swiss Tricon · Front tire: 26 x 2.35" Kenda Nevegal
Controls and contact points
Archived: Handlebar: Giant Contact low-rise 31.8 · Stem: Giant Contact · Seatpost: Crank Brothers Joplin-4 Remote, 30.9mm diameter · Saddle: Fi'zi:k Gobi XM · Pedals: Not included
