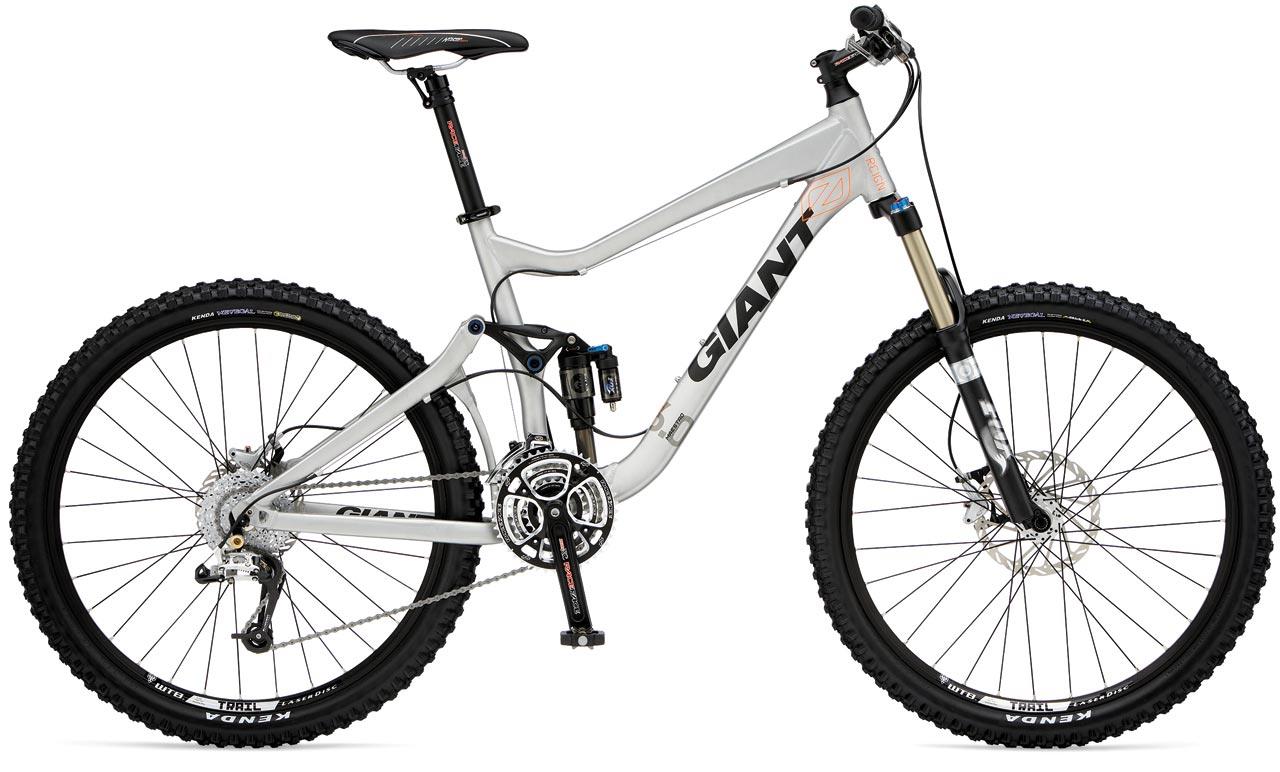

2009 Giant Reign 0
Mountain bike, front & rear suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $3,550.00
- Sizes
- Xsmall, small, medium, large, xlarge
- Colors
- Brushed Silver
- Archive ID
- 16922
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | ALUXX SL aluminum |
| Fork | Fox 32 Talas RL, 100 - 140mm adjustable travel |
| Fork Material | Single |
| Rear Shock | Fox DHX 4.0 Air, 6" travel |
Drivetrain
| Component Group | SRAM Mix |
|---|---|
| Shifters | SRAM X.9 Trigger |
| Front Derailleur | Shimano XT |
| Rear Derailleur | SRAM X.0 |
| Crankset | Race Face Deus XC, 22/32/44 teeth |
| Bottom Bracket | Race Face X-Type |
| Cassette | Shimano XT |
| Rear Cogs | 9-speed, 11 - 34 teeth |
| Chain | Shimano HG73 |
| Pedals | Crank Brothers Smarty |
Brakes
| Brakes | Avid Elixir R w/180mm rotor front/Avid Elixir R w/160mm rotor rear brakes, Avid Elixir R levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" |
|---|---|
| Handlebar | Race Face Deus XC riser |
| Handlebar Extensions | Not included |
| Stem | Race Face Deus XC 31.8 |
| Saddle | Fi'zi:k Nisene Sport |
| Seatpost | Race Face Deus XC, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Giant Tracker sealed disc w/15mm axle, Rear: WTB LaserDisc Lite |
|---|---|
| Rims | WTB LaserDisc Trail, 32-hole |
| Spokes | DT Swiss Competition stainless, 14/15ga. (2.0/1.8mm) butted |
| Front Tire | 26 x 2.35" Kenda Nevagal |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
