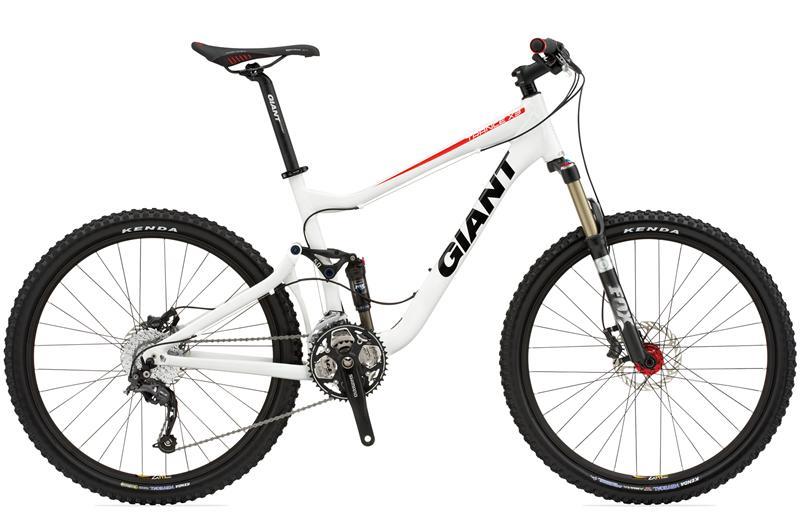

2010 Giant Trance X3

Original specifications: Shimano SLX · 9-speed rear derailleur · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #19384
Model year
2010
Category
Mountain
Original MSRP
$1,850.00
Sizes
XS, S, M, L, XL
Colors
White/Red
In this record
25 specifications · archived image · original MSRP
Model history 3 other years

Browse other years

Compare side by side

Identification clues

2010 archived details

Published colors
White/Red
Frame
ALUXX SL aluminum
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildALUXX SL aluminum · Mountain Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

XSSMLXL

Published colors

White/Red
View 5 archived size/color combinations
SizeColor
XSWhite/Red
SWhite/Red
MWhite/Red
LWhite/Red
XLWhite/Red

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame MaterialALUXX SL aluminum
ForkFox 32 F120 w/15QR Thru Axle, 120mm travel
Rear ShockFox Float R, 5" travel

Drivetrain

Component GroupMountain Mix
ShiftersShimano Deore
Front DerailleurShimano Deore, clamp-on
Rear DerailleurShimano SLX Shadow top normal
CranksetShimano Deore, 22/32/44 teeth
Bottom BracketShimano Deore external
CassetteSRAM PG-950
Rear Cogs9-speed, 11 - 34 teeth
ChainShimano HG-73
PedalsNot included

Brakes

BrakesAvid Juicy 3 Hydraulic w/185mm Rotor front/Avid Juicy 3 Hydraulic w/160mm Rotor rear brakes, Avid Juicy 3 levers

Cockpit & Contact Points

Headset1 1/8" integrated cartridge
HandlebarGiant Connect low-rise 31.8
Handlebar ExtensionsNot included
StemGiant Connect
SaddleFi'zi:k Gobi XM w/Mg rails
SeatpostGiant Connect 375mm, 30.9mm diameter

Wheels & Tires

HubsFront: Giant Tracker sealed disc w/15mm axle, Rear: Shimano Alivio
RimsMavic XM 117, 32-hole
SpokesStainless steel, 15ga front/14ga rear straight gauge
Front Tire26 x 2.10" Kenda Nevegal folding
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes44/32/22T · 11–34T · 9-speed
Lowest0.65:1 Highest4.00:1 Total range618%
Estimated speed At 90 RPM Lowest gear4.5 mph Highest gear28.1 mph

Uses front tire 26×2.1; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Seatpost · Original
Giant Connect 375mm

30.9mm diameter

Chain · Original
Shimano HG-73
Cassette · Original
SRAM PG-950
More parts (8)Fewer parts
Front tire · Original
26 x 2.10" Kenda Nevegal folding
Bottom bracket · Original
Shimano Deore external
Saddle · Original
Fi'zi:k Gobi XM w/Mg rails
Crankset · Original
Shimano Deore

22/32/44 teeth

Front derailleur · Original
Shimano Deore

clamp-on

Rear derailleur · Original
Shimano SLX Shadow top normal
Shifters · Original
Shimano Deore
Rims · Original
Mavic XM 117

32-hole

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.10" Kenda Nevegal folding
Drivetrain
9-speed
Seatpost diameter
30.9 mm
Bottom bracket / shell
Shimano Deore external
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: ALUXX SL aluminum · Fork: Fox 32 F120 w/15QR Thru Axle, 120mm travel

Archived: Fork: Fox 32 F120 w/15QR Thru Axle, 120mm travel · Rear shock: Fox Float R, 5" travel

Archived: Group: Mountain Mix · Shifters: Shimano Deore · Front derailleur: Shimano Deore, clamp-on · Rear derailleur: Shimano SLX Shadow top normal · Crankset: Shimano Deore, 22/32/44 teeth · Bottom bracket: Shimano Deore external · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 11 - 34 teeth · Chain: Shimano HG-73

Archived: Brakes: Avid Juicy 3 Hydraulic w/185mm Rotor front/Avid Juicy 3 Hydraulic w/160mm Rotor rear brakes, Avid Juicy 3 levers

Archived: Wheel size: 26" wheels · Rims: Mavic XM 117, 32-hole · Hubs: Front: Giant Tracker sealed disc w/15mm axle, Rear: Shimano Alivio · Front tire: 26 x 2.10" Kenda Nevegal folding

Controls and contact points

Archived: Headset: 1 1/8" integrated cartridge · Handlebar: Giant Connect low-rise 31.8 · Stem: Giant Connect · Seatpost: Giant Connect 375mm, 30.9mm diameter · Saddle: Fi'zi:k Gobi XM w/Mg rails · Pedals: Not included
