Velopedia Bicycle Archive

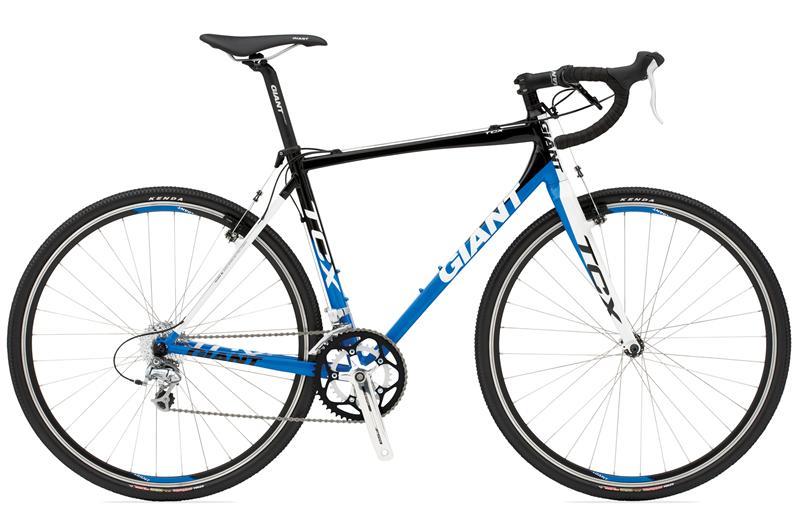

2010 Giant TCX 2
Cyclocross bicycle from the Velopedia specification archive.
- Original MSRP
- $900.00
- Sizes
- S, M, M/L, L, XL
- Colors
- White/Black/Team blue
- Archive ID
- 19442
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | ALUXX SL aluminum |
| Fork | Aluminum Cross |
| Rear Shock | N/A |
Drivetrain
| Shifters | Shimano Sora |
|---|---|
| Front Derailleur | Shimano Sora, clamp on |
| Rear Derailleur | Shimano Tiagra |
| Crankset | FSA Tempo Compact, 34/50 teeth |
| Bottom Bracket | FSA Cartridge |
| Cassette | SRAM PC-950 |
| Rear Cogs | 9-speed, 11 - 26 teeth |
| Chain | Shimano HG-73 |
| Pedals | Not included |
Brakes
| Brakes | Tektro CR-720 Cross canti brakes, Shimano Sora levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8"- 1 1/4" Tapered Threadless |
|---|---|
| Handlebar | Giant Connect 31.8 |
| Handlebar Extensions | Not included |
| Stem | Giant Connect |
| Saddle | Giant Performance Road |
| Seatpost | Giant Connect, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Formula Cartridge Bearing, Rear: Shimano R2200 |
|---|---|
| Rims | Giant CR41, 32-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Front Tire | 700 x 35c Kenda Small Block Eight folding 120TPI |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
