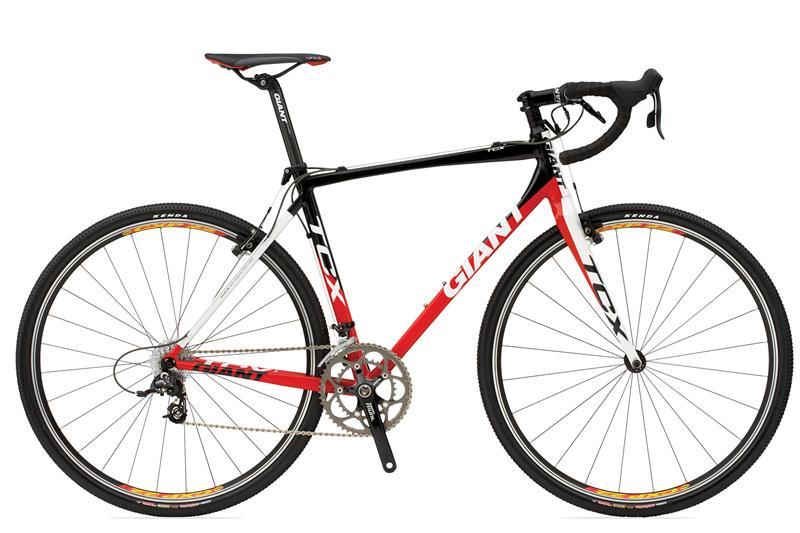

2010 Giant TCX 1
Original specifications: SRAM Rival · 10-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #19441- Model year
- 2010
- Category
- Gravel & Cyclocross
- Original MSRP
- $1,550.00
- Sizes
- S, M, M/L, L, XL
- Colors
- White/Black/Red
- In this record
- 26 specifications · archived image · original MSRP
Model history 5 other years
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- White/Black/Red
- Frame
- ALUXX SL aluminum
- Original equipment
- SRAM Rival Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildALUXX SL aluminum · SRAM Rival Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | ALUXX SL aluminum |
| Fork | Giant Advanced composite |
| Fork Material | Carbon fiber/aluminum steerer |
Drivetrain
| Component Group | SRAM Rival Mix |
|---|---|
| Shifters | SRAM Rival |
| Front Derailleur | SRAM Rival, clamp on |
| Rear Derailleur | SRAM Rival |
| Crankset | SRAM Rival, 34/48 teeth |
| Bottom Bracket | SRAM GXP, external |
| Cassette | SRAM OG-1070 |
| Rear Cogs | 10-speed, 12 - 26 teeth |
| Chain | SRAM 1050 |
| Pedals | Not included |
Brakes
| Brakes | Avid Shorty 6 brakes, SRAM Rival levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8"- 1 1/4" Tapered Threadless |
|---|---|
| Handlebar | Giant Connect SL 31.8 |
| Handlebar Extensions | Not included |
| Stem | Giant Connect SL |
| Saddle | Selle Italia Setta M |
| Seatpost | Giant Connect SL Composite, 30.9mm diameter |
Wheels & Tires
| Hubs | Formula sealed |
|---|---|
| Rims | Mavic CXP 22, 24-hole/28-hole |
| Spokes | Sapim Race stainless steel, 14/15ga. (2.0/1.8mm) butted |
| Front Tire | 700 x 35c Kenda Small Block Eight folding 120TPI |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
30.9mm diameter
external
More parts (5)Fewer parts
34/48 teeth
clamp on
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 35c Kenda Small Block Eight folding 120TPI
- Drivetrain
- 10-speed
- Seatpost diameter
- 30.9 mm
- Bottom bracket / shell
- SRAM GXP, external
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Giant Advanced composite · Carbon fiber/aluminum steerer
Drivetrain
Check drivetrain wear →Archived: Group: SRAM Rival Mix · Shifters: SRAM Rival · Front derailleur: SRAM Rival, clamp on · Rear derailleur: SRAM Rival · Crankset: SRAM Rival, 34/48 teeth · Bottom bracket: SRAM GXP, external · Cassette: SRAM OG-1070 · Rear cogs: 10-speed, 12 - 26 teeth · Chain: SRAM 1050
Brakes
Inspect the brakes →Archived: Brakes: Avid Shorty 6 brakes, SRAM Rival levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Mavic CXP 22, 24-hole/28-hole · Hubs: Formula sealed · Front tire: 700 x 35c Kenda Small Block Eight folding 120TPI
Controls and contact points
Archived: Headset: 1 1/8"- 1 1/4" Tapered Threadless · Handlebar: Giant Connect SL 31.8 · Stem: Giant Connect SL · Seatpost: Giant Connect SL Composite, 30.9mm diameter · Saddle: Selle Italia Setta M · Pedals: Not included
