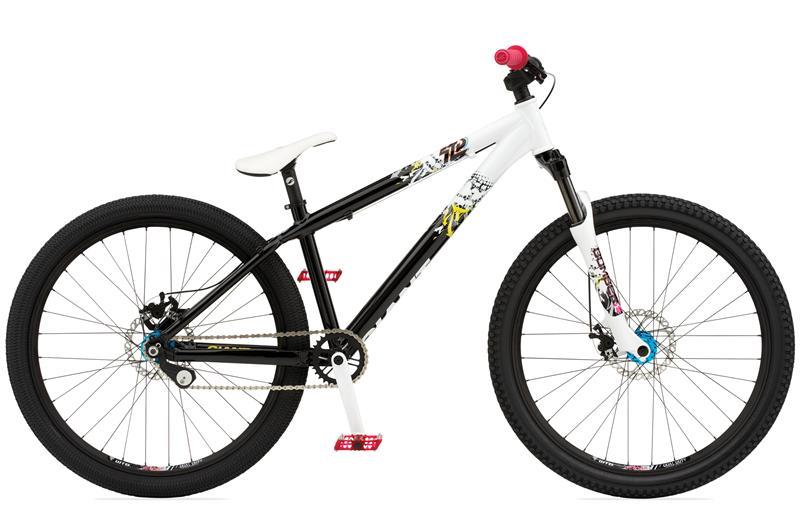

2010 Giant STP SS
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $850.00
- Sizes
- Regular, Large
- Colors
- White/Black
- Archive ID
- 19536
Frameset
| Frame Material | ALUXX SL aluminum |
|---|---|
| Fork | Marzocchi DJ 3, 100mm travel |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | STP Chain Tension Device |
| Crankset | Giant Cromo, 30 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | Freewheel |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC Z510HX |
| Pedals | Giant Nylon BMX |
Brakes
| Brakes | Hayes MX4 w/160mm rotor front/Hayes HMX-4 w/160mm rotor rear brakes, Tektro alloy levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated cartridge |
|---|---|
| Handlebar | Giant Connect riser 31.8 |
| Handlebar Extensions | Not included |
| Stem | Giant FR 31.8 |
| Saddle | Giant Pivotal |
| Seatpost | Giant Pivotal, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Giant Tracker w/20mm axle, Rear: Formula |
|---|---|
| Rims | WTB Dual Duty FR, 32-hole |
| Spokes | Stainless steel |
| Front Tire | 26 x 2.30" Kenda Kiniption |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
