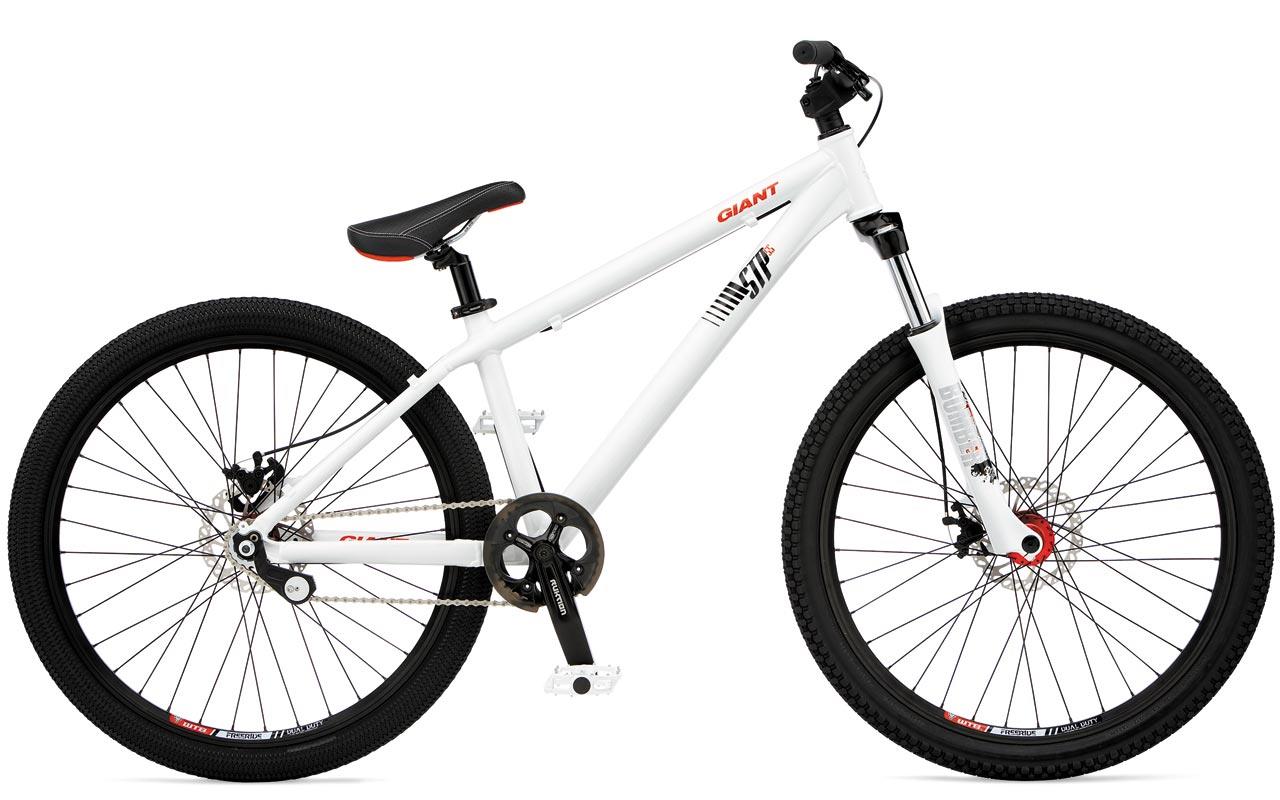

2009 Giant STP SS
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $920.00
- Sizes
- Regular, large
- Colors
- White
- Archive ID
- 16917
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | ALUXX SL aluminum |
| Fork | Marzocchi DJ3, 100mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | SRAM Mix |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | Truvativ Ruktion 1.0, 36 teeth |
| Bottom Bracket | TruVativ Howitzer |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC Z72 |
| Pedals | Alloy Platform |
Brakes
| Brakes | Hayes MX-4 brakes, Tektro alloy levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" |
|---|---|
| Handlebar | Alloy |
| Handlebar Extensions | Not included |
| Stem | Giant FR 31.8 |
| Saddle | Giant Dirt Jump |
| Seatpost | Giant FR alloy, 30.9mm diameter |
Wheels & Tires
| Hubs | Front: Formula disc 20mm, Rear: Formula disc |
|---|---|
| Rims | WTB Dual Duty FR |
| Spokes | Stainless |
| Front Tire | Front: 26 x 2.30" Kenda K-Rad, Rear: 26 x 2.30" Kenda Kiniption |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
