Lowest1.56:1
Highest4.82:1
Total range309%
Velopedia Bicycle Archive
At a glance
Archive #8177015- Model year
- 2013
- Category
- Road
- Sizes
- 49cm, 52cm, 54cm, 56cm, 58cm, 61cm
- Colors
- White/Blue
- In this record

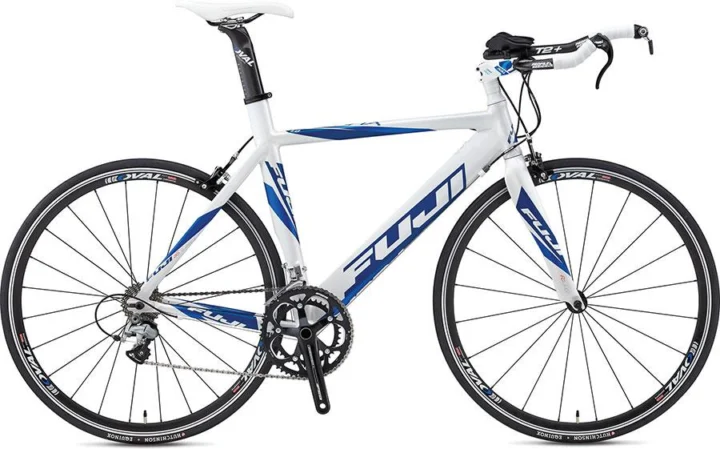

- 18 specifications · archived image
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2013 archived details
- Published colors
- White/Blue
- Frame
- A6-SL Aluminum
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildA6-SL Aluminum
Frameset
| Frame Material | A6-SL Aluminum |
|---|---|
| Fork | FC-440 Carbon |
Drivetrain
| Shifters | Shimano Dura-Ace |
|---|---|
| Front Derailleur | Shimano 105 |
| Rear Derailleur | Shimano Ultegra |
| Crankset | FSA Gossamer 53/39t |
| Bottom Bracket | FSA MegaExo |
| Cassette | Shimano 105 11-25 10 speed |
| Rear Cogs | 2x10 Speeds |
| Chain | KMC X10 |
Brakes
| Brakes | Oval 500 |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Campy style |
|---|---|
| Handlebar | Profile T2 |
| Stem | Oval 700 |
| Saddle | Selle Italia T1 |
| Seatpost | Oval Aero Carbon |
Wheels & Tires
| Rims | Oval 330 |
|---|---|
| Front Tire | Hutchinson Equinox ll 700x23 |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Hutchinson Equinox ll 700x23
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Hutchinson Equinox ll on eBaySponsored links
Shimano 105 11-25 10 speed
More parts (6)Fewer parts
FSA MegaExo
Selle Italia T1
FSA Gossamer 53/39t
Shimano 105
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano Ultegra
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano Dura-Ace
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Hutchinson Equinox ll 700x23
- Drivetrain
- 10-speed
- Bottom bracket / shell
- FSA MegaExo
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: A6-SL Aluminum · Fork: FC-440 Carbon
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Dura-Ace · Front derailleur: Shimano 105 · Rear derailleur: Shimano Ultegra · Crankset: FSA Gossamer 53/39t · Bottom bracket: FSA MegaExo · Cassette: Shimano 105 11-25 10 speed · Rear cogs: 2x10 Speeds · Chain: KMC X10
Brakes
Inspect the brakes →Archived: Brakes: Oval 500
Wheels and tires
Check wheels and tires →Archived: Rims: Oval 330 · Front tire: Hutchinson Equinox ll 700x23
Controls and contact points
Archived: Headset: 1 1/8" Campy style · Handlebar: Profile T2 · Stem: Oval 700 · Seatpost: Oval Aero Carbon · Saddle: Selle Italia T1
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
