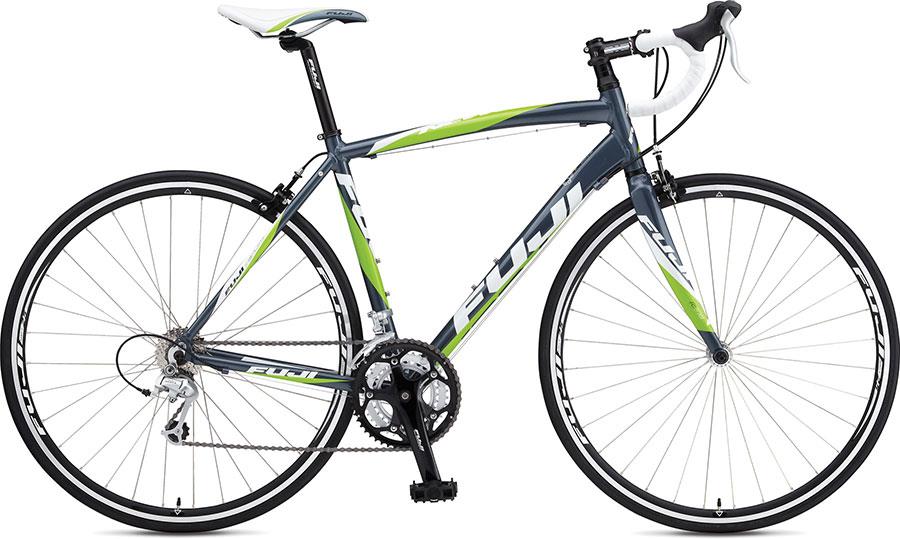

2012 Fuji Newest 3.0

Original specifications.

Share owner experience

At a glance

Archive #2024969

Model year: 2012
Category: Road
Sizes: 42cm, 46cm, 50cm, 54cm, 58cm
Colors: Sage/Green
In this record: 17 specifications · archived image

Model history 3 other years

Browse other years

Compare side by side

Identification clues

2012 archived details

Published colors: Sage/Green
Frame: A1-SL alloy

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildA1-SL alloy

Manufacturer catalog

Published sizes and colors

5 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

42cm46cm50cm54cm58cm

Published colors

Sage/Green

Frameset

Frame Material	A1-SL alloy
Fork	FC-770 carbon

Drivetrain

Shifters	Shimano 2303 8spd
Front Derailleur	Shimano 2303
Rear Derailleur	Shimano Sora
Crankset	Fuji forged 30/39/50t
Bottom Bracket	sealed cartridge
Cassette	Shimano HG50 8spd 12-25t
Chain	KMC Z72

Brakes

Brakes	Fuji dual pivot

Cockpit & Contact Points

Headset	1 1/8" threadless
Handlebar	Fuji CGC alloy
Stem	Fuji CGC alloy
Saddle	Fuji Road Sport
Seatpost	Fuji CGC Alloy

Wheels & Tires

Rims	Fuji Alloy
Front Tire	Kenda K-152 700 X 25c

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes50/39/30T · 12–25T · 8-speed

Lowest1.20:1 Highest4.17:1 Total range347%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
