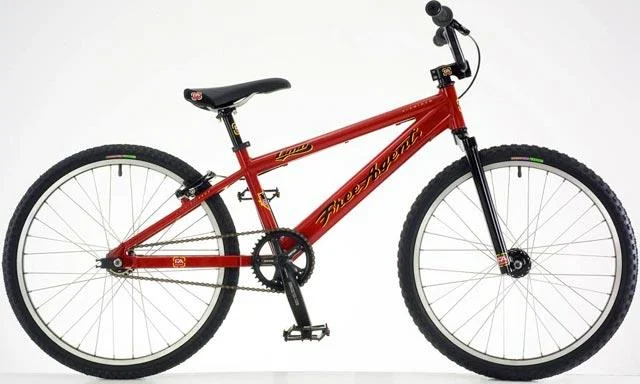

2005 Free Agent Limo 24"

Original specifications: 24" wheels.

Share owner experience

At a glance

Archive #10105

Model year: 2005
Category: BMX
Original MSRP: $599.00
Colors: Gloss White
In this record: 23 specifications · archived image · original MSRP

Model history 1 other year

Browse other years

Compare side by side

Identification clues

2005 archived details

Published colors: Gloss White
Frame: 7005 aluminum
Original equipment: N/A

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build7005 aluminum · 24" wheels

Manufacturer catalog

Published sizes and colors

1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published colors

Gloss White

Frameset

Frame Construction	TIG-welded
Frame Material	7005 aluminum
Fork	Free Agent
Fork Material	Chromoly, unicrown crown

Drivetrain

Crankset	TruVativ Racing XR, 39 teeth
Bottom Bracket	TruVativ GIGA pipe
Rear Cogs	1-speed, 18 teeth
Chain	KMC Z30, 1/2 x 1/8"
Pedals	Free Agent aluminum platform

Brakes

Brakes	Textro BX24 rear brakes, Free Agent aluminum rear levers

Cockpit & Contact Points

Headset	1 1/8" threadless Tioga aluminum
Handlebar	Chromoly
Handlebar Extensions	Not included
Stem	Free Agent forged
Saddle	Free Agent Kevlar
Seatpost	Aluminum micro-adjust, 26.8mm diameter

Wheels & Tires

Hubs	Aluminum, flip-flop
Rims	Sun Rims Rhyno Lite, 32-hole
Spokes	Stainless steel, 15ga. (1.8mm) straight gauge
Spoke Nipples	Brass nipples
Front Tire	24 x 2.125" Kenda
Rear Tire	24 x 1.75" Kenda
Wheel Size	24" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

Published build39T · 18T · 1-speed

Ratio2.17:1

Estimated speed At 90 RPM Gear13.6 mph

Rear tire: 24×1.75.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Chain · Original

KMC Z30

1/2 x 1/8"

Search Amazon Search eBay

Seatpost · Original

Aluminum micro-adjust

26.8mm diameter

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: Front: 24 x 2.125" Kenda, Rear: 24 x 1.75" Kenda
Drivetrain: 1-speed
Seatpost diameter: 26.8 mm
Bottom bracket / shell: TruVativ GIGA pipe

Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.

This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.

Display name Required Email address Required · private Ownership Required When or how long you owned it Required Frame size Required Primary type of riding Required Rider height Optional

Overall owner experience Required · at least 120 characters0 of 120 minimum characters Would you own one again? Optional

Add fit, maintenance and buyer detailsOptional · five additional fields

Fit and sizing observations Optional Long-term strengths Optional Problems or recurring maintenance Optional Parts replaced or upgraded Optional What a used buyer should inspect Optional

Your contribution goes directly to Velopedia’s private review queue. We’ll email an optional confirmation link plus a private edit and withdrawal link, but you do not need to confirm your email before an administrator can review or approve the submission.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

No recent price sample is available for this bike. Check eBay for matching listings.

Find this bike on eBay

Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.

Search 2005 model Search all years

Campaign

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.

2005 Free Agent Limo 24"
