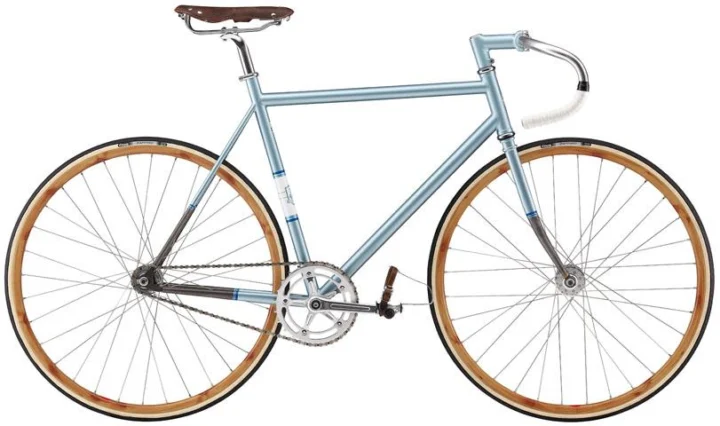

2011 Felt TK4130

Original specifications: Track Mix drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #23082
Model year
2011
Category
Track
Original MSRP
$799.00
Sizes
51, 54, 56, 58, 61cm
Colors
Pale blue, Raw Steel
In this record
24 specifications · archived image · original MSRP
Model history 1 other year

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
Pale blue, Raw Steel
Frame
4130 butted chromoly
Original equipment
Track Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Campaign
Original build4130 butted chromoly · Track Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

10 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

5154565861cm

Published colors

Pale BlueRaw Steel
View 10 archived size/color combinations
SizeColor
51Pale Blue
54Pale Blue
56Pale Blue
58Pale Blue
61cmPale Blue
51Raw Steel
54Raw Steel
56Raw Steel
58Raw Steel
61cmRaw Steel

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame Material4130 butted chromoly
ForkFelt Track Specific Lugged Cr-Mo
Fork MaterialCrMo

Drivetrain

Component GroupTrack Mix
CranksetFelt Track Cold Forged ALU, 24t teeth
Bottom BracketSquare Taper
BB Shell Width68mm
CassetteTrack Cog
Rear Cogs1-speed, 15 teeth
ChainKMC Z510HX, 1/2 X 1/8"
PedalsFelt Track Forged Aluminum

Cockpit & Contact Points

Headset1 1/8" FSA
Handlebar6061 AL
Handlebar ExtensionsNot included
Stem6061 Aluminum
SaddleFelt Leather Classic Road
Seatpost6061 Aluminum

Wheels & Tires

HubsFront: Felt TkR, Rear: Felt TkR Fixed
RimsFelt TkR, 32-hole
SpokesDT Champion stainless, 15ga. (1.8mm)
Spoke NipplesBrass
Front Tire700 x 25c Vittoria Zaffiro Pro
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes24T · 15T · 1-speed
Ratio1.60:1
Estimated speed At 90 RPM Gear11.3 mph

Uses front tire 700C×25; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Front tire · Original
700 x 25c Vittoria Zaffiro Pro
Retailer offers

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 25c Vittoria Zaffiro Pro
Drivetrain
1-speed
Bottom bracket / shell
Square Taper · 68mm
Equipment inspection checks 9 checks based on 4 archived component groups Open equipment checksClose equipment checks
0 of 9 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: Felt Track Specific Lugged Cr-Mo · CrMo

Archived: Group: Track Mix · Crankset: Felt Track Cold Forged ALU, 24t teeth · Bottom bracket: Square Taper · Cassette: Track Cog · Rear cogs: 1-speed, 15 teeth · Chain: KMC Z510HX, 1/2 x 1/8"

Archived: Wheel size: 700c wheels · Rims: Felt TkR, 32-hole · Hubs: Front: Felt TkR, Rear: Felt TkR Fixed · Front tire: 700 x 25c Vittoria Zaffiro Pro

Controls and contact points

Archived: Headset: 1 1/8" FSA · Handlebar: 6061 AL · Stem: 6061 Aluminum · Seatpost: 6061 Aluminum · Saddle: Felt Leather Classic Road · Pedals: Felt Track Forged Aluminum
