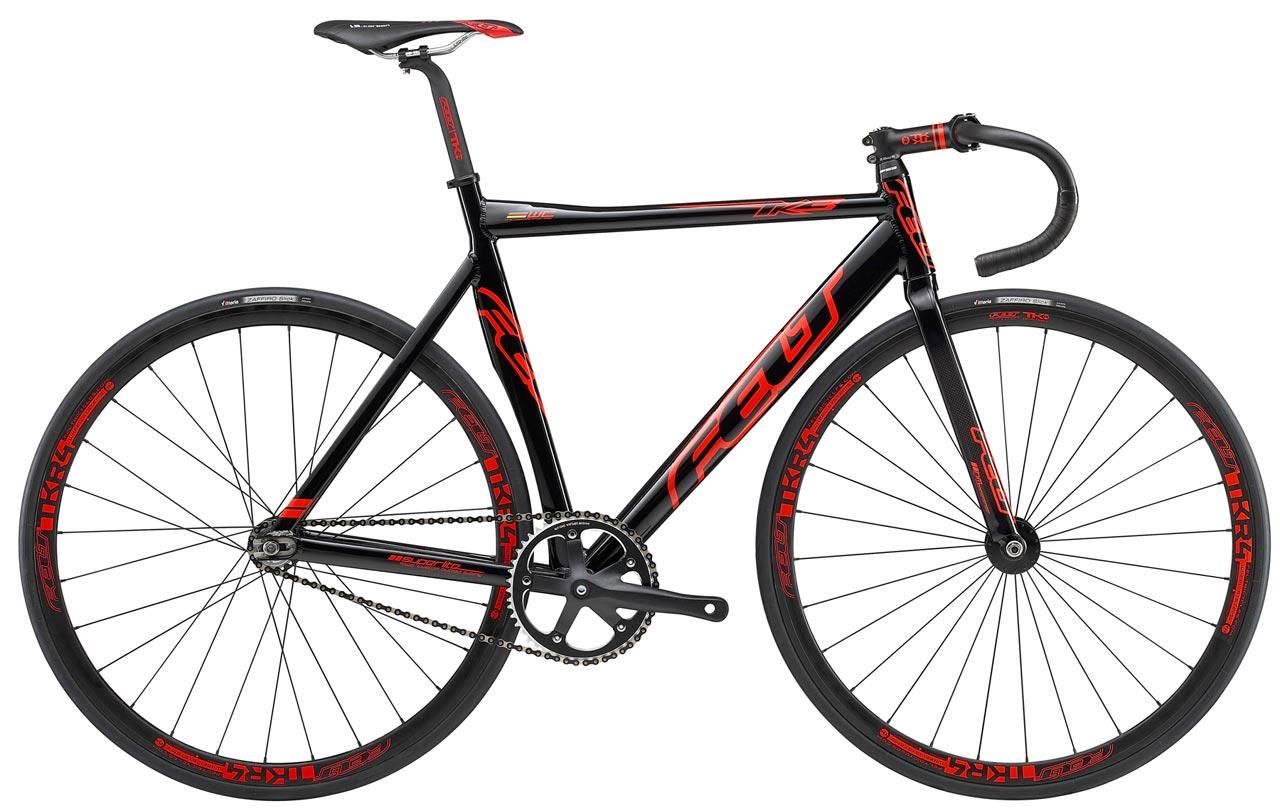

2010 Felt TK3

Original specifications: Track Mix drivetrain · 700c wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #20794
Model year
2010
Category
Track
Original MSRP
$849.00
Sizes
52cm, 54cm, 56cm, 58cm, 60cm
Colors
Gloss Black/Red
In this record
22 specifications · archived image · original MSRP
Model history 5 other years

Browse other years

Compare side by side

Identification clues

2010 archived details

Published colors
Gloss Black/Red
Frame
FELT Track Specific Custom Butted 7005 AL
Original equipment
Track Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original buildFELT Track Specific Custom Butted 7005 AL · Track Mix · 700c wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

52cm54cm56cm58cm60cm

Published colors

Gloss Black/Red
View 5 archived size/color combinations
SizeColor
52cmGloss Black/Red
54cmGloss Black/Red
56cmGloss Black/Red
58cmGloss Black/Red
60cmGloss Black/Red

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionTIG-welded
Frame MaterialFELT Track Specific Custom Butted 7005 AL
ForkFELT Track Specific
Fork MaterialCarbon fiber/aluminum steerer

Drivetrain

Component GroupTrack Mix
CranksetFelt Track Cold Forged ALU, 48 teeth
Bottom BracketFSA square taper
BB Shell Width68mm
CassetteFixed cog
Rear Cogs1-speed, 15 teeth
ChainKMC Z610HX, 1/2 X 3/32"

Cockpit & Contact Points

Headset1 1/8" integrated FSA
HandlebarFelt TkR ALU Track drop
Handlebar ExtensionsNot included
StemFELT 1.2 6061 Aluminum 3D Forged
SaddleFELT 1.3 Road w/ hollow Cr-Mo rails
SeatpostFelt TkR 6061 ALU, 27.2mm diameter

Wheels & Tires

HubsFront: Felt TkR-4 hi-flange, Rear: Felt TkR-4 fixed/fixed
RimsFelt TkR-4 30mm Deep ALU, 28-hole
SpokesStainless, 14ga. (2.0mm)
Front Tire700 x 23c Vittoria Zaffiro Slick
Wheel Size700c wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes48T · 15T · 1-speed
Ratio3.20:1
Estimated speed At 90 RPM Gear22.5 mph

Uses front tire 700C×23; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Front tire · Original
700 x 23c Vittoria Zaffiro Slick

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
700 x 23c Vittoria Zaffiro Slick
Drivetrain
1-speed
Seatpost diameter
27.2 mm
Bottom bracket / shell
FSA square taper · 68mm
Equipment inspection checks 9 checks based on 4 archived component groups Open equipment checksClose equipment checks
0 of 9 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: TIG-welded · Fork: FELT Track Specific · Carbon fiber/aluminum steerer

Archived: Group: Track Mix · Crankset: Felt Track Cold Forged ALU, 48 teeth · Bottom bracket: FSA square taper · Cassette: Fixed cog · Rear cogs: 1-speed, 15 teeth · Chain: KMC Z610HX, 1/2 x 3/32"

Archived: Wheel size: 700c wheels · Rims: Felt TkR-4 30mm Deep ALU, 28-hole · Hubs: Front: Felt TkR-4 hi-flange, Rear: Felt TkR-4 fixed/fixed · Front tire: 700 x 23c Vittoria Zaffiro Slick

Controls and contact points

Archived: Headset: 1 1/8" integrated FSA · Handlebar: Felt TkR ALU Track drop · Stem: FELT 1.2 6061 Aluminum 3D Forged · Seatpost: Felt TkR 6061 ALU, 27.2mm diameter · Saddle: FELT 1.3 Road w/ hollow Cr-Mo rails
