Velopedia Bicycle Archive

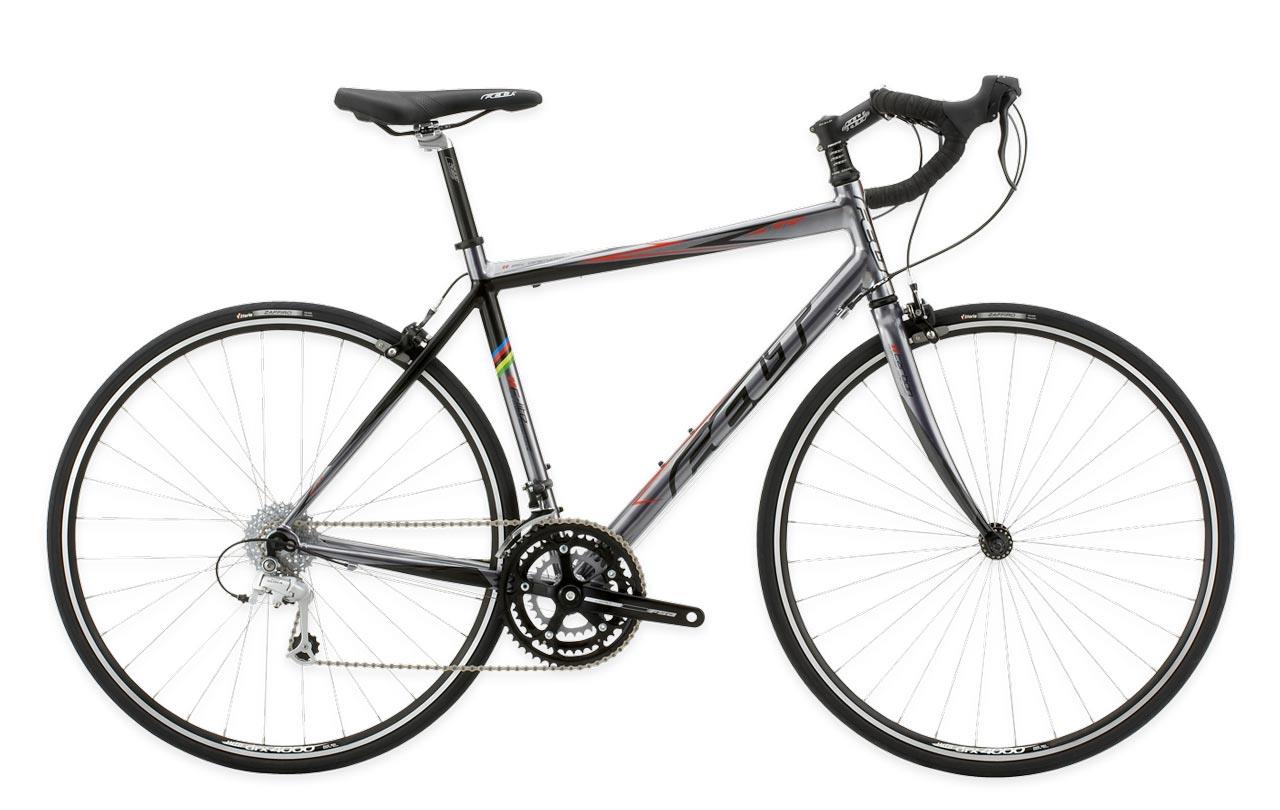

2009 Felt Z100
Road race & triathlon bicycle from the Velopedia specification archive.
- Original MSRP
- $799.00
- Sizes
- 51cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Orange, Smokey Nickel
- Weight
- 21.82
- Archive ID
- 18491
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | FELT Custom Butted 7005 Aluminum |
| Fork | Carbon Design |
| Fork Material | Carbon fiber/chromoly steerer, aero crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano 2200 |
|---|---|
| Shifters | Shimano 2200 STI |
| Front Derailleur | Shimano 2200 |
| Rear Derailleur | Shimano Sora |
| Crankset | FSA Vero Triple, 30/42/52 teeth |
| Bottom Bracket | FSA square taper, 116mm spindle |
| BB Shell Width | 68mm |
| Cassette | Sunrace M50 |
| Rear Cogs | 8-speed, 12 - 28 teeth |
| Chain | KMC Z8 |
| Pedals | Superlight road platform |
Brakes
| Brakes | Dual pivot brakes, Shimano 2200 STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Threadless |
|---|---|
| Handlebar | FELT 2.3 6061 ALU, ergo bend |
| Handlebar Extensions | Not included |
| Stem | FELT 2.1 Adjustable 6061 3D Forged |
| Saddle | FELT 2.4 Anatomic Road Saddle |
| Seatpost | FELT 1.3 Carbon, 27.2mm diameter |
Wheels & Tires
| Hubs | Felt aluminum sealed |
|---|---|
| Rims | Aero aluminum, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 700 x 25c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
