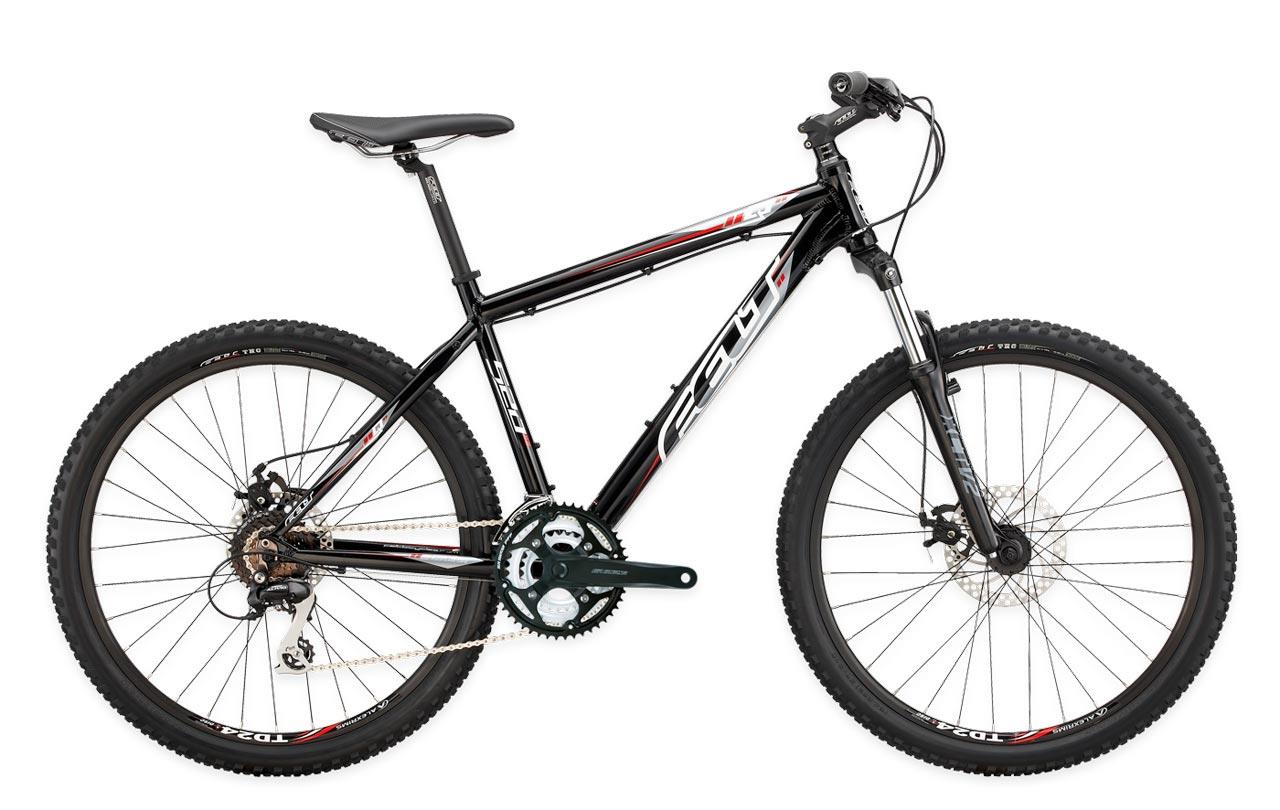

2009 Felt Q520
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $559.00
- Sizes
- 13.5", 15.5", 17.5", 19.5", 21.5"
- Colors
- Pitch Black
- Weight
- 31
- Archive ID
- 18542
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061 Butted Aluminum |
| Fork | SR Suntour XCT-V2 |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano EF-50 EZ Fire Integrated |
| Front Derailleur | Shimano M-310 Altus |
| Rear Derailleur | Shimano Alivio |
| Crankset | Shimano FC-M311-L, 24/34/42 teeth |
| Bottom Bracket | TH Cartridge |
| Cassette | SRAM PG-850 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z7 |
| Pedals | MTB steel cage/PP body |
Brakes
| Brakes | Tektro IO Mechanical w/180mm rotor front/Tektro IO Mechanical w/160mm rotor rear brakes, Shimano EF-50 EZ Fire Integrated levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Semi integrated |
|---|---|
| Handlebar | Riser |
| Handlebar Extensions | Not included |
| Stem | Felt melt forged 1 pc. |
| Saddle | Felt RXC Comfort |
| Seatpost | FELT Alloy Micro Adjust, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: aluminum disc, Rear: Shimano M475 disc |
|---|---|
| Rims | Alex TD-24, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Spoke Nipples | Brass |
| Front Tire | 26 x 2.10" Felt THC XC |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
