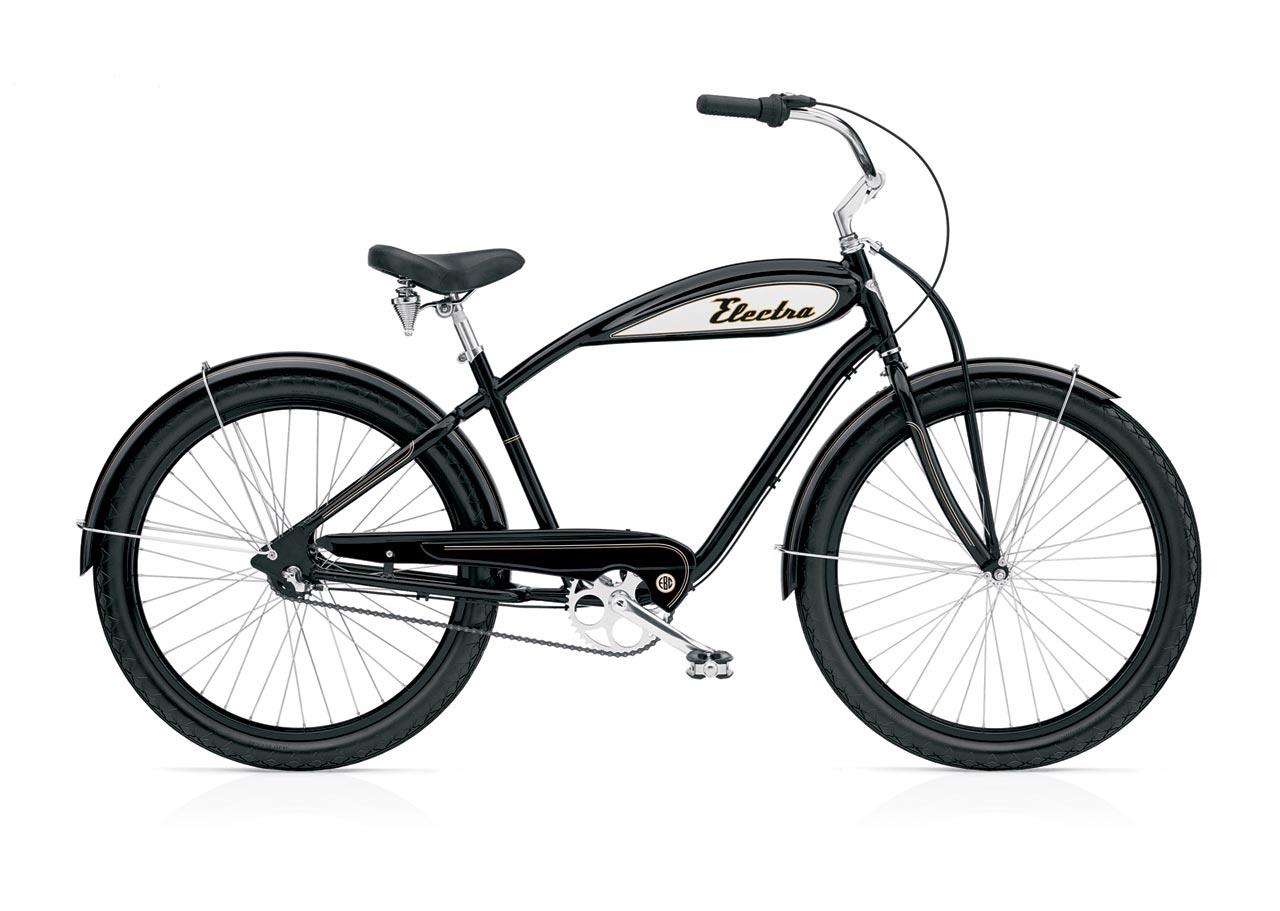

2009 Electra Vince 3i

Original specifications: Cruiser Mix drivetrain · 26" wheels.

Share owner experience

At a glance

Archive #18701

Model year: 2009
Category: Cruiser
Sizes: One size fits all
Colors: Black
In this record: 20 specifications · archived image

Original build6061 aluminum w/hydroformed TT · Cruiser Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

1 item record

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

one size fits all

Published colors

Black

View 1 archived size/color combination

Size	Color
one size fits all	Black

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	TIG-welded
Frame Material	6061 aluminum w/hydroformed TT
Fork Material	Steel, unicrown crown

Drivetrain

Component Group	Cruiser Mix
Shifters	Shimano Revo twist
Crankset	Alloy
Bottom Bracket	Sealed cartridge
Cassette	Shimano
Rear Cogs	3-speed internal

Brakes

Brakes	Shimano coaster brake rear

Cockpit & Contact Points

Headset	1" Threaded
Handlebar Extensions	Not included
Stem	Alloy
Saddle	Cruiser
Seatpost	Alloy Pillar

Wheels & Tires

Hubs	Front: Alloy, Rear: Shimano Nexus 3 speed Internal Gear with Coaster Brake
Rims	Alloy
Spokes	Stainless
Front Tire	26 x 2.35" Electra Vintage Diamond
Wheel Size	26" wheels

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

26 x 2.35" Electra Vintage Diamond Replacement search: 26x2.35 bicycle tire Before ordering: Check rim type and tire clearance.

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 26 x 2.35" Electra Vintage Diamond
Drivetrain: 3-speed
Bottom bracket / shell: Sealed cartridge

Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: · Steel, unicrown crown

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Drivetrain

Check drivetrain wear →

Archived: Group: Cruiser Mix · Shifters: Shimano Revo twist · Crankset: Alloy · Bottom bracket: Sealed cartridge · Cassette: Shimano · Rear cogs: 3-speed internal

Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Shimano coaster brake rear

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 26" wheels · Rims: Alloy · Hubs: Front: Alloy, Rear: Shimano Nexus 3 speed Internal Gear with Coaster Brake · Front tire: 26 x 2.35" Electra Vintage Diamond

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Controls and contact points

Archived: Headset: 1" Threaded · Stem: Alloy · Seatpost: Alloy Pillar · Saddle: Cruiser

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
