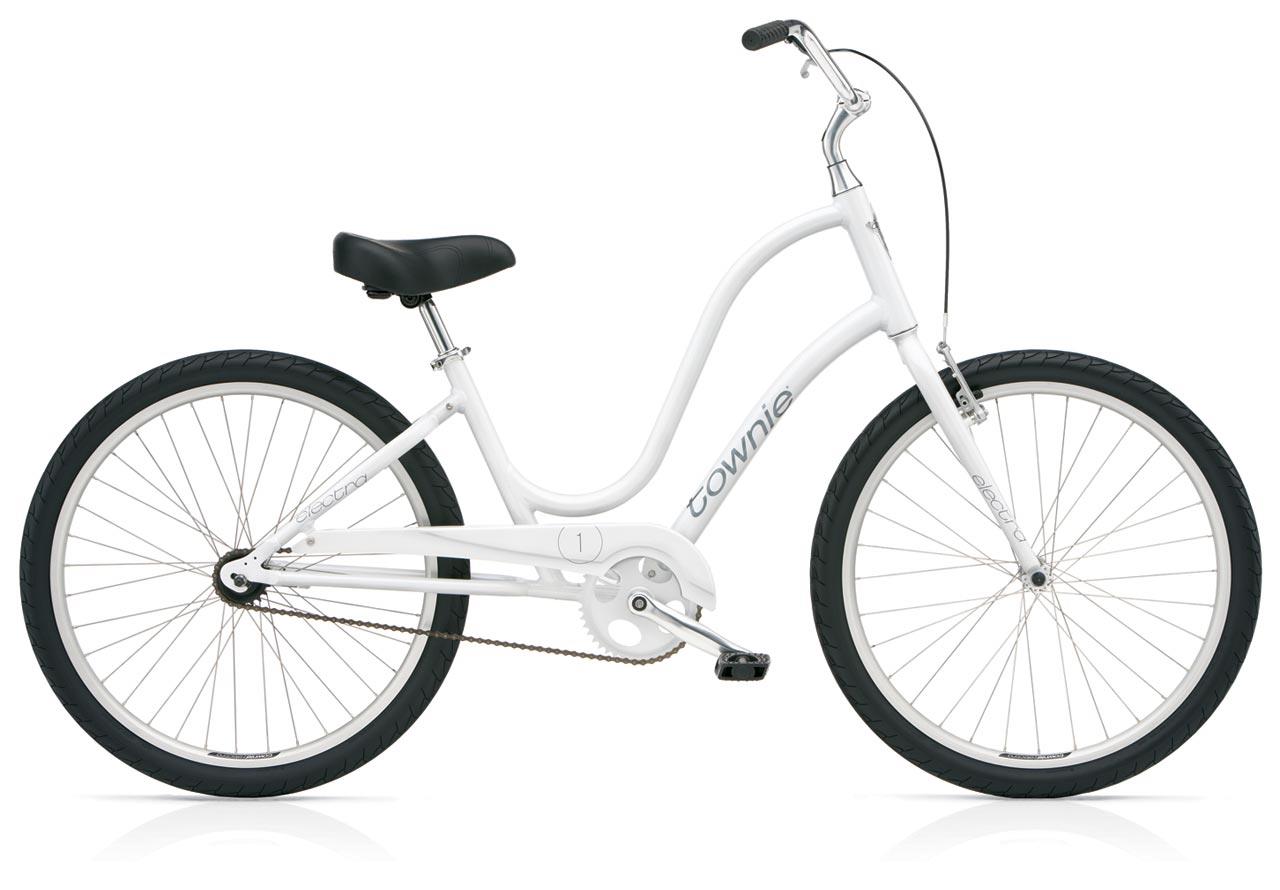

2009 Electra Townie Original 1 Ladies

Original specifications: Cruiser Mix drivetrain · 26" wheels.

Share owner experience

At a glance

Archive #18690

Model year: 2009
Category: Cruiser
Sizes: Womens one size fits all
Colors: White
In this record: 24 specifications · archived image

Model history 2 other years

Browse other years

Compare side by side

Identification clues

2009 archived details

Published colors: White
Frame: 6061-T6 aluminum
Original equipment: Cruiser Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build6061-T6 aluminum · Cruiser Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

1 item record

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

womens one size fits all

Published colors

White

View 1 archived size/color combination

Size	Color
womens one size fits all	White

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	TIG-welded
Frame Material	6061-T6 aluminum
Fork Material	Steel, unicrown crown

Drivetrain

Component Group	Cruiser Mix
Crankset	Forged Alloy, 44 teeth
Bottom Bracket	Sealed cartridge, 113mm spindle
BB Shell Width	68mm
Cassette	Shimano
Rear Cogs	1-speed, 20 teeth
Chain	KMC, 1/2 x 1/8"
Pedals	Resin platform w/non-slip inserts

Brakes

Brakes	Forged Alloy Linear Pull front/Shimano coaster brake rear brakes, Alloy 4 Finger reach adjust levers

Cockpit & Contact Points

Headset	1 1/8" Threaded
Handlebar	Alloy custom bend riser
Handlebar Extensions	Not included
Stem	Forged Alloy
Saddle	Ergonomic w/Soft Lycra
Seatpost	Alloy, 27.2mm diameter

Wheels & Tires

Hubs	Front: Alloy low flange, Rear: Shimano Coaster Brake
Rims	Alloy Double Wall, 32-hole/36-hole
Spokes	Stainless, 14ga. (2.0mm)
Spoke Nipples	Brass
Front Tire	26 x 2.00" Electra Semi-Slick
Wheel Size	26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

Pedal cadence

RPM

Speed units

RPM = pedal turns per minute.

Published build44T · 20T · 1-speed

Ratio2.20:1

Estimated speed At 90 RPM Gear15.3 mph

Uses front tire 26×2; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Seatpost · Original

Alloy

27.2mm diameter

Search Amazon Search eBay

Retailer offers

Race Face Ride XC Seatpost Black, 27.2x375mm

Replacement option

Competitive Cyclist ↗$38.99

Backcountry ↗$38.99

Front tire · Original

26 x 2.00" Electra Semi-Slick Replacement search: 26x2 bicycle tire Before ordering: Check rim type and tire clearance.

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 26 x 2.00" Electra Semi-Slick
Drivetrain: 1-speed
Seatpost diameter: 27.2 mm
Bottom bracket / shell: Sealed cartridge, 113mm spindle · 68mm

Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: · Steel, unicrown crown

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Drivetrain

Check drivetrain wear →

Archived: Group: Cruiser Mix · Crankset: Forged Alloy, 44 teeth · Bottom bracket: Sealed cartridge, 113mm spindle · Cassette: Shimano · Rear cogs: 1-speed, 20 teeth · Chain: KMC, 1/2 x 1/8"

Check chain tension and chainline, rotate the drivetrain through a full revolution and confirm the rear axle or tensioning hardware cannot slip.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Forged Alloy Linear Pull front/Shimano coaster brake rear brakes, Alloy 4 Finger reach adjust levers

Inspect pads, cables and housings, then examine both rim braking surfaces for concavity, cracking or heavy wear. Confirm each caliper returns and centers correctly.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 26" wheels · Rims: Alloy Double Wall, 32-hole/36-hole · Hubs: Front: Alloy low flange, Rear: Shimano Coaster Brake · Front tire: 26 x 2.00" Electra Semi-Slick

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Controls and contact points

Archived: Headset: 1 1/8" Threaded · Handlebar: Alloy custom bend riser · Stem: Forged Alloy · Seatpost: Alloy, 27.2mm diameter · Saddle: Ergonomic w/Soft Lycra · Pedals: Resin platform w/non-slip inserts

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
