2009 Electra RatRod Aluminum

Original specifications: Cruiser Mix drivetrain · 26" wheels.

Share owner experience

At a glance

Archive #18726

Model year: 2009
Category: Cruiser
Sizes: One size fits all
Colors: Black/Red/Gold
In this record: 23 specifications · archived image

Model history 1 other year

Browse other years

Compare side by side

Identification clues

2009 archived details

Published colors: Black/Red/Gold
Frame: 6061-T6 aluminum
Original equipment: Cruiser Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Original build6061-T6 aluminum · Cruiser Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

1 item record

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

one size fits all

Published colors

Black/Red/Gold

View 1 archived size/color combination

Size	Color
one size fits all	Black/Red/Gold

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame Construction	TIG-welded
Frame Material	6061-T6 aluminum
Fork Material	Steel, unicrown crown

Drivetrain

Component Group	Cruiser Mix
Shifters	Shimano Nexus
Crankset	Electra Ratrod OPC, 44 teeth
Bottom Bracket	Sealed cartridge
Cassette	Shimano
Rear Cogs	3-speed internal, 22 teeth
Chain	KMC 410
Pedals	Electra Deluxe Block

Brakes

Brakes	Shimano coaster brake rear

Cockpit & Contact Points

Headset	1" Threaded
Handlebar	Electra Bullhorn
Handlebar Extensions	Not included
Stem	Alloy
Saddle	Electra Custom Spring
Seatpost	Alloy Pillar

Wheels & Tires

Hubs	Front: Alloy, Rear: Shimano Nexus 3 speed Internal Gear with Coaster Brake
Rims	Alloy, 36-hole
Spokes	Stainless, 14ga. (2.0mm)
Front Tire	26 x 2.125" Electra Hotster
Wheel Size	26" wheels

Gearing

Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Gears Drivetrain

Front teeth Smallest rear teeth Largest rear teeth

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Rear tire marking

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

Rim diameter (BSD, mm) Tire width (mm)

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Cadence (RPM) Speed units

Gear, dimension and cadence changes update results automatically.

Gearing comparison
Measure	Original	Your setup
Lowest ratio	—	—
Highest ratio	—	—
Total range	—	—
Lowest-gear speed	—	—
Highest-gear speed	—	—

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Front tire · Original

26 x 2.125" Electra Hotster Replacement search: 26x2.125 bicycle tire Before ordering: Check rim type and tire clearance.

Search Amazon Search eBay

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire: 26 x 2.125" Electra Hotster
Drivetrain: 3-speed
Bottom bracket / shell: Sealed cartridge

Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Frame and fork

Inspect the frame and fork →

Archived: Frame: TIG-welded · Fork: · Steel, unicrown crown

Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.

Drivetrain

Check drivetrain wear →

Archived: Group: Cruiser Mix · Shifters: Shimano Nexus · Crankset: Electra Ratrod OPC, 44 teeth · Bottom bracket: Sealed cartridge · Cassette: Shimano · Rear cogs: 3-speed internal, 22 teeth · Chain: KMC 410

Shift the hub through its complete range using the correct procedure. Check cable or electronic actuation, axle security, hub-shell condition and any sign of lubricant leakage.
Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Brakes

Inspect the brakes →

Archived: Brakes: Shimano coaster brake rear

Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Wheels and tires

Check wheels and tires →

Archived: Wheel size: 26" wheels · Rims: Alloy, 36-hole · Hubs: Front: Alloy, Rear: Shimano Nexus 3 speed Internal Gear with Coaster Brake · Front tire: 26 x 2.125" Electra Hotster

Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Controls and contact points

Archived: Headset: 1" Threaded · Handlebar: Electra Bullhorn · Stem: Alloy · Seatpost: Alloy Pillar · Saddle: Electra Custom Spring · Pedals: Electra Deluxe Block

Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.

This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.

Display name Required Email address Required · private Ownership Required When or how long you owned it Required Frame size Required Primary type of riding Required Rider height Optional

Overall owner experience Required · at least 120 characters0 of 120 minimum characters Would you own one again? Optional

Add fit, maintenance and buyer detailsOptional · five additional fields

Fit and sizing observations Optional Long-term strengths Optional Problems or recurring maintenance Optional Parts replaced or upgraded Optional What a used buyer should inspect Optional

Your contribution goes directly to Velopedia’s private review queue. We’ll email an optional confirmation link plus a private edit and withdrawal link, but you do not need to confirm your email before an administrator can review or approve the submission.

Already contributed? Send me a fresh private edit link

For privacy, Velopedia shows the same confirmation whether or not an experience exists.

Checking current listings…

Find this bike on eBay

Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.

Search 2009 model Search all years

Campaign

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.

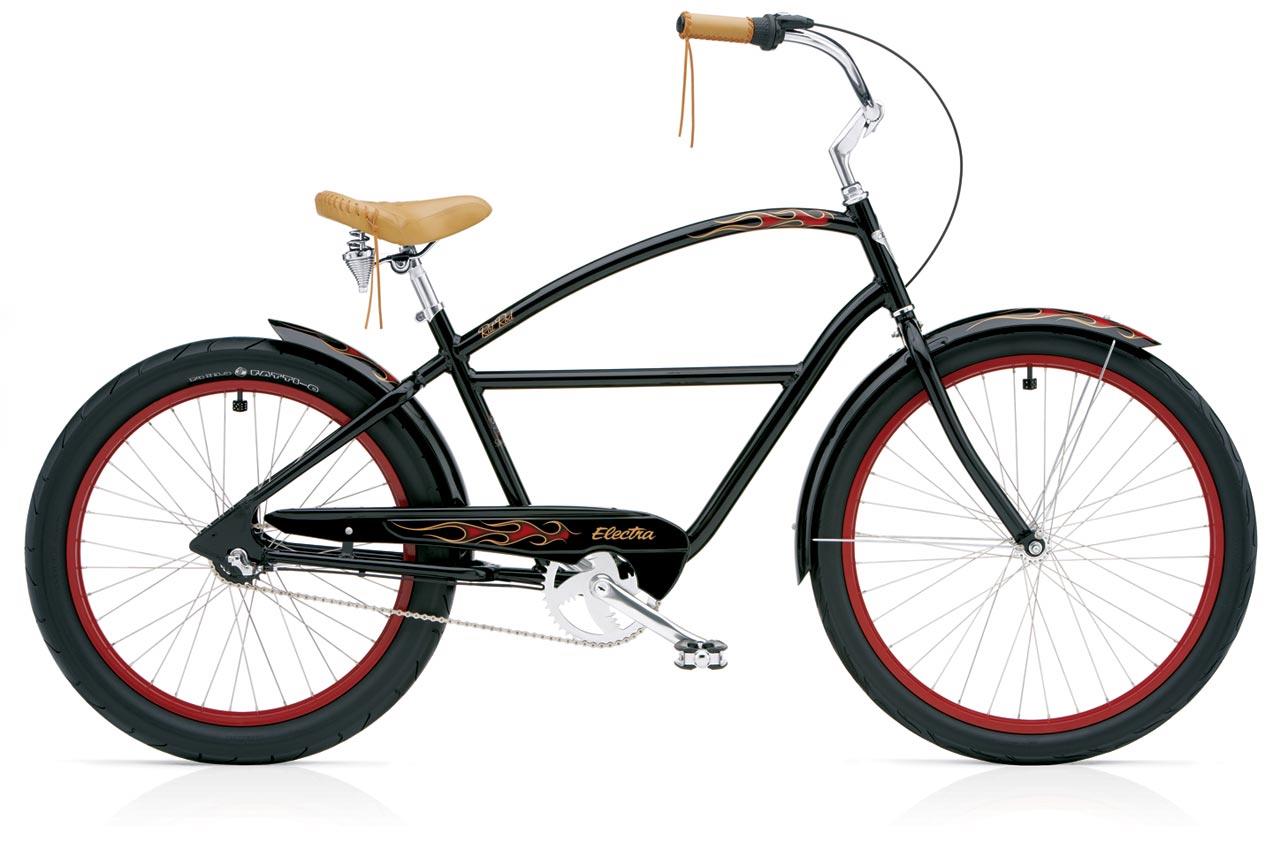

2009 Electra RatRod Aluminum
