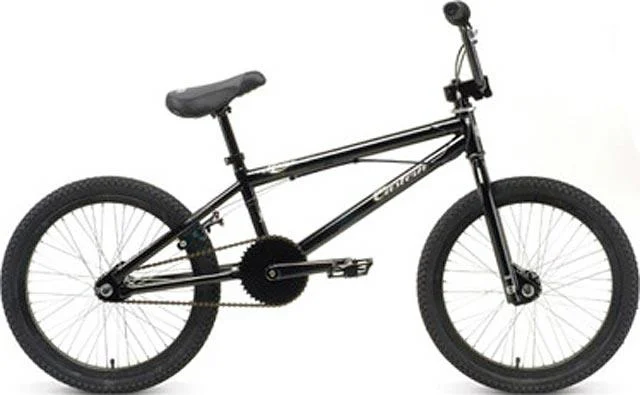

2006 Eastern Bikes Atom Jane
Freestyle/jumping bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Archive ID
- 11168
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|
| Frame Material | Chromoly |
|---|
| Fork | Eastern Atom |
|---|
| Fork Material | Chromoly, unicrown crown |
|---|
| Rear Shock | N/A |
|---|
Drivetrain
| Component Group | N/A |
|---|
| Shifters | N/A |
|---|
| Front Derailleur | N/A |
|---|
| Rear Derailleur | N/A |
|---|
| Crankset | Eastern Electron chromoly 3-piece, 25 teeth |
|---|
| Bottom Bracket | Sealed |
|---|
| Rear Cogs | 1-speed, 9 teeth |
|---|
| Chain | KMC Z410 |
|---|
| Pedals | Wellgo DX Style |
|---|
Brakes
| Brakes | Tektro Alloy U-brake rear brakes, Tektro rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated internal |
|---|
| Handlebar | 2-piece |
|---|
| Handlebar Extensions | N/A |
|---|
| Stem | Eastern Atom |
|---|
| Saddle | Eastern |
|---|
| Seatpost | Chromoly micro-adjust |
|---|
Wheels & Tires
| Hubs | Eastern Pro 14mm |
|---|
| Rims | Aluminum double-wall, 48-hole |
|---|
| Spokes | 14ga. (2.0mm) straight gauge |
|---|
| Spoke Nipples | Brass nipples |
|---|
| Front Tire | Front: 20 x 2.125" Kenda K-Rad, Rear: 20 x 1.95" Kenda K-Rad |
|---|
| Wheel Size | 20" wheels |
|---|
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
